© 2011, Moog Videolarm, Inc. All Rights Reserved

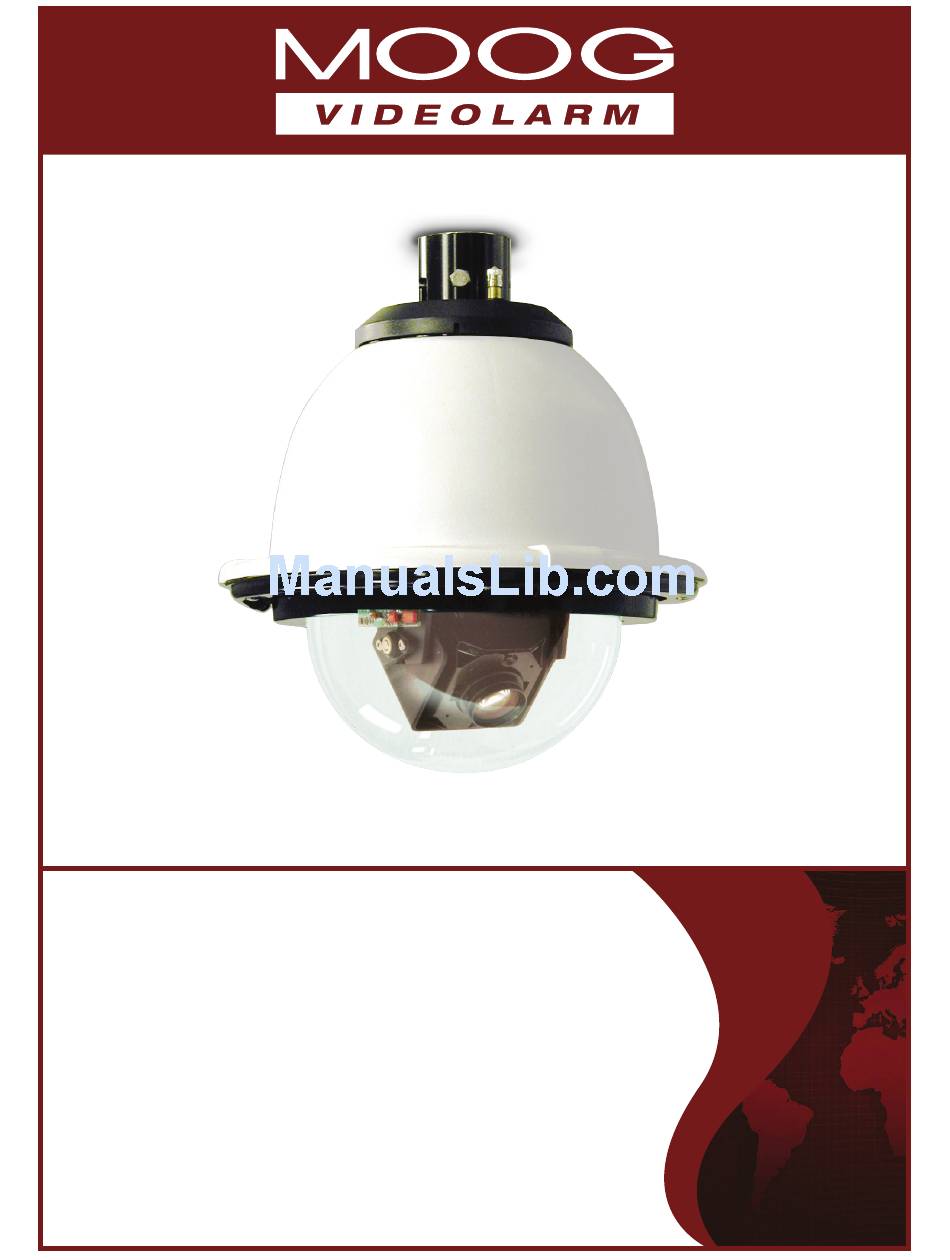

P F D 7 C N - 3
SView™ Outdoor Pressurized FusionDome™
Installation and Operation Instructions for the following models:
PFD7CN-3
IP Network Ready 7" Pressurized Outdoor PTZ Camera System with
23x zoom compression, full D1. Clear dome, with 24Vac input,
heater/blower
PFD7CS-3
(Analog version)
IP Network Ready 7" Pressurized Outdoor PTZ Camera System with
23x zoom compression, full D1. Clear dome, with 24Vac input,
heater/blower
Before attempting to connect or operate this product, please read these instructions completely.
www.videolarm.com
81-IN5382
01-24-2012
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moog Videolarm SView PFD7CN-3
Summary of Contents for Moog Videolarm SView PFD7CN-3
- Page 1 © 2011, Moog Videolarm, Inc. All Rights Reserved P F D 7 C N - 3 SView™ Outdoor Pressurized FusionDome™ www.videolarm.com Installation and Operation Instructions for the following models: PFD7CN-3 IP Network Ready 7” Pressurized Outdoor PTZ Camera System with 23x zoom compression, full D1. Clear dome, with 24Vac input, heater/blower PFD7CS-3 (Analog version) IP Network Ready 7” Pressurized Outdoor PTZ Camera System with 23x zoom compression, full D1. Clear dome, with 24Vac input, heater/blower 81-IN5382 01-24-2012...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK). -
Page 3: Terms And Conditions
If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period. -
Page 4: Electrical Specifications
Contents of Box Electrical Specifications Power 24VAC PFD7CN-3 Class 2 Only PFD7CS-3 24 VAC 3.3 Amps Total Power: 80 Watts Accessories: Heater: 50 Watts/Blower: 2 Watts Camera Power: 28 Watts Tools Required: .100” Flat Head Screwdriver English Phillips Head Screwdriver 7/16”... - Page 5 SOLD SEPARATELY SOLD SEPARATELY Wrap Teflon tape around the pipe threads Securely mount bracket to wall. Pull wiring to ensure a tight seal. through bracket and position grommet as shown. • Con seguridad soporte del montaje a emparedar. Tire del cableado •...
- Page 6 SOLD SEPARATELY SOLD SEPARATELY Loop the lanyard over the set screw to Make the appropriate wiring connections temporarily hold housing. from the dome to the pendant. • Coloque el acollador sobre el tornillo de presión para • Hacer las conexiones de cableado de la cúpula de la celebrar temporalmente la cubierta.
- Page 7 Wire as shown below for analog Wire as shown below for IP models: (PFD7CS-9; PFD7TS-9) models:(PFD7CN-9; PFD7TN-9) RJ45 RJ45 24VAC SNC-RZ50/SNC-RZ30 24VAC Camera/Heater/Blower Yellow SNC-RZ50/SNC-RZ30 13 Watts Camera/Heater/Blower Yellow Camera/Heater/Blower Green 28 Watts Green Camera/Heater/Blower 52 Watts 52 Watts RS-485RX A Blue Alarm 1 Blue...
-
Page 8: Captive Screw
CAPTIVE SCREW To install the dome align the tabs and twist To secure in place, tighten captive screw. counter clockwise to secure. • Para instalar la bóveda alinee las lengüetas y tuerza al revés • Para asegurar en lugar, apriete el tornillo prisionero. a la derecha para asegurar. - Page 9 Air Chuck Tank Valve Place the air chuck on the tank valve and Open the relief valve. Drain all air from the housing and 3 times to remove all moisture. begin filling until pressure relief valve opens. • • Abra la válvula de descarga. Drene todo el aire de la cubierta y Coloque la tirada del aire en la válvula del tanque y comience de la repetición 3 times dos veces para quitar toda la humedad.
-
Page 11: Product Registration/Warranty
Product Registration/Warranty Thank you for choosing Moog Videolarm. We value your patronage and are solely committed to providing you with the highest quality products available and superior customer service. Should a problem arise, rest assure that Moog Videolarm stands behind its products by offering impressive warranty plans: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on camera systems (SView, QView, Warriors), and InfraRed Illuminators. Register Your Products Online Take a few moments and validate your purchase via the Online Product Registration Form at www.videolarm.com/productregistration.jsp Register your recent Moog Videolarm purchases and benefit from the following: • Simple and Trouble-Free RMA process • Added into customer database to receive product updates / news • Eliminate the need to archive original purchase documents: Receipts, Purchase Orders, etc…...
