Outdoor / Indoor (PTZ) Housings:
The FDW75C2N is a IP network ready 7" outdoor dome housing with wall mount,
clear polycarbonate dome, with 24VAC input, heater/blower, for an IP network PTZ
camera, 120 to 24VAC transformer.
IFDP75TN is a indoor dome housing with pendant mount, tinted dome, for an IP
network PTZ camera, no electronics.
FDW75C12N is a 12VDC version of the FDW75C2N
Compatible Cameras:
To view the latest listing of compatible cameras please visit
www.videolarm.com/thirdparty.jsp
PTZ:
ACM-8201/8211,ACM-8511, CAM-6510
213, 214, 215, 232D+, 233D
VB-C10, VB-C300, VB-C50i,
VB-C60, VC-C50i
PTC-200C, PTC-400C, PTC-401C IP
IK-WB21A
SND-3080, SND-5080, SND-560
SNP-3301/3370, SNP-1000A
2564
FIXED COMPATIBLE CAMERAS ALSO AVAILABLE

SPECIFICATIONS:

Mechanical Specifications
Size (h*w*d):
Weight:
Construction TOP:
Construction DOME:
Mount Bracket:
Electrical Specifications
Power Requirements:
Dome 24VAC model:
Dome 12VDC model:
Environmental Specifications
Operating Temperature:
Shipping Specifications
MODEL SHIPPING WEIGHT
FDW75 110 lbs (49.9 kg)
500-672 + 09-03-2010
CAN
iCanView 250/252
I T E K
VN-C625U, VN-V685U,
VN-C655U, VN-V686BU,
VN-V686U
WV-NS202A, WV-NF284
WV-NS202A,WV-NS954
WV-NF302 , WV-NW502S
WV-SF336, KX-HCM180
SNC-RH124, SNC-RS44/46,
SNC-RX530/550/570
SNC-RZ25, SNC-RZ30,
SNC-RZ50
For detailed list see web site****
14.7" x 8.2" x 14.5" (374 x 208 x 369mm)
11 lbs (5kg)
3mm engineered plastic
Polycarbonate
Machined & cast aluminum
24VAC 55W (Heater/Blower 27W)
12VDC, 50W
(includes 20W for heater)
-20° F to 120° F (-29° C to + 49° C)
BOX DIMENSIONS
17 x 14 x 17 (431.8 x 355.6 x 431.8 mm)
Moog Videolarm, 2525 Park Central Boulevard, Decatur, GA 30035 USA + 1.800.554.1124 www.videolarm.com
© 2009-2010, Moog Videolarm, Inc. All Rights Reserved
Product and company names listed are trademarks or trade names of their respective companies.
Outdoor / Indoor (Fixed) Housings:
The FDW75F2N is a IP network ready 7" outdoor dome housing with wall mount,
clear polycarbonate dome, with 24VAC input, heater/blower, for an IP fixed
camera, 120 to 24VAC transformer.
IFDP75TF is a indoor dome housing with pendant mount, tinted dome, for an IP
network fixed camera, no electronics
Accessories:
PRM50G APM3
Heavy-duty aluminum Aluminum pole
parapet mount bracket mount bracket with
with 20" extension, female inserts
includes 1 1/2" NPT
Tinted and Clear domes available specify "C" for Clear or "T" for Tinted
Wall Mounts and Pendant Mounts available specify "W" for
Wall Mount or "P" for Pendant Mount

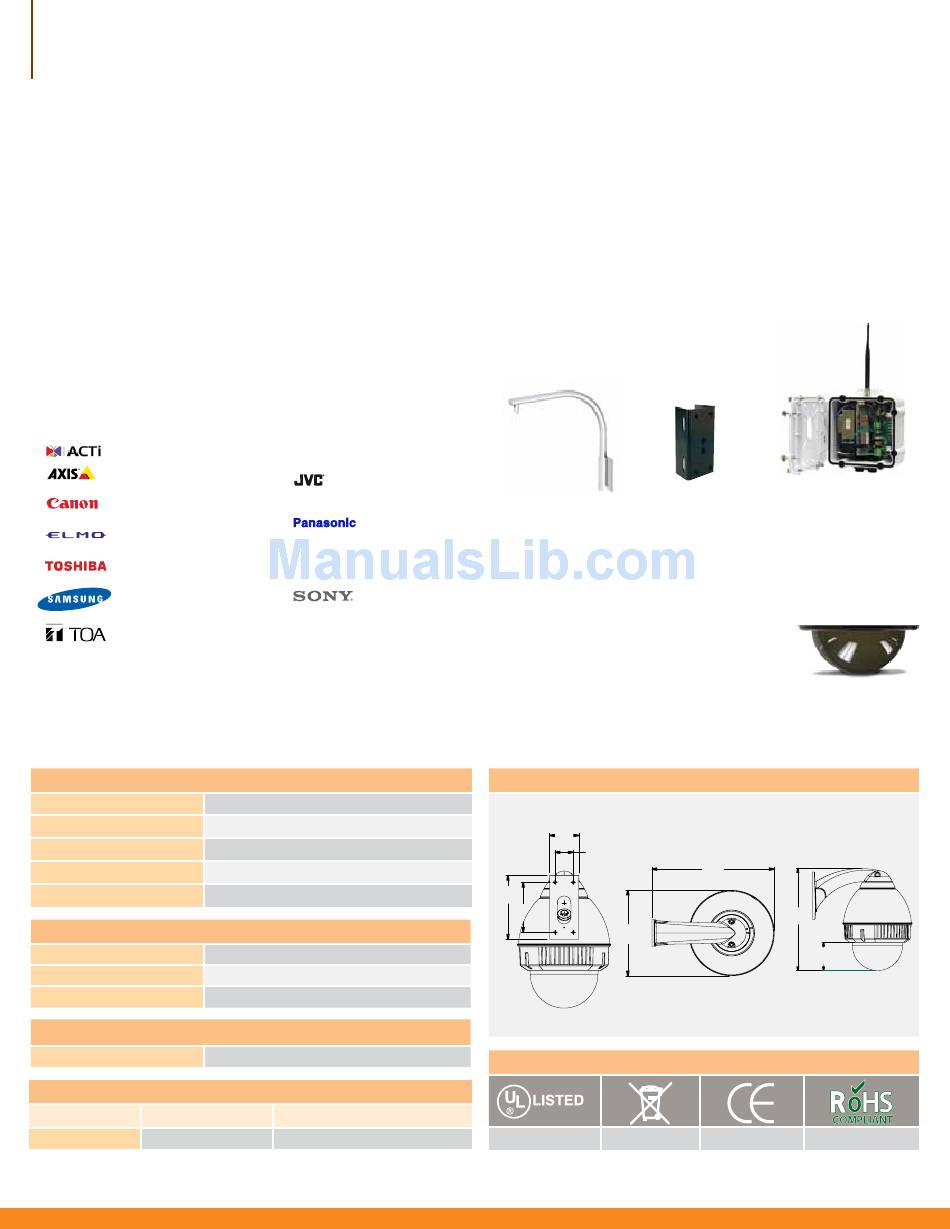

Dimensions / Architectural Drawings
3.19
(80.9)
7.00
(177.8)
5.50
(139.7)
10.27
(260.9)
Certifications and Ratings
UL Listed WEEE
PB24L
Rugged outdoor wireless
box, 220/110VAC input and
24VAC output for camera
14.65
(372.1)
15.03
(381.7)
4.16
(105.6)
Dimensions are in inches
CE RoHS
