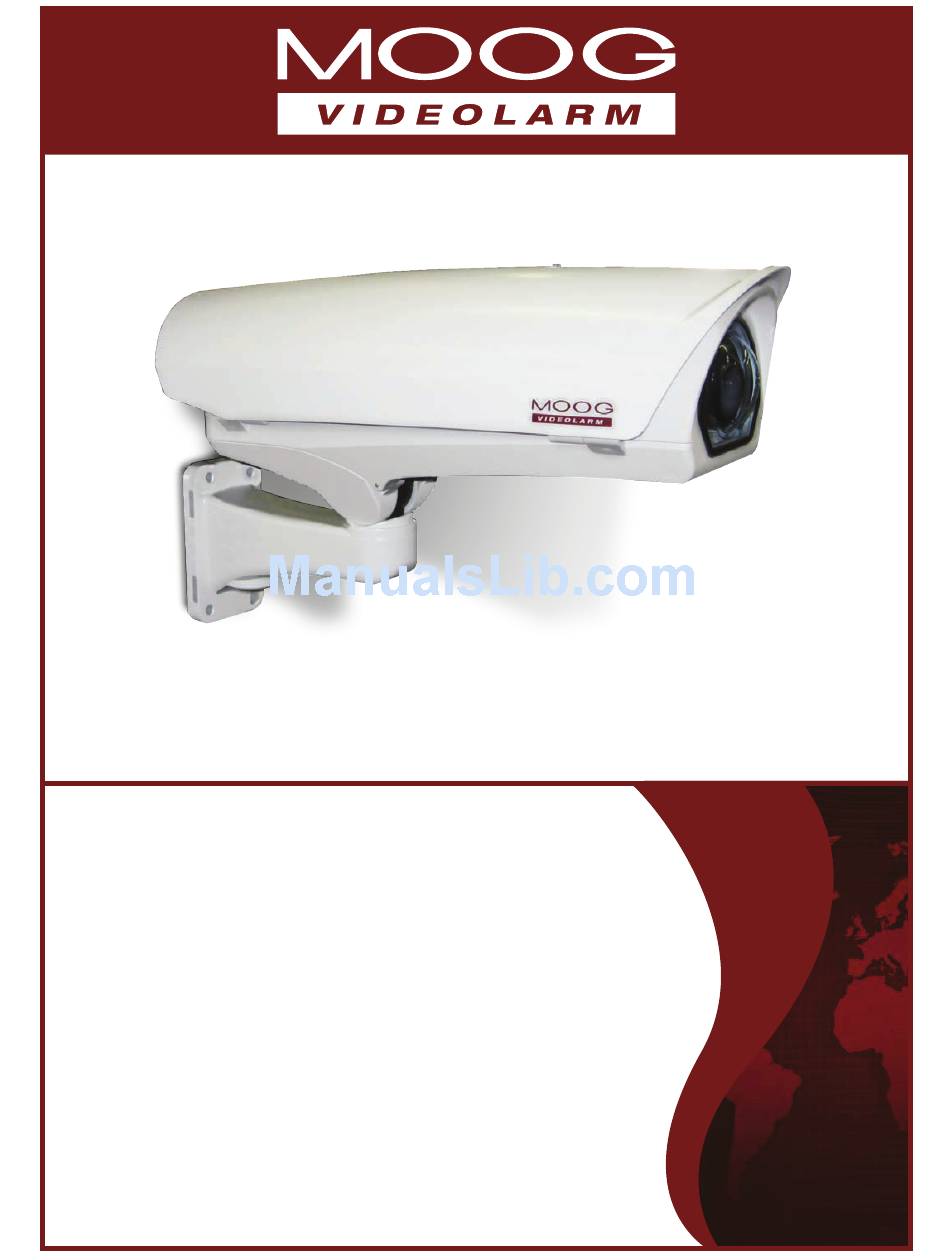

© 2013, Moog Videolarm, Inc. All Rights Reserved
F C H 3 6 0

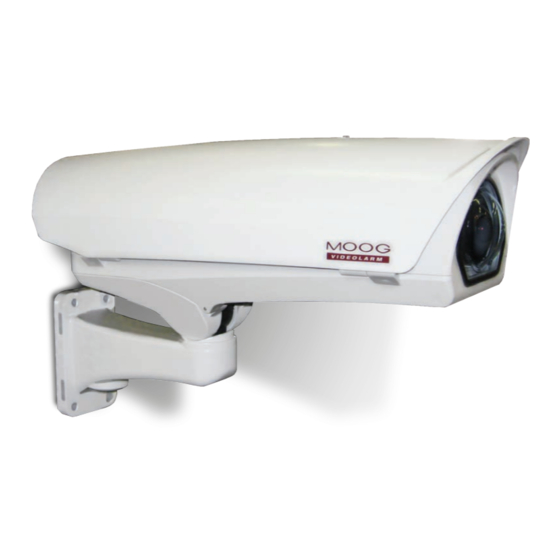

Fusion Camera Housing with Panomorph Lens Options
Installation and Operation Instructions for the following models:
FCH360CW
Environmental housing with feed-thru wall/pole mount with 360 viewing window
FCH360C2W
Environmental housing with feed-thru wall/pole mount, 24Vac or 12Vdc input,
360 viewing window, heater & blower
FCH360C2WY
Environmental housing with feed-thru wall/pole mount, 24Vac or 12Vdc input,
heater & blower, 360 viewing window, adjustable sunshield
FCH360C8WY
Environmental housing with feed-thru wall/pole mount, dynamic power allocation
PoE input, 30 watt midspan included, heater & blower, supports .at PoE cameras,
360 viewing window, adjustable sunshield
Before attempting to connect or operate this product, please read these instructions completely.
www.moogvideolarm.com
81-IN5507
01-18-2013
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moog Videolarm FCH360C2W
Summary of Contents for Moog Videolarm FCH360C2W
- Page 1 © 2013, Moog Videolarm, Inc. All Rights Reserved F C H 3 6 0 Fusion Camera Housing with Panomorph Lens Options www.moogvideolarm.com Installation and Operation Instructions for the following models: FCH360CW Environmental housing with feed-thru wall/pole mount with 360 viewing window FCH360C2W Environmental housing with feed-thru wall/pole mount, 24Vac or 12Vdc input, 360 viewing window, heater & blower FCH360C2WY Environmental housing with feed-thru wall/pole mount, 24Vac or 12Vdc input, heater & blower, 360 viewing window, adjustable sunshield FCH360C8WY Environmental housing with feed-thru wall/pole mount, dynamic power allocation PoE input, 30 watt midspan included, heater & blower, supports .at PoE cameras,...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK). -
Page 3: Terms And Conditions
If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period. -
Page 4: Electrical Specifications
Contents of Box FCH360 Series Power 24Vac / 12Vdc Class 2 Only OUTDOOR and PoE MODELS: FCH360C2W / FCH360C2WY / FCH360C8WY 24Vac: 17 watts Heater (16 watts), Blower (1 watt) 12Vdc: 7 watts Heater (6 watts), Blower (1 watt) PoE: IEEE802.at... -
Page 5: Wall Mounting
N O T E : T H E F O L L O W I N G I N S T R U C T I O N S M A I N LY S H O W T H E F C H 3 6 0 C W, B U T T H E S E I N S T R U C T I O N S A R E A P P L I C A B L E T O A L L F C H 3 6 0 M O D E L S . - Page 6 * Max Strap Width: 0.75” Hinge housing away from mount by loosening (2) Attach mount to pole with suitable hardware rear screws. (not provided). • Abisagre la cubierta lejos del montaje aflojando (2) los tornillos • Ate el montaje al poste con el hardware conveniente (no proporcionado). posteriores.
- Page 7 Pass cables through wiring membranes Hinge the housing closed and tighten (2) rear screws. (use screwdriver to pierce). • Abisagre la cubierta cerrada y apriete (2) los tornillos posteriores. • Pase los cables a través de las membranas del cableado (el destornillador del uso a perforar) .
-
Page 8: Input Power
- ALIGN LENS - Spacer - TOP VIEW- Detail Mount camera with ¼-20 hardware. Position the lens as shown and center with the spacers as needed, con rm tabs are securely snapped into place. NOTE: Take care not to scratch dome with lens case. •... -
Page 9: Section A: 24Vac Input For 24Vac Camera
SECTION A: 24Vac Input for 24Vac Camera - Terminate power and data lines. SHUNTS - Install shunts on “24Vac” jumpers as shown. - Power output to camera will be 24Vac. • Termine las líneas de la energía y de datos. - Instale la desviación en el puente “24Vac”... -
Page 10: Section C: 12Vac Input For 12Vdc Camera
SECTION C: 12Vac Input for 12Vdc Camera - Terminate incoming 24Vac on board. - Shunts should be installed on 24Vac jumpers. - Terminate the 12Vdc leads (coming from power supply mounted on husing lid) into corresponding terminals on camera. • Terminar 24Vac entrantes a bordo. - Las derivaciones se deben instalar en los puentes de 24 VAC. - Page 11 Connect the network cable from the midspan to the connector that is labeled “To Network” connect the camera to the connector labeled “To Camera”. When power is applied the “Heat” LED will turn ON for 5 seconds. 60 seconds the blower will start.
- Page 12 Hex tool Adjust the aim of the housing by loosening the After powering your system up, make necessary screw on the mount arm. focus and camera adjustments. • Después de accionar su sistema para arriba, haga los ajustes • Ajuste la puntería de la cubierta aflojando el tornillo en el brazo necesarios del foco y de la cámara.
- Page 13 Wire Gauge Total vA consumed 1300 36.5 54.9 91.4 1440 27.1 43.0 68.6 19.8 27.4 39.6 68.6 13.4 21.3 34.1 54.6 86.9 10.6 17.1 27.4 43.6 69.5 14.3 22.9 36.2 57.9 91.7 12.2 19.5 31.1 49.7 78.6 10.3 16.8 25.9 42.7 65.5 If your housing has a sunshield, adjust it for your...
-
Page 14: Replacement Parts
Replacement Parts FCH11 Part Number Description RPVL3948 FCH Camera Tray RPVL3950 FCH Heater + Bracket RP76VL2016 FCH 12VDC/24VAC PCB RPFD080 12VDC 40mm Fan RPVL3953 Cable Membrane (0.60" hole) RPFTM2425G FCH Wall Mount Assembly RPFCH11HP FCH Hardware Packet RP71VLBL09 Outdoor Rated Fan (Thermiq only) RP76VL2018 FCHQ 12VDC/24VAC PCB RP76VL2023... -
Page 15: Product Registration/Warranty
Product Registration/Warranty Thank you for choosing Moog Videolarm. We value your patronage and are solely committed to providing you with the highest quality products available and superior customer service. Should a problem arise, rest assured that Moog Videolarm stands behind its products by offering impressive 3 Year and 5 Year warranties, depending on the product purchased. See full warranty details at www.moogvideolarm.com/technical-support/warranty-plan/ Register Your Products Online Please take a few moments to register your purchase via the Online Product Registration Form at: www.moogvideolarm.com/technical-support/product-registration Register your recent Moog Videolarm purchase and benefit from the following: • Simple and Trouble-Free RMA process • Receive product updates, and special promotion • Eliminate the need to archive original purchase documents: Receipts, Purchase Orders, etc…...
