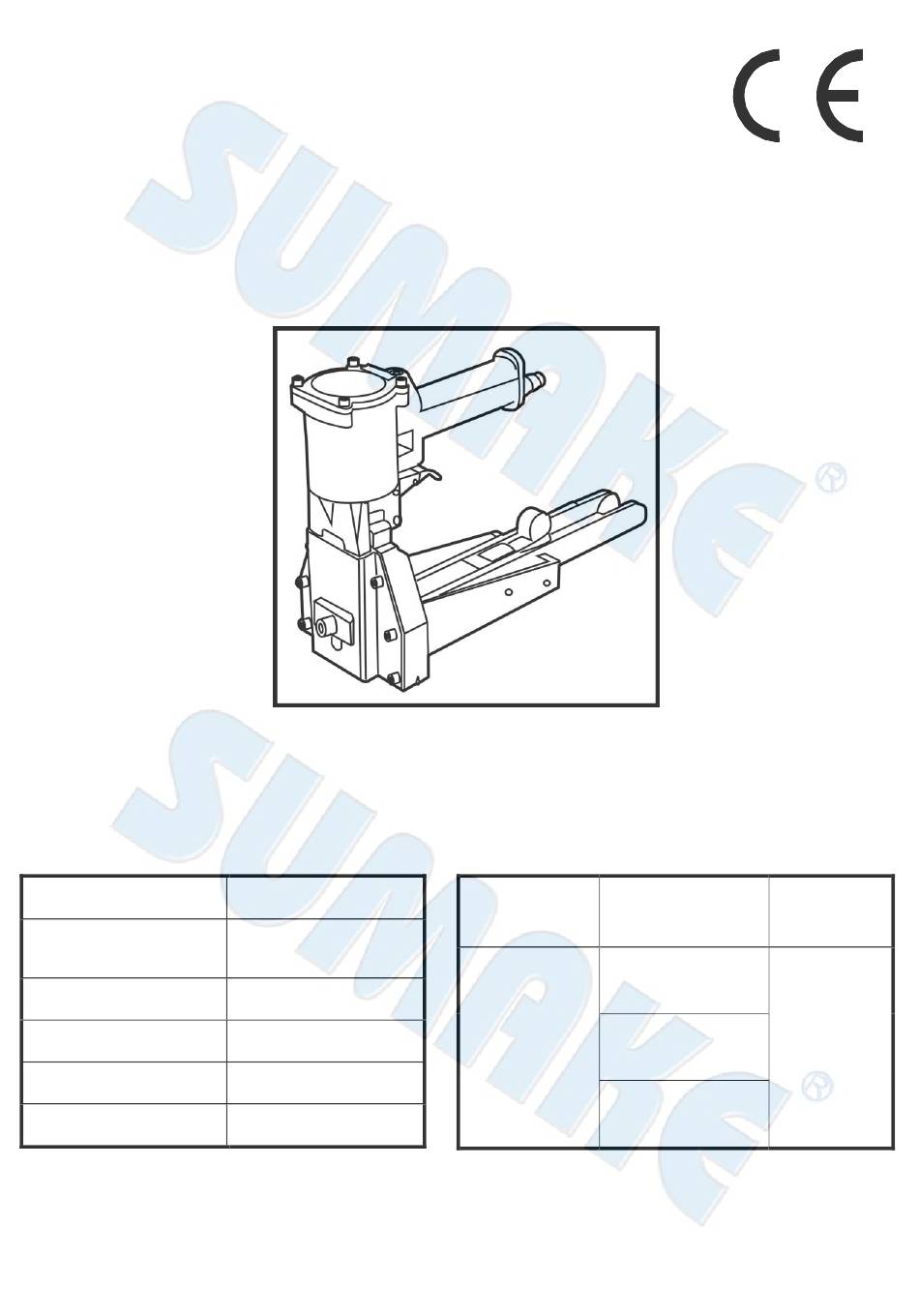

SUMAKE
Specification:
Fastener Nail Crown
Fastener Nail Length
Tool Length
Air Pressure
Tool Weight
Load Capacity
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
Air Drive Carton Stapler
CS-3510
34.7mm
15mm, 18mm
(5/8", 7/10")
340x120x225mm
5 ~ 7bar (75 ~ 100 psi)
2.484 kg (5.48 lbs)
100 pcs
Noise and Vibration:
Vibration
ISO 8662-11:1999
Sound Pressure Level
No Load:
1.3 m/s²
Sound power level
load: 100 dB(A)
Uncertainty
²
K= 1.5 m/s
Noise
EN 12549:1999
Remark
EN ISO 4871
Please always
load: 89 dB(A)
wear ear
protector at
environment
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
hearing!
K= 3dB
CS-3510-S-2002A-CJF
Advertisement
Table of Contents
Related Manuals for Sumake CS-3510
Summary of Contents for Sumake CS-3510
- Page 1 > 80 dB(A) due to Tool Weight 2.484 kg (5.48 lbs) risk of impaired Uncertainty Uncertainty hearing! ² K= 1.5 m/s K= 3dB Load Capacity 100 pcs SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 CS-3510-S-2002A-CJF...
- Page 2 INSTRUCTION MANUAL CS-3210, CS-3410 ITEM NO.: CS-3510, CS-3511, CS-3520, CS-3521 AIR DRIVE CARTON STAPLER WARNING! Before operating this stapler. All operators should study this manual, to understand and follow the safety warnings and instructions. Keep these instructions with the stapler for future reference. If you have any question, contact your distributor.
-
Page 3: Table Of Contents
TABLE OF CONTENTS PAGE TOOL SPECIFICATIONS ................... 3 SAFETY INSTRUCTIONS ..................4 LUBRICATION AND MAINTENANCE ................ 5 AIR SUPPLY AND CONNECTIONS ................5 LOADING THE TOOL ....................6 CHECK STAPLE LEG LENGTH ................. 7 CLINCH ADJUSTMENT ..................... 8 DEPTH ADJUSTMENT ....................8 OPERATING THE TOOL .................... -
Page 4: Tool Specifications
TOOL SPECIFICATIONS MODEL OF TOOL ..............DIMENSIONS （LENGTH x HEIGHT x WIDTH） ....340MM x 220MM x 150MM WEIGHT （WITHOUT FASTENERS） ......... 2.65 KGS WEIGHT （WITHOUT FASTENERS） ......... 1/4” NPT COMPRESSED AIR： MAXIMUM PERMISSIBLE OPERATING PRESSURE ... 8 KG/Cm – 7 KG/Cm RECOMMENDED OPERATING PRESSURE ...... -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS DANGER 1. READ THIS MANUAL AND UNDERSTAND ALL SAFETY INSTRUCTIONS BERORE OPERATING THE TOOL . IF YOU HAVE ANY QUESTIONS , PLEASE CONTACT OUR AUTHORIZED REPRESENTATIVES. 2. NEVER ALLOW TO USE TYPE OF FLAMMABLE GASES OXYGEN AS A POWER SOURCE FOR THE TOOL . -
Page 6: Lubrication And Maintenance
LUBRICATION AND MAINTENANCE NOTE YOUR TOOL REQUIRES LUBRICATION BEFORE YOU USE IT FOR THE FIRST TIME . DISCONNECT THE AIR SUPPLY FROM THE TOOL BEFORE LUBRICATING . TURN THE TOOL SO THE INLET IS FACING UP AND PUT ONE DROP OF HIGH SPEED SPINDLE OIL , UNOCAL RX22 , OR 3-IN-1 OIL INTO AIR INLET . -
Page 7: Loading The Tool
LOADING THE TOOL DISCONNECT THE AIR SUPPLY. PULL PUSHER （032） BACK UNTIL IT STOPS ON PUSHER PIVOTS （037）THEN ROTATE PUSHER（032）TO POSITION INSERT 2 STICKS OF APPROPRIATE STAPLES INTO THE MAGAZINE（029）FROM BACK . LET THE STICKS SLIDE FORWARD TO THE FRONT OF THE MAGAZINE（029） PULL PUSHER（032）BACK TO UPRIGHT POSITION AND GENTLY LET THE PUSHER（032）SLIDE FORWARD AGAINST THE STAPLES . -
Page 8: Check Staple Leg Length
CHECK STAPLE LEG LENGTH NOTE：DISCONNECT THE AIR SUPPLY LOOSEN SET SCREW（526）WITH 3 ㎜ HEXAGON WRENCH KEY . TURN ADJUSTING ROD（018）180° WITH A SCREW DRIVER TO THE DESIRED ADJUSTMENT . IF WANT TO SHOOT LONG LEG STAPLES . LET“L”ON ADJUSTING ROD（018）UP . IF WANT TO SHOOT SHORT LEG STAPLES . -
Page 9: Clinch Adjustment
CLINCH ADJUSTMENT NOTE：DISCONNECT THE AIR SUPPLY USE ROD（DIA 3 ㎜）OR 2.5 ㎜ HEXAGON WRENCH KEY . TURN COLLAR（006）THROUGH WINDOW CLOCKWISE TO CHINCH . NOTE：REMOVE ADJUDTING TOOL AFTER ADJUSTMENT IS MADE . DEPTH ADJUSTMENT NOTE：DISCONNECT THE AIR SUPPLY LOOSEN FRONT SCREW（527）WITH 6 ㎜ HEXAGON WRENCH KEY . PUSH THE BODY（007）UP AND ADJUST TO DESIRED DEPTH . -
Page 10: Operating The Tool
OPERATING THE TOOL PROTECT YOUR EYES AND EARS . WEAR SAFETY GLASSES WITH SIDE WARNIN SHIELDS . WEAR HEARING PROTECTION . EMPLOYERS AND USERS ARE RESPONSIBLE FOR ENSURING THE USER OR ANYONE NEAR THE TOOL WEAR THIS SAFETY PROTCETION TO PREVENT ACCIDENTAL INJURIES：NEVER , PLACE A HAND OR ANY WARNIN OTHER PART OF BODY IN STAPLE CLINCHING AREA OR ADJUSTMENT WINDOW . -
Page 11: Cleaning The Tool
GRASP HANDLE WITH ONE HAND POSITION ON BOX IN LINE WITH THE DESIRED STAPLE LOCATION . THERE IS A SMALL PROJECTION EITHER SIDE OF THE MAGAZINE SEAT（028）AS AN AID IN LOCATING THE POSITION OF THE STAPLE .（011） STRONGEST CLOSURE REQUIRES END STAPLES CLOSE TO END OF BOX . -
Page 12: Clearing A Jam From The Tool
CLEARING A JAM FROM THE TOOL DISCONNECT THE AIR SUPPLY . PULL PUSHER（032）BACK AND ROTATE TO LOCKED POSITION . TAKE OFF THE STAPLES IN THE MAGAZINE (029). RELEASE MAGAZINE UNIT (029), WITH FLAT HEAD SCREW DRIVER, THEN CLEAR JAM. REASSEMBLE MAGAZINE UNIT (029). -
Page 13: Trouble Shooting
TROUBLE SHOOTING WARNING STOP USING THE TOOL IMMEDIATELY IF ANY OF THE FOLLOWING PROBLEMS OCCUR . SERIOUS PERSONAL INJURY COULD OCCUR . ANY REPAIRS OR REPLACEMENTS MUST BE DONE BY A QUALIFIED PERSON OR AN AUTHORIZED SERVICE CENTER ONLY . PROBLEM CAUSE REMEDY... -
Page 14: Teeth Replacment
TEETH REPLACEMENT NOTE：DISCONNECT THE AIR SUPPLY TAKE OFF THE MAGAZINE UNIT (029) WITH FLAT HEAD SCREW DRIVER. LOOSEN SCREWS (530) WITH 4mm HEXAGON WRENCH KEY. REMOVE THE MAGAZINE SEAT (028). LOOSEN SCREWS (532) WITH 3 mm HEXAGON WRENCH KEY. CHANGE TEETH ONE AT A TIME TO PREVENT REVERSING TEETH. -
Page 15: Driver Replacement
DRIVER REPLACEMENT NOTE：DISCONNECT THE AIR SUPPLY TAKE OFF THE MAGAZINE UNIT (029) WITH FLAT HEAD SCREW DRIVER. LOOSEN SCREWS (530) WITH 4 mm HEXAGON WRENCH KEY. REMOVE THE MAGAZINE SEAT (028). LOOSEN SET SCREW（526）WITH 3 ㎜ HEXAGON WRENCH KEY TO UNLOCK ADJUSTING ROD（018）. -
Page 16: Pusher Spring Replacement
PUSHER SPRING REPLACEMENT TAKE OFF THE MAGAZINE UNIT (029) WITH FLAT HEAD SCREW DRIVER LOOSEN SCREW（539） AND NUT（538） WITH 2.5 ㎜ HEXAGON WRENCH KEY AND 7 ㎜ SOCKET WRENCH . LOOSEN ROD（037）WITH 6 ㎜ OFFSET WRENCH REMOVE PUSHER GUIDES （038）. REMOVE PUSHER（032） REMOVE SPRING PIN （545）... -
Page 17: Valve's And Tube's O-Rings Replacement
VALVE’S AND TUBE’S O-RINGS REPLACEMENT LOOSEN SCREWS（513）WITH FLAT SCREW DRIVER . REMOVE SPRING（012）WITH A LONG NOSE PLIER. REMOVE C-RING（546）WITH A C-RING PLIER. REMOVE VALVE（016）AND TUBE（017）WITH A LONG NOSE PLIER. -
Page 18: Piston Replacement
PISTON REPLACEMENT NOTE：DISCONNECT THE AIR SUPPLY REMOVE THE MAGAZINE ASSEMBLY （029） WITH A FLAT HEAD SCREW DRIVER. REMOVE SCREWS（530）WITH 4 ㎜ HEXAGON WRENCH KEY . LOOSEN SET SCREW（526）WITH 3 ㎜ HEXAGON WRENCH KEY TO UNLOCK ADJUSTING ROD（018）. SLIDE LINKAGE MECHANISM AND ADJUSTING ROD（018） SIMULTANEOUSLY FROM COLLAR（006）. - Page 19 DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： AIR DRIVE CARTON STAPLER Model/ Serial No.： CS-3510 to which this declaration applies, complies with these normative documents: ...
-
Page 20: Exploded View Of Tool
CS-3210 AIR DRIVE CARTON STAPLER CROWN: 32MM CS-3410 AIR DRIVE CARTON STAPLER CROWN: 34MM CS-3510 AIR DRIVE CARTON STAPLER CROWN: 34.7MM CS-3511 AIR DRIVE CARTON STAPLER CROWN: 34.7MM CS-3520 AIR DRIVE CARTON STAPLER CROWN: 34.5MM CS-3521 AIR DRIVE CARTON STAPLER CROWN: 34.5MM... -
Page 21: Parts List
Block CS3510-524 O-Ring (Φ1.6xΦ16) CS3210-026 Driver [CS-3210] CS3510-525 Rod (Φ4.9-17.5) CS3410-026 Driver [CS-3410] CS3510-526 Hex.Soc.Hdless.Bolt (M6x1-14) CS3510-026 Driver [CS-3510, CS-3520, CS-3521] CS3510-527 Hex.Soc.Hd.Bolt (M8x1.25-16) CS3511-026 Driver [CS-3511] CS3510-529 Spring Pin (Φ3-10) CS3510-027 Cover Unit CS3510-530 Hex.Soc.Hd.Bolt (M5x0.8-14) CS3510-028 Magazine Seat CS3510-532 Hex.Soc.Flat Counter Sunk Hd.Screw (M5x0.8-12) - Page 24 NOTE www.SUMAKE.com www.AIRCOMPRESSOR.com.tw...
