Sumake S Series Instruction Manual

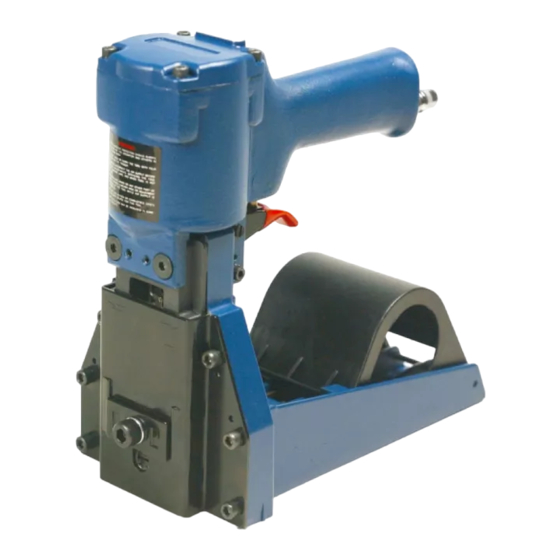

Air drive coil carton stapler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SUMAKE

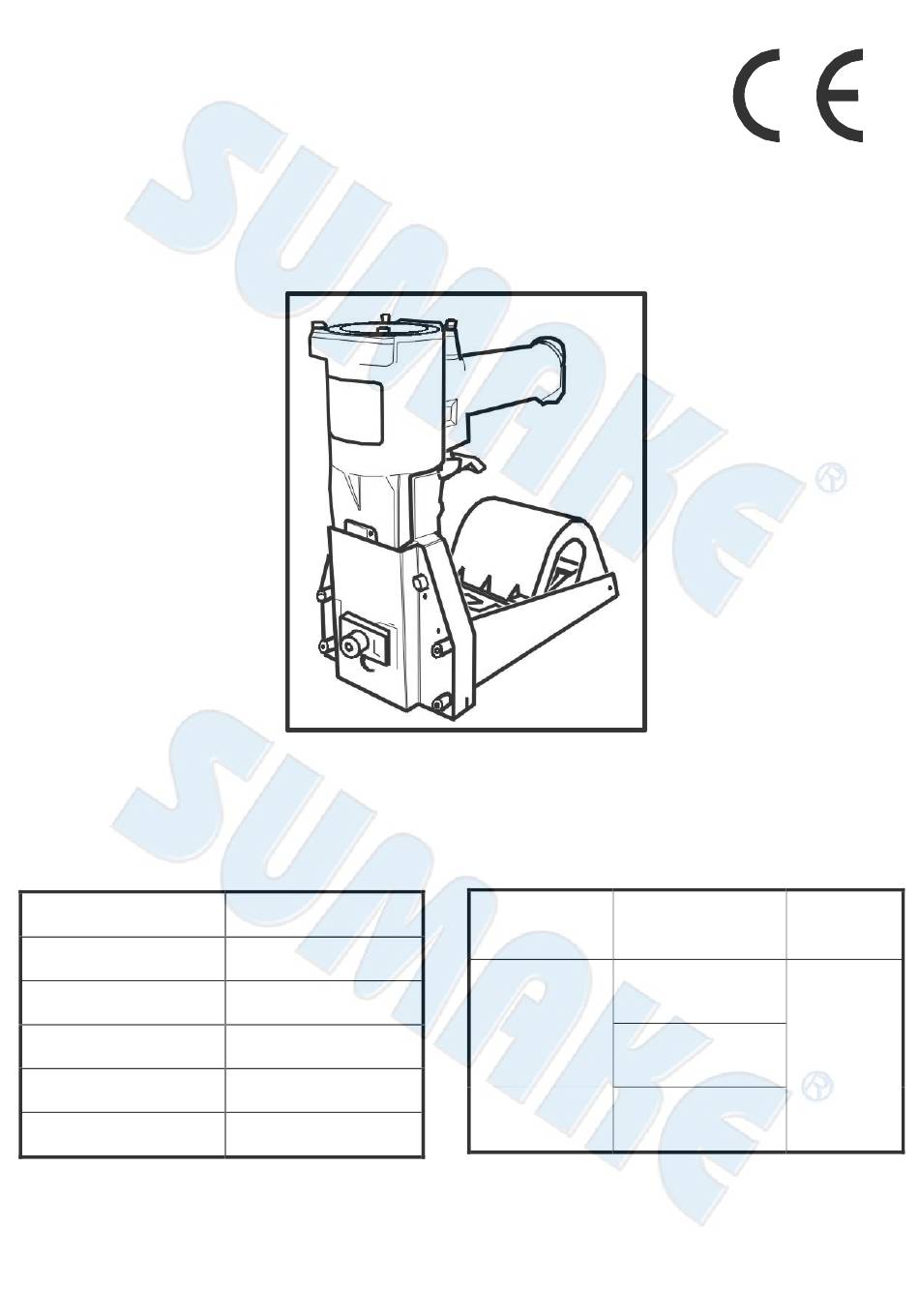

Specification:
Type
Shank
Nail Length
Tool Length (HxWxL)
Tool Weight
Load Capacity
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
Air Drive Coil Carton Stapler
S series
0.9x1.9mm
15mm & 18mm
(5/8" & 7/10")
230 x 115 x 233 mm
2.38 kg (5.23 lbs)
1000 pcs
PNEUMATIC TOOLS
CR-19S
Noise and Vibration:
Vibration
ISO 8662-11:1999
No Load:
1.3 m/s²
Uncertainty
K= 1.5 m/s
Noise
EN 12549:1999
EN ISO 4871
Sound Pressure Level
load: 89 dB(A)
Sound power level
load: 100 dB(A)
Uncertainty
²
K= 3dB
CR-19S-S-2108A-CJF
Remark
Please always
wear ear
protector at
environment
noise level >
80 dB(A) due
to risk of
impaired
hearing!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S Series and is the answer not in the manual?

Questions and answers

Related Manuals for Sumake S Series

Summary of Contents for Sumake S Series

  • Page 1 100 dB(A) 80 dB(A) due Tool Weight 2.38 kg (5.23 lbs) to risk of Uncertainty Uncertainty impaired ² K= 1.5 m/s K= 3dB Load Capacity 1000 pcs hearing! SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 CR-19S-S-2108A-CJF...
  • Page 2 INSTRUCTION MANUAL CR-19I, CR-19S, CR-19T ITEM NO.: CR-23I, CR-23IA AIR DRIVE COIL CARTON STAPLER CR-19I(19S)(19T)(23I)(23IA)-I-1305B-CJ...

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS DANGER 1. READ THIS MANUAL AND UNDERSTAND ALL SAFETY INSTRUCTIONS BEFORE OPERATION THE TOOL. IF YOU HAVE ANY QUESTIONS, PLEASE CONTACT OUR AUTHORIZED REPRESENTATIVES. 2. NEVER ALLOW TO USE TYPE OF FLAMMABLE GASES OXYGEN AS A POWER SOURCE FOR THE TOOL. USE FILTERED, LUBRICATED, REQULATED COMPRESSED AIR ONLY.

  • Page 5: Lubrication And Maintenance

    LUBRICATION AND MAINTENANCE NOTE YOUR TOOL REQUIRES LUBRICATION BEFORE YOU USE IT FOR THE FIRST TIME. DISCONNECT THE AIR SUPPLY FROM THE TOOL BEFORE LUBRICATING. TURN THE TOOL SO THE INLET IS FACING UP AND PUT ONE DROP OF HIGH SPEED SPINDLE OIL, UNOCAL RX22, OR 3-IN-1 OIL INTO AIR INLET.

  • Page 6: Loading The Tool

    LOADING THE TOOL DISCONNECT THE AIR SUPPLY SLIGHTLY SQUEEZE COVER (044) BACK THEN PULL TO OPEN COVER(044) PLACE COIL STAPLES IN MAGAZINE. FEED FRONT END OF COIL STAPLES INTO RIGHT COIL GUIDE (037), LEFT COIL GUIDE (038), AND TOP GUIDE (035). PUSH FORWARD UNTIL STOPPING IN DRIVER GUIDE UNIT (027).
  • Page 7 CHECK STAPLE LENGTH NOTE : DISCONNECT THE AIR SUPPLY LOOSEN SET SCRCW (526) WITH 3MM HEXAGON WRENCH KEY. TURN ADJUSTING ROD (018)180°WITH A SCREW DRIVER TO THE DESIRED ADJUSTMENT. IF WANT TO SHOOT LONG LEG STAPLES. LET “L” ON ADJUSTING ROD (018) UP. IF WANT TO SHOOT SHORT LEG STAPLES, LET “S”...

  • Page 8: Clinch Adjustment

    CLINCH ADJUSTMENT NOTE : DISCONNECT THE AIR SUPPLY USE ROD(DIA 3 MM) OR 2.5G MM HEXAGON WRENCH KEY. TURN COLLAR (006) THROUGH WINDOW CLOCKWISE TO TIGHTEN CLINCH AND COUNTER-CLOCKVIDE TO LOOSEN CHINCH. NOTE : REMOVE ADJUDTING TOOL AFTER ADJUSTMENT IS MADE.

  • Page 9: Operating The Tool

    OPERATING THE TOOL PROTECT YOUR EYES AND EARS. WEAR SAFETY GLASSES WITH SIDE WARNING SHIELDS. WEAR HEARING PROTECTION. EMPLOYERS AND USERS ARE RESPONSIBLE FOR ENSURING THE USER OR ANYONE NEAR THE TOOL WEAR THIS SAFETY PROTECTION. TO PREVENT ACCIDENTAL INJURIES : NEVER, PLACE A HAND OR ANY OTHER PART OF BODY IN STAPLE CLINCHING AREA OR ADJUSTMENT WINDOW.

  • Page 10: Cleaning The Tool

    GRASP HANDLE WITH ONE HAND. POSITION ON BOX IN LINE WITH THE DESIRED STAPLE LOCATION. THERE IS A SMALL PROJECTION ON EITHER SIDE OF THE MAGAZINE SEAT (039) AS AN AID IN LOCATING THE POSITION OF THE STAPLE. PRESS TRIGGER (011) MOVE MACHINE TO NEXT STAPLE LOCATION WITH OR WITHOUT RELEASING TRIGGER.

  • Page 11: Clearing A Jam From The Tool

    CLEARING A JAM FROM THE TOOL DISCONNECT THE AIR SUPPLY. PRESS DOWN LEVER (043). INSERT LONG NOSE PLIERS OR SCREW DRIVER TO CLEAR JAM. PULL BACK LEVER (043).

  • Page 12: Troubleshooting

    TROUBLESHOOTING WARNING STOP USING THE TOOL IMMEDIATELY IF ANY OF THE FOLLOWING PROBLEMS OCCUR. SERIOUS PERSONAL INJURY COULD OCCUR. ANY REPAIRS OR REPLACEMENTS MUST BE DONE BY A QUALIFIED PRESON OR AN AUTHORIZED SERVICE CENTER ONLY. PROBLEM CAUSE REMEDY O-RINGS ON VALVE (016)OR AIR LEAKAGE FROM TRIGGER.

  • Page 13: Teeth Replacement

    TEETH REPLACEMENT NOTE : DISCONNECT THE AIR SUPPLY. LOOSEN SCREWS (530) WITH 4 MM HEXAGON WRENCH KEY. REMOVE THE MAGAZINE (039) ASSEMBLY. LOOSEN SCREWS (532) WITH 3 MM HEXAGON WRENCH KEY. CHANGE TEETH ONE AT A TIME TO PREVENT REVERS TEETH.

  • Page 14: Driver Replacement

    DRIVER REPLACEMENT NOTE : DISCONNECT THE AIR SUPPLY. LOOSEN SCREWS (530) WITH 4 MM HEXAGON WRENCH KEY. REMOVE THE MAGAZINE (039) ASSEMBLY. LOOSEN SET SCREW (526) WITH 3 MM HEXAGON WRENCH KEY TO UNLOCK ADJUSTING ROD (018) SLIDE LINKAGE MECHANISM AND ADJUSTING ROD (018) SIMULTANEOUSLY FROM COLLAR (006) LOOSEN SCREWS (535) WITH 3 MM HEXAGON WRENCH KEY.
  • Page 15 VALVE’S AND TUBE’S O-RINGS REPLACEMENT NOTE : DISCONNECT THE AIR SUPPLY LOOSEN SCREWS (513) WITH FLAT SCREW DRIVER. REMOVE SPRING (012) WITH LONG NOSE PLIERS. REMOVE C-Ring (545) WITH C-Ring Pliers. REMOVE VALVE (017) AND TUBE (016) WITH A LONG NOSE PLIERS.

  • Page 16: Piston Replacement

    PISTON REPLACEMENT NOTE : DISCONNECT THE AIR SUPPLY. REMOVE SCREWS (530) WITH 4 MM HEXAGON WRENCH KEY. REMOVE THE MAGAZINE (039) ASSEMBLY. LOOSEN SET SCREW (526) WITH 3 MM HEXAGON WRENCH KEY TO UNLOCK ADJUSTING ROD (018). SLIDE LINKAGE MECHANISM AND ADJUSTING ROD (018) SIMULTANEOUSLY FROM COLLAR (006).
  • Page 17 DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： AIR DRIVE COIL CARTON STAPLER Model/ Serial No.： CR-19S to which this declaration applies, complies with these normative documents: ...
  • Page 18 CR-19I, CR-19S, CR-19T, CR-23I, CR-23IA AIR DRIVE COIL CARTON STAPLER CR-19I(19S)(19T)(23I)(23IA)-P-1305B-CJ...
  • Page 19 CR-19I, CR-19S, CR-19T, CR-23I, CR-23IA AIR DRIVE COIL CARTON STAPLER PARTS LIST No. Parts No. Description Q'ty No. Parts No. Description Q'ty CR19I-01 CR19I-41 Washer [For CR-19I, CR-19T] CR19I-02 Piston CR19S-41 Washer [For CR-19S] CR19I-03 Piston Rod CR23I-41 Washer [For CR-23I, CR-23IA] CR19I-04 Block CR19I-42...
