Sumake EMS-B1450 Operation And Maintenance Manual

Sumake EMS-B1450 Operation And Maintenance Manual

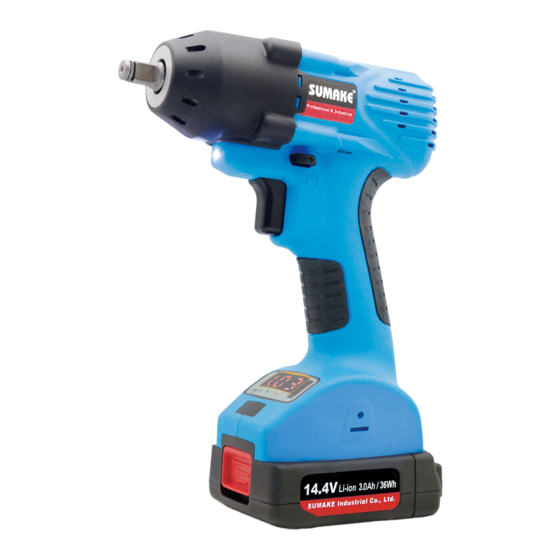

Brushless cordless mechanical pulse screwdriver, brushless cordless mechanical pulse wrench

Advertisement

Quick Links

BRUSHLESS CORDLESS MECHANICAL PULSE SCREWDRIVER
BRUSHLESS CORDLESS MECHANICAL PULSE WRENCH
Screwdriver
OPERATION AND MAINTENANCE MANUAL
EMS-B1450, EMS-B1470
ITEM NO.:
EMW-B1450, EMW-B1470
ITEM NO.:
EMW-B14100, EMW-B14100F
EMW-B14200F
Wrench
EMS(W)-B14-I-2305L-K2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMS-B1450 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sumake EMS-B1450

  • Page 1 OPERATION AND MAINTENANCE MANUAL EMS-B1450, EMS-B1470 ITEM NO.: BRUSHLESS CORDLESS MECHANICAL PULSE SCREWDRIVER EMW-B1450, EMW-B1470 ITEM NO.: EMW-B14100, EMW-B14100F EMW-B14200F BRUSHLESS CORDLESS MECHANICAL PULSE WRENCH Screwdriver Wrench EMS(W)-B14-I-2305L-K2...
  • Page 2 EMW-B14100(3/8”) EMS-B1470 EMS-B1450 Model EMW-B14100F(1/2”) EMW-B1470 EMW-B1450 DC 14.4V DC 14.4V DC14.4V Input Voltage (DC) 0~2000 0~2600 0~1900 Rotating Speed (r.p.m) Blows per minute 0~2600 0~3400 0~2500 (B.P.M) 10~45 4~35 Torque (N.m) Max torque (HoF mode) Set EMW-B14100(F) & EMS(M)-B1470 at 80% output using M16 bolt , TM-M400 tester measured EMW-B14100(F) &...
  • Page 3 Main Technical Parameters: Model EMW-B14200F DC 14.4V Input Voltage (DC) 0~1700 Rotating Speed (r.p.m) 0~2100 Blows per minute (B.P.M) 12~90 Torque (N.m) Max torque (HoF mode) Set EMW-B14200F at 80% output using M20 bolt, TM-M400 Torque accuracy (%) tester measured EMW-B14200F torque accuracy is ±8~10% TM-M400 apply for testing M12、M14、M16、M20 bolts Torque Tester Bolt size...
  • Page 4: Table Of Contents

    Table of Contents Ⅰ. Symbol, Accessory Description……………………… ………...…..4 Ⅱ. Warning……………………………………………………… ……..5 Ⅲ. Protection Function, Warning, Operation Instructions……… …….. 6 Ⅳ. Screwdriver and Battery assembly/disassembly description:……...7 Ⅴ. Brief Function Operating………………………………………… ..9 Ⅵ. Function Description:………………………………… ……………10 ⅥI. Instructions:………………...………………………… … …………12 Main panel buttons and screen display instructions:……………..13 SRC-01 Remote control button icon description:…………...
  • Page 5: Symbol, Accessory Description

    Please Read all Instructions Before Operation (With parts exploded view) Ⅰ. Symbol, Accessory Description Symbol Description Please refer to Warning Recyclable Indoor use only the manual Keep away Keep away Do not take Do not Safety from from fire apart discard certification moisture...
  • Page 6: Ⅱ. Warning

    Ⅱ. Warning Before using the Battery Screwdriver, please check if the main parts/accessories are missing or broken and read thoroughly the operating instructions carefully. Please follow the following precautions/operation instructions and basic safety measures to avoid fire, electric shock and personal injury etc.
  • Page 7: Ⅲ. Protection Function, Warning, Operation Instructions

    Ⅲ. Protection Function, Warning, Operation Instructions Protective Function for the Battery Screwdriver Over-current protection Low battery protection Temperature protection Forward and reverse three-stage control protection Low speed & stall protection Sleep mode Battery ID identification Cautions Do not disassemble or modify the Battery Screwdriver arbitrarily, otherwise, the warranty will not be Valid.
  • Page 8: Ⅳ. Screwdriver And Battery Assembly/Disassembly Description

    Ⅳ. The assembly/disassembly method for the Battery Screwdriver and Battery is shown in the figures below, with description: Assembly Diagram Clip Latch Switch Positioning Line (FIGURE 3) (FIGURE 2) (FIGURE 1) (圖二) (1) As shown by the circle in Figure 1: After the inverted triangle arrow on the screwdriver is aligned with the positioning line on the Battery, press the screwdriver down with clip latches.
  • Page 9 Disassembly Diagram Clip Latch Switch (FIGURE 1) (FIGURE 2) (FIGURE 3) (1) Press and hold the Battery clip latches. (2) Push the screwdriver all the way to the back. (3) Then take out the screwdriver and disassemble it.
  • Page 10: Ⅴ. Brief Function Operating

    Ⅴ. Brief Function Operating (11) (12) (10) Function Name Comparison Table Number Name Number Name Start trigger Signal display light Forward and reverse Power indicator light switch level LED lighting Display panel Bit sleeve (10) Wrist strap hole Aluminum alloy (11) Bluetooth front cover...
  • Page 11: Ⅵ. Function Description

    Ⅵ. Function Description: 1. This Battery Screwdriver is an Impact Screwdriver. When the screw is being fastened with DaDaDa sound, it means the Battery Screwdriver continues to apply the impact until the stroke is completed, and then it will stop the impact action. (1) Start trigger: 1-1.
  • Page 12 (3) LED light: LED light is for auxiliary lighting, with option for on or off. Switch method: move the forward and reverse switch lever to the middle and press the trigger to turn on or off. (4) Bit sleeve operation and compatibility: Pull the cap of the Battery Screwdriver outward, and then load the BIT as shown in the following figures.
  • Page 13: Ⅵi. Instructions

    3. Please operate the Battery Screwdriver carefully in accordance with the operating instructions. Do not drop or subject the Battery Screwdriver to impact. 4. When the Battery Screwdriver is running, do not change the forward and reverse switch lever to avoid system error determination. 5.
  • Page 14: Src-01 Remote Control Button Icon Description

    2. SRC-01 Remote control button icon description: Press and hold on “WS” key button till “SE1” shows up on screen. (1)[ ]after setup, illustration for remote controller buttons: Program Select Program Bluetooth Batch Count Buzzer Force Lock Impacts Save Limit 2.
  • Page 15 2. SRC-01 Remote control button icon description: Press and hold “WS” and “Res” key buttons at the same time till “SE3” appears on screen. (3)[ ]after setup, illustration for remote controller buttons: Firmware versions confirm & setting. Tightening on forward/ reverse setting Factory default setting...
  • Page 16: Operation Function Setting Description

    3. Operation function setting description: Step1:Press and hold [WS/ST] button on the panel, to prompt [ SE1], then use the remote control to set up the parameters according to the function requirements. Step2:Press and hold the [number increase or decrease keys] on the remote control to speed up the value change.
  • Page 17 Buzzer Buzzer sound function: bun ON [Warning tone], buF OFF [Warning tone] status. Lock [program switch button] Lock function: (1) Lcn [Lock]: The program cannot be switched. (2) LcF [Unlock]: The program can be switched. Save function: After the setup is completed, save and exit the setup function, and the main panel screen displays the work screen.
  • Page 18 Ignore Rundown Friction: Display Panel 1. Press and hold “WS” button on the counter panel until “SE1” shows up on the screen. 2. Press “Pc” button to prompt “SE2” on the screen, and use “Batch Count” on the remote controller for setting. 3.
  • Page 19: Function Preset

    Reset to Default Settings: Display Panel 1. Press “WS+Res” button on the counter panel until “SE3” shows up on the screen. 2. Your setting will be completed when screen shows numbers of program set/ screw and hear a “Beep” sound by press “Key ”...
  • Page 20 Keep a short tone Red light is ON Fasten operation error until the trigger (up) is released Keep a rapid During fasten operation, the Red light is ON short tone until The Limit rotation number is screwdriver completes the fastening abnormal faster than the set Limit, and NOK (up)
  • Page 21: Other Instructions

    IX. Other Instructions: 1. The optimal use of this Battery Screwdriver is no more than 8 hours per day. 2. The repair and maintenance of the Battery Screwdriver can be sent to the designated after-sales service center or the local service center via the original dealer. If the product is disassembled by the customer, our company will not be responsible for repairs.
  • Page 22 Caution Please save this manual properly Our company reserves the right to modify the product without prior notice.
  • Page 23 EU Declaration of Conformity (DOC) SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment: ECECTRIC SCREWDRIVER (WRENCH) (BRUSHLESS CORDLESS MECHANICAL PULSE SCREWDRIVER/WRENCH) Model/ Serial No.: EMS-B1450, EMS-B1470...
  • Page 24 EMS-B1450, EMS-B1470 BRUSHLESS CORDLESS MECHANICAL PULSE SCREWDRIVER EMW-B1450, EMW-B1470, EMW-B14100, EMW-B14100F BRUSHLESS CORDLESS MECHANICAL PULSE WRENCH EMS(W)-B1450(70)EMW-B14100(F)-P-2210D-K2...
  • Page 25 EPGZPTI10004-2B Gear Housing For EMS-B1470 B9.5 EPEG31438-1 Indication Light P.C.B. EPGZPTI10004-1W Gear Housing For EMW-B1470 W3/8 EPN15017-4 LED Light EPGZPTI10003-2B Gear Housing For EMS-B1450 B9.5 EPEG31527-8 MOS P.C.B. EPGZPTI10003-1W Gear Housing For EMW-B1450 W3/8 EPEG31527-5 P.C.B EPE31719-6 10Pin Plug EPEG31527-3 P.C.B.
  • Page 26 EMW-B14200F BRUSHLESS CORDLESS MECHANICAL PULSE WRENCH EMW-B14200F-P-2210A-K2...
  • Page 27 EMW-B14200F BRUSHLESS CORDLESS MECHANICAL PULSE WRENCH PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty EPC50223-3 Protection EPCK28033 Trigger Spring EPCH20519-5 Screw EPCC70016 Trigger Assembly For For EMW-B14200F EPCH20302-4 Washer EPE63231 Forward/Reverse Spring EPCAB00015-2 Housing-Upside EPEG31439-4 F/R Switching Element P.C.B. EPCBB00015-2 Housing-Underside EPCI50218-10...
  • Page 28 EU Declaration of Conformity (DOC) SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment: ECECTRIC WRENCH (BRUSHLESS CORDLESS MECHANICAL PULSE SCREWDRIVER/WRENCH) Model/ Serial No.: EMW-B14200F The object of the declaration described above is in conformity with the relevant union harmonization legislation: ...
