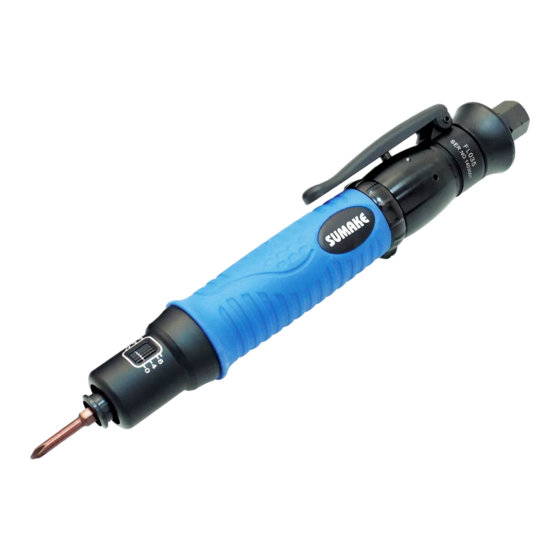

Sumake FLB085 Manual

Shut off air composite driver
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
SUMAKE
Shut Off Air Composite Driver
Free
Speed
MODEL
r/min
FLB085
1000
Recommend Air Pressure: 6.0 kg/cm²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
(Lever Start Type)
Specification:
Torque range
Min. air hose bore
(±3%)
Nm
Kgf-cm
6kg/cm
1.5-8.5
15-85
PNEUMATIC TOOLS
Vibration
(mm)
EN ISO 28927-2
5kg/cm
²
²
8.0
9.5
No Load: 1.0 m/s²
Uncertainty K= 1.5
Noise and Vibration:
Noise
EN ISO 15744
Sound pressure level
No Load: 72 dB(A)
Sound power level
No Load: 83 dB(A)
Uncertainty K= 3dB
m/s²
Remark
Please always
wear ear
protector at
environment
noise level > 80
dB(A) due to
risk of impaired
hearing!
FLPB085-S-2307B-MIF

Advertisement

loading
Need help?

Need help?

Do you have a question about the FLB085 and is the answer not in the manual?

Questions and answers

Related Manuals for Sumake FLB085

Summary of Contents for Sumake FLB085

  • Page 1 Sound power level noise level > 80 No Load: 83 dB(A) dB(A) due to risk of impaired Uncertainty K= 1.5 Recommend Air Pressure: 6.0 kg/cm² Uncertainty K= 3dB m/s² hearing! FLPB085-S-2307B-MIF SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91...

  • Page 2: Ec Declaration Of Conformity

    DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： SHUT OFF AIR COMPOSITE SCREW DRIVER (LEVER START TYPE) Model/ Serial No.： FLB085 to which this declaration applies, complies with these normative documents: ...
  • Page 3 Disassemble and repair Rear clutch is worn and tore. Disassemble and repair Torque spring is elastic fatigued. Disassemble and repair Air pressure may not enough. Check equipment. WHEN THE FREE SPEED IS TOO LOW Check air inlet set. Disassemble and repair FLB085-I-2211A-MI...
  • Page 4 FLB085 SHUT OFF AIR COMPOSITE SCREW DRIVER (LEVER START TYPE) FLB085-P-2307B-MI...

  • Page 5: Parts List

    FLB085 SHUT OFF AIR COMPOSITE SCREW DRIVER (LEVER START TYPE) PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 2S2071 Air Inlet Bushing [PT] 3A6046 Torque Ring 2S2070 Air Inlet Bushing [NPT] 54-1 7Q6107 O Ring 8E9963 Logo Plate...
  • Page 6 SCREWDRIVER Original instructions SUMAKE Industrial Co. Ltd.
  • Page 7 Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
  • Page 8 2. While using an assembly power tool for threaded fasteners, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3.
  • Page 9 General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
