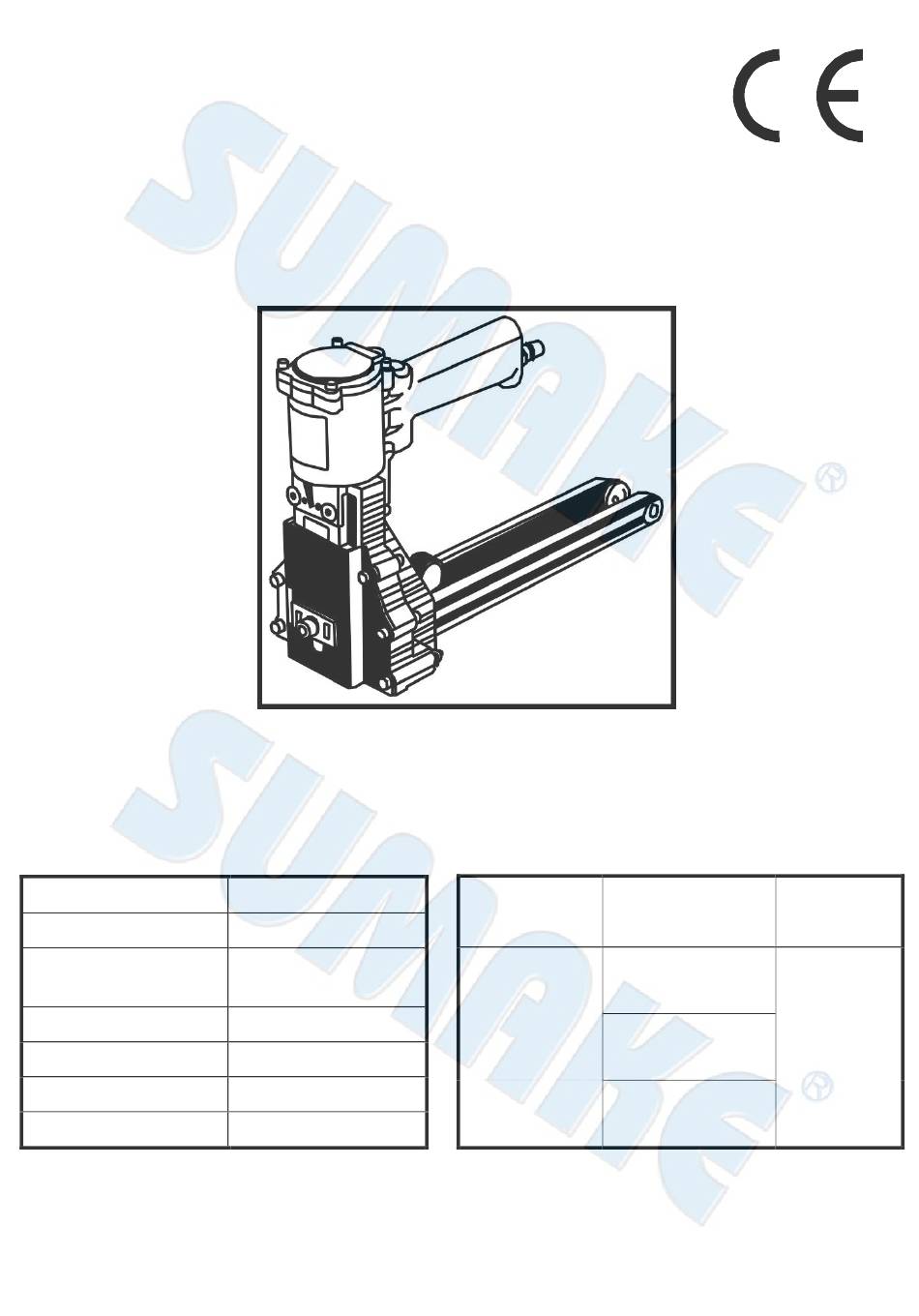

SUMAKE
Specification:
Crown
Shank
Nail Length
Tool Length (HxWxL)
Air Pressure
Tool Weight
Load Capacity
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS

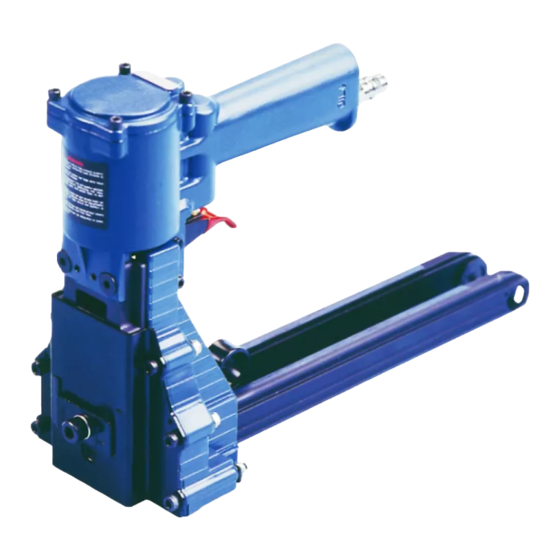

Air Drive Carton Stapler
CS-32C
32mm
0.9x1.9mm
15mm & 18mm
(5/8" & 7/10")
218x115x342 mm
5 ~ 7bar (75 ~ 100 psi)
2.65 kg (5.83 lbs)
120 pcs
Noise and Vibration:
Vibration
ISO 8662-11:1999
Sound Pressure Level
No Load:
1.3 m/s²
Sound power level
Uncertainty
²
K= 1.5 m/s
Noise
EN 12549:1999
EN ISO 4871
Please always
load: 89 dB(A)
protector at
environment
load: 100 dB(A)
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
CS-32C-S-2003E-CJF
Remark
wear ear
hearing!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sumake CS-32C
Summary of Contents for Sumake CS-32C
- Page 1 5 ~ 7bar (75 ~ 100 psi) dB(A) due to risk of impaired Tool Weight 2.65 kg (5.83 lbs) Uncertainty Uncertainty hearing! ² K= 1.5 m/s K= 3dB Load Capacity 120 pcs SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 CS-32C-S-2003E-CJF...
- Page 2 INSTRUCTION MANUAL CS-32C, CS-34, CS-35A ITEM NO.: AIR DRIVE CARTON STAPLER WARNING! BEFORE OPERATING THIS STAPLER. ALL OPERATORS SHOULD STUDY THIS MANUAL, TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE STAPLER FOR FUTURE REFERENCE. IF YOU HAVE ANY QUESTION, CONTACT YOUR DISTRIBUTOR.
-
Page 3: Table Of Contents
TABLE OF CONTENTS PAGE SAFETY INSTRUCTIONS..................4 LUBRICATION AND MAINTENANCE ................5 AIR SUPPLY AND CONNECTIONS ................5 LOADING THE TOOL....................6 CHECK STAPLE LEG LENGTH.................7 CLINCH ADJUSTMENT .....................8 DEPTH ADJUSTMENT ....................8 OPERATING THE TOOL ....................9 CLEANING THE TOOL ....................10 CLEARING A JAM FROM THE TOOL..............11 TROUBLE SHOOTING ....................12 TEETH REPLACMENT ....................13 DRIVER REPLACEMENT ..................14... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS DANGER 1. READ THIS MANUAL AND UNDERSTAND ALL SAFETY INSTRUCTIONS BERORE OPERATION THE TOOL. IF YOU HAVE ANY QUESTIONS , PLEASE CONTACT OUR AU . THORIZED REPRESENTA TIVES . 2. NEVER ALLOW TO USE TYPE OF FLAMMABLE GASES OXYGEN AS A POWER SOURCE FOR THE TOOL . -
Page 5: Lubrication And Maintenance
LUBRICATION AND MAINTENANCE NOTE YOUR TOOL REQUIRES LUBRICATION BEFORE YOU USE IT FOR THE FIRST TIME . DISCONNECT THE AIR SUPPLY FROM THE TOOL BEFORE LUBRICATING . TURN THE TOOL SO THE INLET IS FACING UP AND PUT ONE DROP OF HIGH SPEED SPINDLE OIL , UNOCAL RX22 , OR 3-IN-1 OIL INTO AIR INLET . -
Page 6: Loading The Tool
LOADING THE TOOL DISCONNECT THE AIR SUPPLY. PULL PUSHER （036） BACK UNTIL IT STOPS ON PUSHER PIVOTS （032）THEN ROTATE PUSHER（036）TO POSITION INSERT 2 STICKS OF APPROPRIATE STAPLES INTO THE MAGAZINE（030）FROM BACK . LET THE STICKS SLIDE FORWARD TO THE FRONT OF THE MAGAZINE（036） PULL PUSHER（036）BACK TO UPRIGHT POSITION AND GENTLY LET THE PUSHER（036）SLIDE FORWARD AGAINST THE STAPLES . -
Page 7: Check Staple Leg Length
CHECK STAPLE LEG LENGTH NOTE：DESCONNECT THE AIR SUPPLY LOOSEN SET SCRCW（526）WITH 3 ㎜ HEXAGON WRENCH KEY . TURN ADJUSTING FOD（018）180° WITH A SCREW DRIVER TO THE DESIRED ADJUSTMENT . IF WANT TO SHOOT LONG LEG STAPLES. LET“L＂ON ADJUSTING ROD（018）UP . IF WANT TO SHOOT SHORT LEG STAPLES. -
Page 8: Clinch Adjustment
CLINCH ADJUSTMENT NOTE：DISCONNECT THE AIR SUPPLY USE ROD（DIA 3 ㎜）OR 2.5 ㎜ HEXAGON WRENCH KEY . TURN COLLAR（006）THROUGH WINDOW CLOCKWISE TO CHINCH . NOTE：REMOVE ADJUDTING TOOL AFTER ADJUSTMENT IS MADE . DEPTH ADJUSTMENT NOTE：DISCONNECT THE AIR SUPPLY LOOSEN FRONT SCREW（527）WITH 6 ㎜ HEXAGON WRENCH KEY . PUSH THE BODY（007）UP AND ADJUST TO DESIRED DEPTH . -
Page 9: Operating The Tool
OPERATING THE TOOL PROTECT YOUR EYES AND EARS . WEAR SAFETY GLASSES WITH SIDE SHIELDS . WEAR WARNING HEARING PROTECTION . EMPLOYERS AND USERS ARE RESPONSIBLE FOR ENSURING THE USER OR ANYONE NEAR THE TOOL WEAR THIS SAFETY PROTCETION . TO PREVENT ACCIDENTAL INJURIES：NEVER , PLACE A HAND OR ANY OTHER PART OF WARNING BODY IN STAPLE CLINCHING AREA OT ADJUSTMENT WINDOW . -
Page 10: Cleaning The Tool
GRASP HANDLE WITH ONE HAND POSITION ON BOX IN LINE WITH THE DESIREDSTAPLE LOCATION . THERE IS A SMALL PROJECTION EITHER SIDE OF THE MAGAZINE SEAT（038）AS AN AID IN LOCATING THE POSITION OF THE STAPLE .（011） STRONGEST CLOSURE REQUIRES END STAPLES CLOSE TO END OF BOX . CHECK STAPLE CLINCHING IN SAMPLES OF BOX BOARD BEING USED . -
Page 11: Clearing A Jam From The Tool
CLEARING A JAM FROM THE TOOL DISCONNECT THE AIR SUPPLY . PULL PUSHER（036）BACK AND ROTATE TO LOCKED POSITION . INSERT LONG NOSE PLIERS OR SCREW DRIVER TO CLEAR JAM . SLOWLY RELEASE PUSHER（036）BACK TO POSITION . -
Page 12: Troubleshooting
TROUBLESHOOTING WARNING STOP USING THE TOOL IMMEDIATELY IF ANY OF THE FOLLOWING PROBLEMS OCCUR . SERIOUS PERSONAL INJURY COULD OCCUR . ANY REPAIRS OR REPLACEMENTS MUST BE DONE BY A QUALIFIED PERSON OR AN AUTHORIZED SERVICE CENTER ONLY . PROBLEM CAUSE REMEDY O-RING ON VALVE （016）... -
Page 13: Teeth Replacment
TEETH REPLACEMENT NOTE：DISCONNECT THE AIR SUPPLY LOOSEN SCREWS（530，531）AND NUT（542）WITH 8 ㎜ SPANNER AND 4 ㎜ HEXAGON WRENCH KEY . REMOVE THE MAGAZINE（030）ASSEMBLY . LOOSEN SCREWS（532）WITH 3 ㎜ HEXAGON WREM KEY . CHANGE TEETH ONE AT A TIME TO PREVENT REVERS TEETH . -
Page 14: Driver Replacement
DRIVER REPLACEMENT NOTE：DISCONNECT THE AIR SUPPLY LOOSEN SCREWS （530,531） AND NUT （542） WITH 8 ㎜ SP ANNER AND 4 ㎜ HEXAGON WRENCH KEY . REMOVE THE MAGAZINE ASSEMBLY（030）. LOOSEN SET SCREW（526）WITH 3 ㎜ HEXAGON WRENCH KEY TO UNLOCK ADJUSTING ROD（018）. SLIDE LINKAGE MECHANISM AND ADJUSTING ROD（018）... -
Page 15: Pusher Spring Replacement
PUSHER SPRING REPLACEMENT LOOSEN SCREWS（530,531）AND NUT（542）WITH 8 ㎜ SP ANNER AND 4 ㎜ HEXAGON WRENCH KEY . REMOVE THE MAGAZINE ASSEMBLY（030）. PULL PUSHER（036）BACK UNTIL IT STOPS ON ROD , THEN ROTATE PUSHER TO POSITION . PUSH THE MAGAZINE SEAT（038）BACK AND TAKE OFF IT FROM MAGAZINE . -
Page 16: Valve's And Tube's O-Rings Replacement
VALVE’S AND TUBE’S O-RINGS REPLACEMENT LOOSEN SCREWS（513）WITH FLAT SCREW DRIVER . REMOVE SPRING（012）LONG NOSE PLIERS . REMOVE C-RING（546）WITH C-RING PLIERS . REMOVE VALVE（017）AND TUBE（016）WITH A LONG NOSE PLIERS . -
Page 17: Piston Replacement
PISTON REPLACEMENT NOTE：DISCONNECT THE AIR SUPPLY REMOVE SCREWS （530,531） AND NUT （542） WITH 8 ㎜ SP ANNER AND 4 ㎜ HEXAGON WRENCH KEY . REMOVE THE MAGAZINE ASSEMBLY（030）. LOOSEN SET SCREW（526）WITH 3 ㎜ HEXAGON WRENCH KEY TO UNLOCK ADJUSTING ROD（018）. SLIDE LINKAGE MECHANISM AND ADJUSTING ROD（018）... -
Page 18: Exploded View
CS-32C, CS-34, CS-35A AIR DRIVE CARTON STAPLER CROWN 32MM(34MM)(35MM) CS-32C(34)(35A)-P-1407E-CJ... -
Page 19: Spare Parts List
Hex.Soc.Flat Counter Snk Hd.Screw CS34-026 Driver (CS-34) CS35A-533 CS35A-027 Cover Unit CS35A-534 CS35A-028 Driver Guide Unit (CS-35A) CS35A-535 Hex.Soc.Hd.Bolt CS32C-028 Driver Guide Unit (CS-32C) 537A CS35A-537A Spring Pin CS34-028 Driver Guide Unit (CS-34) CS35A-538 Flat Hd.Screw CS35A-029 Plate CS35A-539 Spring Pin... - Page 20 DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： AIR DRIVE CARTON STAPLER Model/ Serial No.： CS-32C to which this declaration applies, complies with these normative documents: ...
