2.1 Preparing Before Use

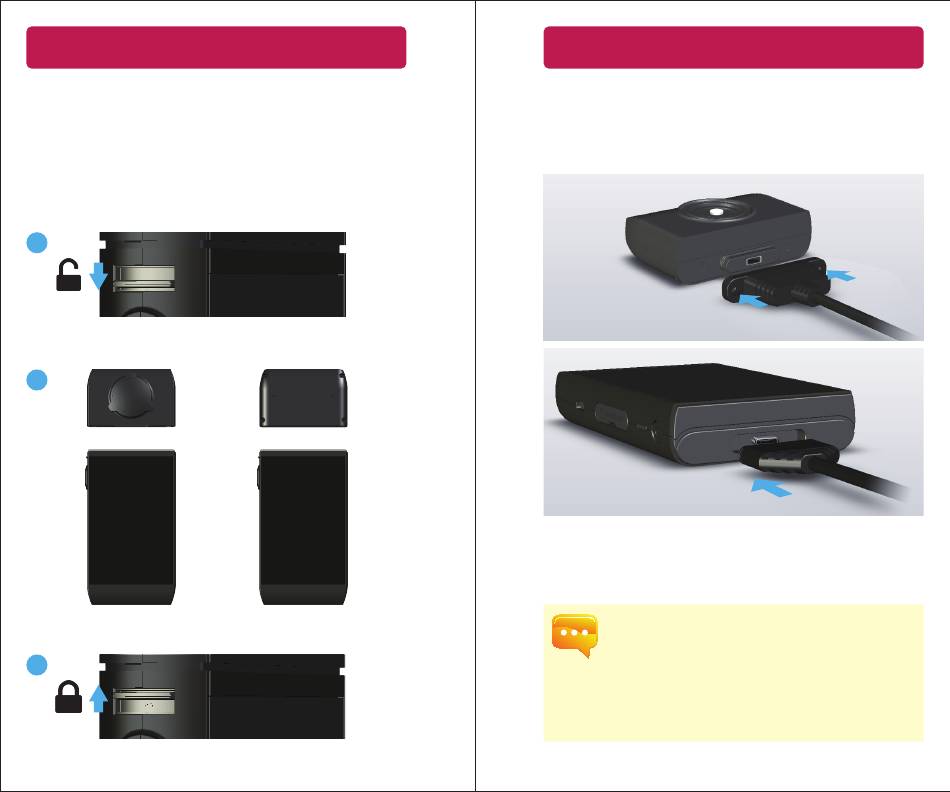

Connect optical sensor to console
To install the sensor head in the opposite direction, switch off
the power before doing so. First, push the safety lock down to
the unlock status as shown in the figure below to remove the
Sensor head from the body, turn it in the opposite direction and
then insert it into the body again and push the safety lock
upwards. Switch on the power again after correctly installed.
1
2
+
or
3
- 7 -
+
2.1 Preparing Before Use
As shown in the figure below, when using the USB TypeC cable
to perform long distant measurements, please switch off the
power first before connect to the cable and tighten the screws
of the cable connected to the sensor head.
1. Optical sensor and console are paired before shipment to you. DO
NOT use either of the two with any other PG200N Spectrometer. If
you have more than one PG200N Spectrometer, DO NOT swap
optical sensor between instruments.
2. Power off the spectrometer before installing or uninstalling optical
sensor from console.
3. Run background calibration after turning power on and before
taking measurements.
