Summary of Contents for Kobold TIN-SS

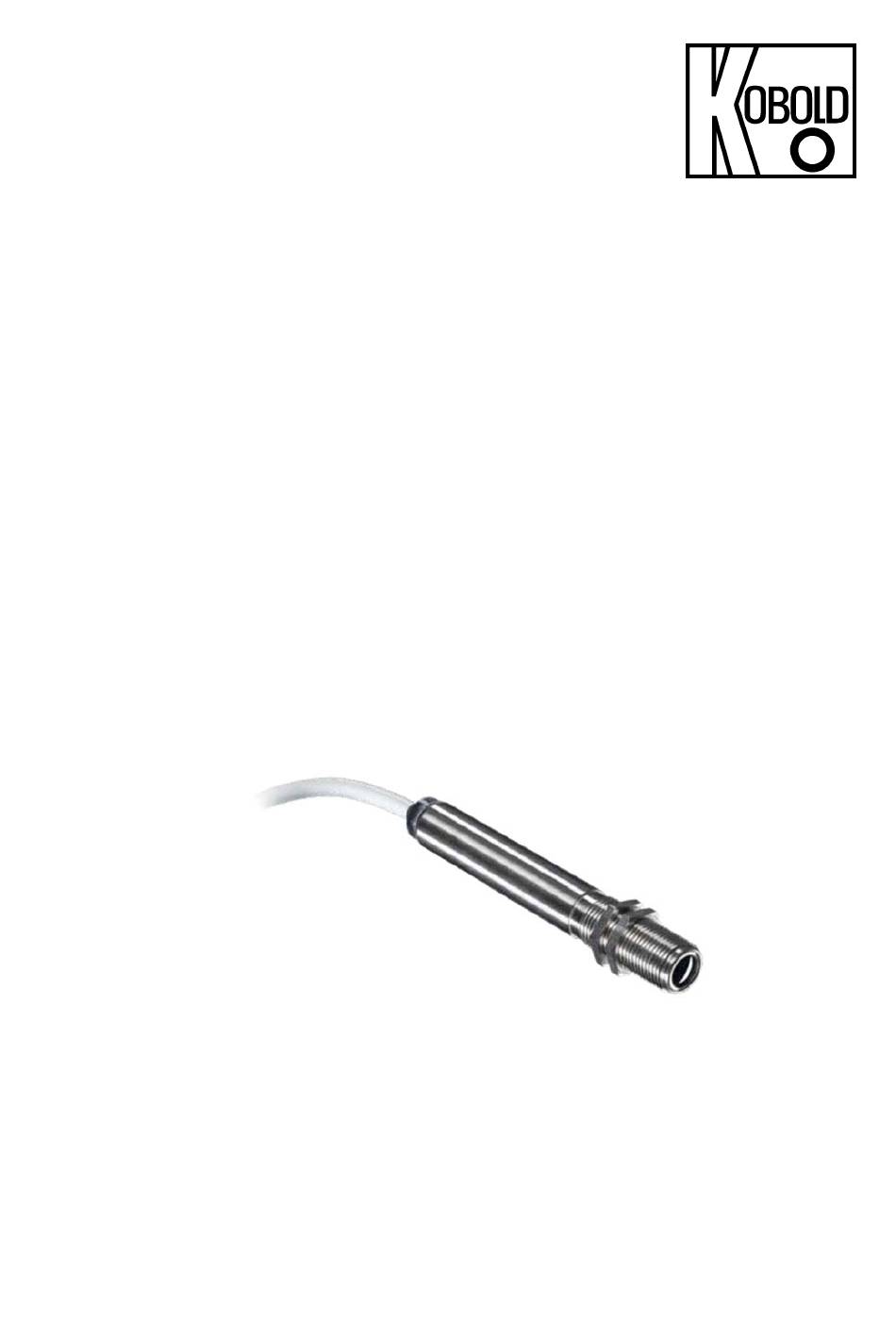

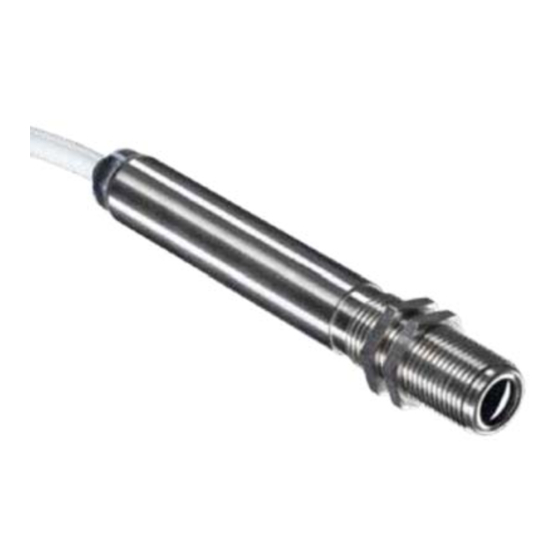

- Page 1 Operating Instructions Infrared Pyrometer Model: TIN-SS...
-
Page 2: Table Of Contents
Order Codes ....................24 Dimensions ....................24 Disposal ...................... 25 EU Declaration of Conformance ..............26 Appendix A – Table of emissivity for metals ..........27 page 2 TIN-SS K01/1023... - Page 3 Appendix B - Table of emissivity for non-metals ......... 27 Appendix D – Smart Averaging ..............28 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com...
-
Page 4: Note
Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased. -
Page 5: Regulation Use
They calculate the surface temperature based on the emitted infrared energy of objects (see chapter 10 Basics of Infrared Thermometry). The TIN-SS sensing head is a sensitive optical system. Please use only the thread for mechanical installation. Avoid abrupt changes of the ambient temperature. -
Page 6: Operating Principle
The default settings can be changed with the optional USB adapter cable & software. If the unit is supplied together with the IR App Connector cable the output is already preset to digital communication (bidirectional). At time of delivery the unit has the following pre-settings: page 6 TIN-SS K01/1023... - Page 7 TIN-SS For a usage of the TIN-SS for online maintenance applications (in electrical cabinets e.g.) the following recommend settings are already included in the factory default setting (but not active): TIN-SS K01/1023 page 7...
-
Page 8: General Specifications
TIN-SS 5.2 General specifications 5.3 Electrical specifications page 8 TIN-SS K01/1023... - Page 9 TIN-SS TIN-SS K01/1023 page 9...
-
Page 10: Measurement Specifications
TIN-SS 5.4 Measurement specifications page 10 TIN-SS K01/1023... -
Page 11: Optical Charts
The distance is always measured from the front edge of the sensor housing/ CF- lens holder/ air purge. Optical chart TIN-SS (15:1) Optical chart TIN-SS (15:1) with CF-lens (0.8 mm@ 10 mm) 5.6 Close focus optics ● If the CF-lens is used, the transmission has to be set to 0.78. To change this value the optional USB-Kit (including software) is necessary. -
Page 12: Led-Functions
At a supply voltage (Vcc) ≥ 12 V it takes about 5 minutes until the sensor works in a stable mode. Therefore, after switching on the unit, the LED will show a not stable state for up to 5 minutes. page 12 TIN-SS K01/1023... - Page 13 31 °C 3-times long flashing indicates and afterwards 1-times short flashing indicates 8 °C 10-times long flashing indicates and afterwards 8-times short flashing indicates 20 °C 2-times long flashing indicates and afterwards 10-times short flashing indicates TIN-SS K01/1023 page 13...
-
Page 14: Installation
TIN-SS 6. Installation 6.1 Mechanical Installation The TIN-SS is equipped with a metric M12x1 thread and can be installed either directly via the sensor thread or with the help of the both hex nuts (standard) to the mounting bracket available. - Page 15 TIN-SS battery powered Mounting fork with M12x1 thread, Mounting bracket, adjustable in Adjustable in two axes two axes see air purge collar [Order-No.: TIN-ZTAB] TIN-SS K01/1023 page 15...
- Page 16 TIN-ZTAP A combination of the laminar air purge collar with the bottom section of the mounting fork allows an adjustment in two axes. [Order-No.: TIN-ZTAP] IR App Connector: USB adapter cable incl. terminal block [Order-No.: TIN-ZSIA] page 16 TIN-SS K01/1023...
-
Page 17: Electrical Installation
Use shielded cables only. The sensor shield has to be grounded. The shield [black] on the TIN-SS is not connected to GND [brown].In any case it is necessary to connect the shield to ground or GND (whichever works best)! ... -
Page 18: Digital Communication
In case of long lines there is a drop voltage at the ground wire and the mV- output is distorted. Because of that the brown wire can be used as ground supply and the t/c- wire (type K) as measuring ground. page 18 TIN-SS K01/1023... -
Page 19: Schematic Circuit Diagrams For Maintenance Applications
TIN-SS Open collector output as additional alarm output The open collector output is an additional alarm output on the TIN-SS and can control an external relay e.g. In addition, the analogue output can be used simultaneously. 8. Schematic circuit diagrams for maintenance... -
Page 20: Software For Parameterization
USB interface Hard disc with at least 30 MByte of free space At least 128 MByte RAM The software only supports USB cables ordered directly from Kobold Messring, see USB-interface TIN-ZSIA 9.1 Installation You can download the software for parameterization and data recording for ®... -
Page 21: Communication Settings
Distance to Spot size. The spectral filter selects the wavelength range, which is relevant for the temperature measurement. The detector in cooperation with the processing electronics transforms the emitted infrared radiation into electrical signals. TIN-SS K01/1023 page 21... -
Page 22: Emissivity
CAUTION: On all three methods the object temperature must be different from ambient temperature. page 22 TIN-SS K01/1023... -
Page 23: Characteristic Emissivity
Blow off loose particles using clean compressed air. The lens surface can be cleaned with a soft, humid tissue (moistened with water) or a lens cleaner (e.g. Purosol or B+W Lens Cleaner). Never use cleaning compounds which contain solvents (neither for the lens nor for the housing). TIN-SS K01/1023 page 23... -
Page 24: Technical Information
TIN-SS 13. Technical Information Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 14. Order Codes Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 15. -
Page 25: Disposal
(Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1. „Cd" stands for cadmium 2. „Hg" stands for mercury 3. „Pb" stands for lead 4. „Li" stands for lithium Electrical and electronic equipment TIN-SS K01/1023 page 25... -
Page 26: Eu Declaration Of Conformance
TIN-SS 17. EU Declaration of Conformance We, KOBOLD Messring GmbH, Nordring 22-24, 65719 Hofheim, Germany, declare under our sole responsibility that the product: Infrared Pyrometer Model: TIN-SS to which this declaration relates is in conformity with the following EU directives... -
Page 27: Appendix A - Table Of Emissivity For Metals
TIN-SS 18. Appendix A – Table of emissivity for metals 19. Appendix B - Table of emissivity for non-metals TIN-SS K01/1023 page 27... - Page 28 Therefore, those peaks can only be seen with a delay on the signal output. The function Smart Averaging eliminates this disadvantage by passing those fast events without averaging directly through to the signal output. Signal graph with Smart Averaging function Signal graph without Smart Averaging function page 28 TIN-SS K01/1023...
