StarTech.com P2DD46A2-KVM-SWITCH Quick Start Manual

Dual Monitor KVM Switch - DisplayPort - 4K 60Hz
Product ID
P2DD46A2-KVM-SWITCH / P4DD46A2-KVM-SWITCH

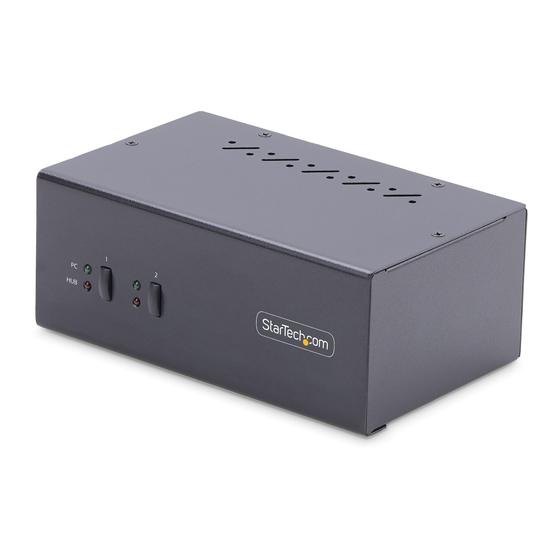

Front
2 2
1
1
Rear
3 4
7
8

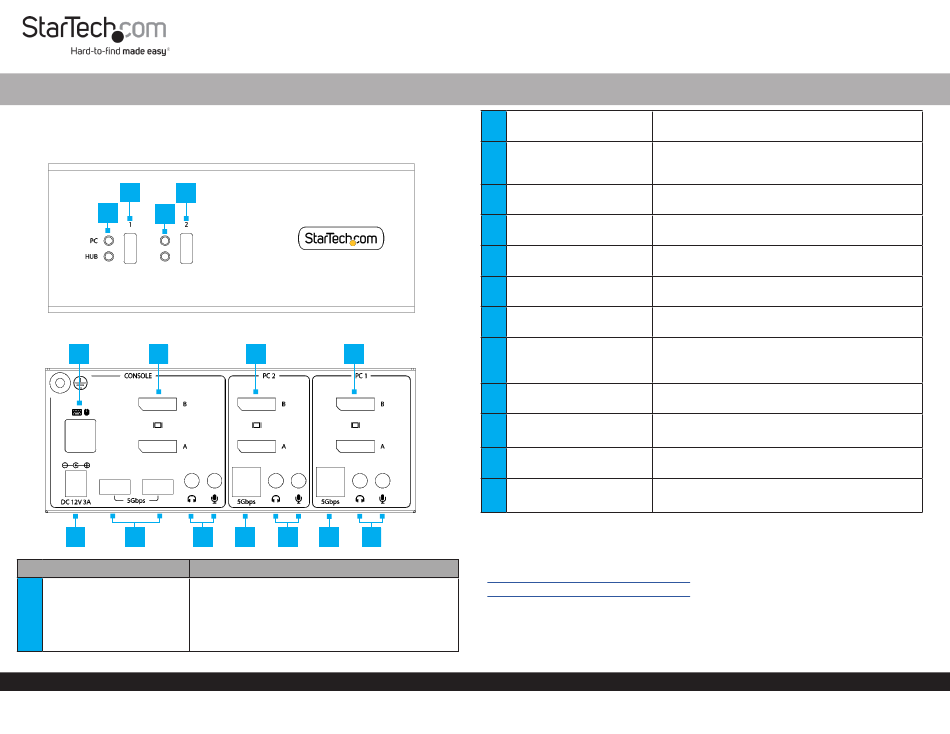

Component
1 LED Indicators
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
*P2DD46A2-KVM-SWITCH shown
5 6
10 12
9 11 13
Function
PC LED: Solid Green when a Host Connection is
•
detected
PC LED: Blinking Green when a Host Connection
•
is not detected
Hub LED: Solid Red when the PC Port selected
•
•
2 Push Button Selector
•
3
USB HID Ports
•
4 Console DisplayPort Ports
•
5
PC2 DisplayPort Inputs
•
6 PC 1 DisplayPort Inputs
•
7 DC Power Input Port
•
8
USB Hub Ports
•
9
Console Audio Ports
•
•
10 PC2 USB Host Connection
•
11 PC2 Audio Ports
•
•
12
PC1 USB Host Connection
•
13 PC1 Audio Ports
•
Product Information
For the latest manuals, product information, technical specifications, and declarations of
conformance, please visit:
www.StarTech.com/P2DD46A2-KVM-SWITCH
www.StarTech.com/P4DD46A2-KVM-SWITCH
Package Contents
KVM Switch x 1
•
Universal Power Adapter (NA/JP, EU, UK, NZ) x 1
•
Quick-Start Guide x 1
•
Quick-Start Guide
Press the Button to switch to the corresponding
PC
Connect a Human Interface Device (HID) (e.g.
Keyboard, Mouse, Trackpad, Number Keypad, or
Drawing Tablet)
Connect to DisplayPort Inputs on two
DisplayPort Displays
Connect to two DisplayPort Output Ports on
PC2
Connect to two DisplayPort Output Ports on
PC1
Connect the supplied Universal Power Adapter
to power the KVM Switch
Connect up to two SuperSpeed USB 5Gbps (USB
3.2 Gen 1) Devices
Green: Connect an Audio Device (e.g. Speakers
or Headphones)
Pink: Connect a Microphone
Connect to a Computer with a USB-A (5Gbps)
Port
Green: Connect to a Headphone Port on PC2
Pink: Connect to a Microphone Port on PC2
Connect to a Computer with a USB-A (5Gbps)
Port
Green: Connect to a Headphone Port on PC1
Pink: Connect to a Microphone Port on PC1
Manual Revision: March 16, 2023 3:53 PM
