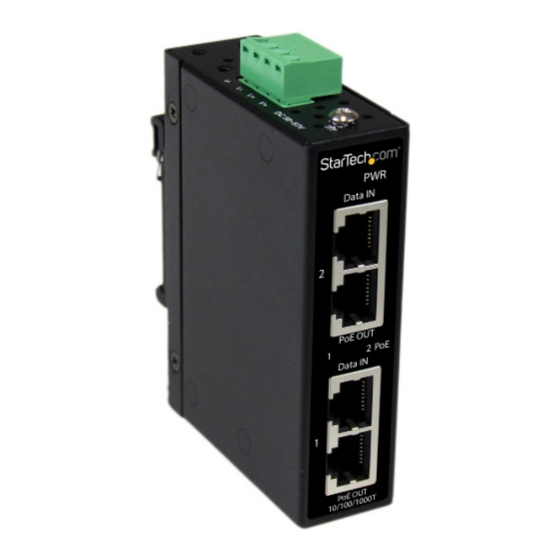

Industrial 2 Port Gigabit PoE+ Injector
48V / 30W - Wall-Mountable
POEINJ2GI
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
IT: Guida per l'uso - it.startech.com
JP: 取扱説明書 - jp.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/25/2018
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com POEINJ2GI
Summary of Contents for StarTech.com POEINJ2GI
- Page 1 FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com IT: Guida per l’uso - it.startech.com JP: 取扱説明書 - jp.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 05/25/2018...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 Product Overview ..................2 Terminal Block Power Connector ......................3 LED Indicators............................. 3 Pinout ................................4 Din Rail / Wall Bracket Installation ....................... 6 Hardware Installation ..........................6 Installing the Ground Wire ........................ -
Page 4: Introduction
Introduction Packaging Contents • 1 x 2 Port PoE Injector • 1 x DIN Rail Bracket w/ Screws • 2 x Wall Mount Brackets w/ Screws • 1 x 4-Pin Terminal Block • 2 x Dust Covers (RJ-45) • 1 x Power Cable w/ Female DC Jack •... -
Page 5: Terminal Block Power Connector
Terminal Block Power Connector LED Indicators PWR (Green) Solid: Power is connected and functioning Solid: PoE device detected PoE LED x 2 (Blue) Flashing: Detecting PoE device Off: No PoE device detected Instruction Manual... -
Page 6: Pinout
Pinout 1000Base-T RJ-45 Input (Data Only) RJ-45 Output (Data and Power) Symbol Description Symbol Description BI_DA+ Data BI_DA+ BI_DA+ (Vdc+) Data BI_DA+ and Feeding power (+) BI_DA- Data BI_DA- BI_DA- (Vdc+) Data BI_DA- and Feeding power (+) BI_DB+ Data BI_DB+ BI_DB+ (Vdc-) Data BI_DB+ and Feeding power (-) - Page 7 10/100Base-TX RJ-45 Input (Data Only) RJ-45 Output (Data and Power) Symbol Description Symbol Description Data Receive Rx+ (Vdc+) Data Receive and Feeding power (+) Data Receive Rx- (Vdc+) Data Receive and Feeding power (+) Data Transmit Tx+ (Vdc-) Data Transmit and Feeding power (-) Not connected Not connected...
-
Page 8: Din Rail / Wall Bracket Installation
Din Rail / Wall Bracket Installation If you are mounting the POEINJ2GI product onto either a DIN Rail or to a wall, you will first need to attach the appropriate bracket(s) to the device as shown below. Hardware Installation 1. Connect an Ethernet cable from the desired source network device (i.e. computer, router, switch, etc.) to the “Data In”... -
Page 9: Installing The Ground Wire
Installing the Ground Wire Note: Grounding is recommended in environments with high levels of electromagnetic interference (EMI), or frequent electrical surges. 1. Using a Phillips Head Screwdriver (sold separately) remove the Grounding Bolt. 2. Attach the Grounding Wire to the shaft of the Grounding Bolt. 3. -
Page 10: Specifications
Specifications Number of Ports Industry Standards IEEE 802.3at PoE, IEEE 802.3af PoE EMS: EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 Regulatory Approvals Shock: IEC60068-2-27 Free Fall: IEC60068-2-32 Vibration: IEC60068-2-6 Safety: EN60950-1 4 - RJ-45 Female Connector(s) 1 - Terminal Block (4 Wire) Female Maximum Data Transfer Rate... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
