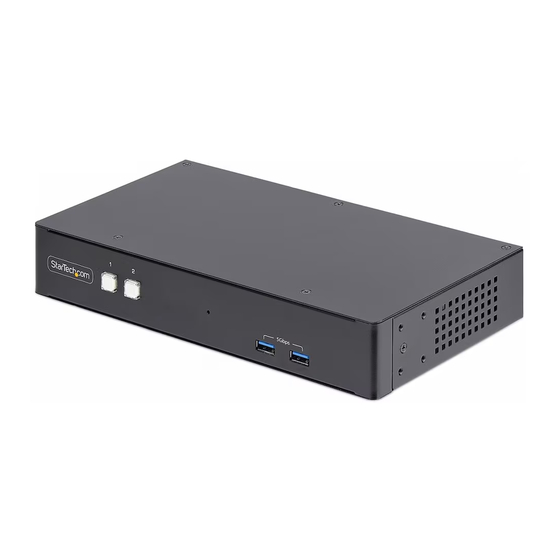

StarTech.com P2DD46A22-KVM-SWITCH Quick Start Manual

2-Port Dual Monitor KVM Switch - DisplayPort - 4K 60Hz - Serial Control
Product ID
P2DD46A22-KVM-SWITCH
Front
1
Rear
4 5 6
11
12 13
Component
1 Host Push Button Selector
2
Reset Button
3 USB Hub Ports
KVM Serial Connection
4
Port
5
Console RS232 Port
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
2
3
7 8 9 10
14 15 16 17
Function
Press to switch the KVM Switch to the
•
corresponding PC
Solid Orange: PC1 or PC2 (Port is Selected)
•
Reboots the KVM Switch
•
Connect up to two SuperSpeed USB 5Gbps (USB
•
3.2 Gen 1) Devices
Connect to a RS232 Port on a Host PC
•
Used for Serial Control of the KVM Switch (e.g.
•
sending commands to changing ports)
Connect to a DB9 RS232 Device
•
•
6
Console Audio Ports
•
7
PC2 RS232 Port
•
•
8 PC2 Audio Ports
•
9 PC1 RS232 Port
•
•
10
PC1 Audio Ports
•
•
11 DC Power Input Port
12
Console DisplayPort Ports
•
•
13
USB HID Ports
•
14
PC2 DisplayPort Inputs
•
15 PC2 USB Host Connection
•
16
PC 1 DisplayPort Inputs
•
17 PC1 USB Host Connection
Product Information
For the latest manuals, product information, technical specifications, and declarations of
conformance, please visit: www.StarTech.com/P2DD46A22-KVM-SWITCH
Package Contents
KVM Switch x 1
•
Power Adapter x 1
•
Quick-Start Guide x 1
•
Quick-Start Guide
Green: Connect an Audio Device (e.g. Speakers
or Headphones)
Pink: Connect a Microphone
Connect to a DB9 RS232 Port on PC2
Green: Connect to a Headphone Port on PC2
Pink: Connect to a Microphone Port on PC2
Connect to a DB9 RS232 Port on PC1
Green: Connect to a Headphone Port on PC1
Pink: Connect to a Microphone Port on PC1
Connect the included Power Adapter to power
the KVM Switch
Connect to two DisplayPort Displays
Connect a Human Interface Device (HID) (e.g.
Keyboard, Mouse, Trackpad, Number Keypad, or
Drawing Tablet)
Hot-key Commands will only work if the
•
Keyboard is connected to one of the USB HID
Ports
Connect to two DisplayPort Output Ports on
PC2
Connect to a Computer with a USB-A 5Gbps
(USB 3.2 Gen 1) Port
Connect to two DisplayPort Output Ports on
PC1
Connect to a Computer with a USB-A 5Gbps
(USB 3.2 Gen 1) Port
Manual Revision: September 7, 2023 8:40 AM
