StarTech.com P4A20132-KM-SWITCH Quick Start Manual

4-Port USB Keyboard and Mouse Switch with Mouse Roaming

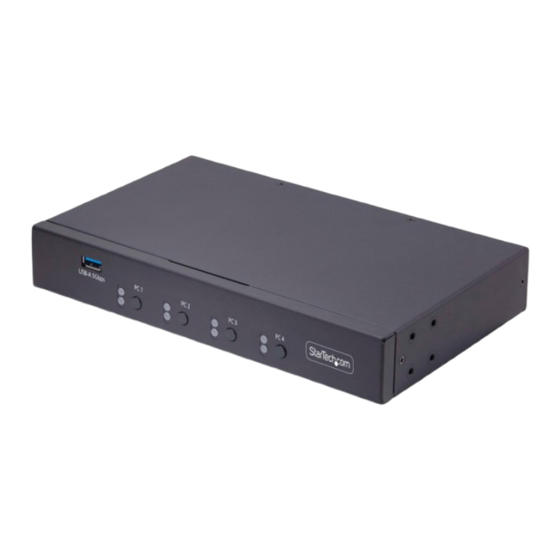

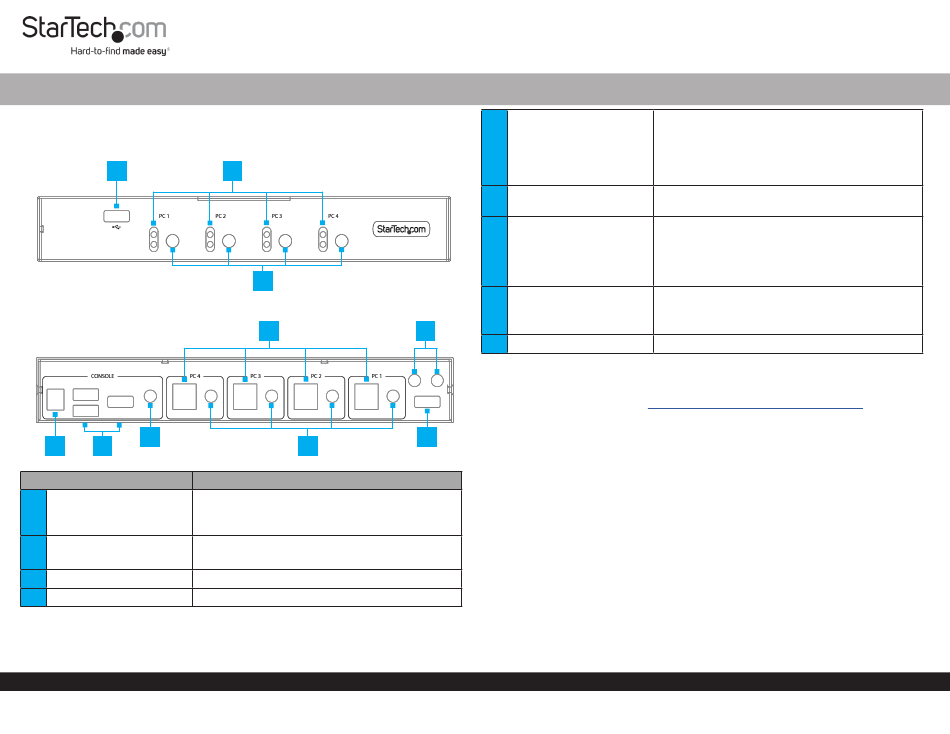

Product Diagram
P4A20132-KM-SWITCH
Front View
1
Rear View
8
6 7
Port
1 USB 5Gbps Hub Ports
2 LED Indicators
3
Port Selection Buttons
4 USB Host Connection
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
2
3
4
9
Function
Connect up to two SuperSpeed USB 5Gbps
•
Devices
Front (x1) and Rear (x1)
•
Solid Blue: Connected PC is powered on
•
Solid Red: Indicates the selected PC
•
Press and release to select PC 1 - 4
•
Connect to a Computer with a USB 5Gbps Port
•
5 USB Audio Ports
6
DC Power Input Port
7
USB HID Ports
8 Console Audio Port
5
9
PC Audio Ports
Product Information
For the latest requirements and to view detailed instructions on all product functionality
in a full user manual, please visit:
Requirements
1
Source PCs
• Computers x 4
• SuperSpeed USB 5Gbps Type-B Cables x 4
• (Optional) 3.5mm 3-Position TRS Audio Cables (Male to Male) x 4
Console
• USB Mouse x 1
• USB Keyboard x 1
• (Optional) Audio Device (e.g. Headphones) x 1
• (Optional) SuperSpeed USB 5Gbps Peripheral Devices x 2
Package Contents
• KM Switch x 1
• Universal Power Adapter (NA/EU/UK/ANZ)x 1
• Quick-Start Guide x 1
Quick-Start Guide
Green: Connect an Audio Device (e.g. Speakers
•
or Headphones)
Pink: Connect a Microphone
•
Does not require PC Audio Ports to be
•
connected from PCs 1 - 4
Connect the included Power Adapter to power
•
the KM Switch
Connect a USB Human Interface Device (HID)
•
(e.g. Keyboard, Mouse, Trackpad, Number
Keypad, or Drawing Tablet)
Hotkey Commands will only work if the Keyboard
•
is connected to one of the USB HID Ports
Connect an Audio Device (e.g., Headphones)
•
Provides pass-through and switching of PC
•
Audio Ports 1 - 4
Connect to an Audio Output from PCs 1 - 4
•
www.StarTech.com/P4A20132-KM-SWITCH
Manual Revision: November 15, 2023
