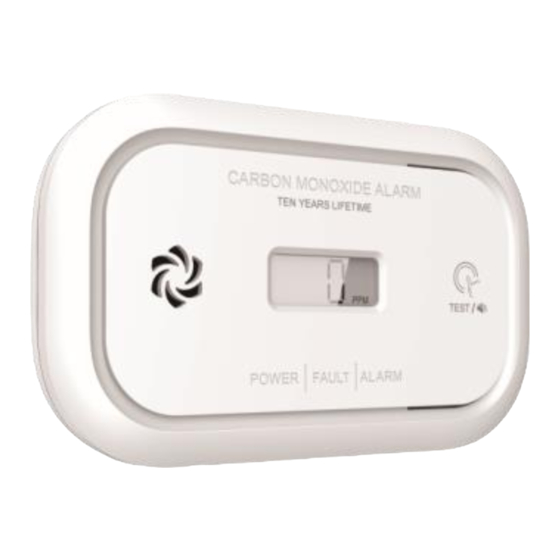

CARBON MONOXIDE ALARM USER MANUAL
The symbols above mean that the CO Alarm is suitable for
use in domestic premises (including static caravan holiday
homes), caravans, motor caravans and boats.
Please take a few minutes to thoroughly read the user manual
before operating or servicing and familiarize yourself and your
family with its operation. And save for future reference.
CAUTION:
This CO alarm is designed for indoor use only. Do not expose to rain
or moisture. Do not knock or drop the detector. Do not open or tamper
with the alarm as this could cause malfunction.
The alarm will not protect against the risk of carbon monoxide
poisoning when the battery has drained.
Installation of the alarm should not be used as a substitute for
proper installation, use and maintenance of fuel burning appliances
including appropriate ventilation and exhaust systems.
This CO alarm can only detect CO. Please do not misuse this device
as a smoke alarm or a combustible gas detector.
WARNING! - DO NOT try to repair the device, it has the risk of
electric shock or malfunction if the device is tampered with.
Table of Contents
1. Installation instructions
9. Manufacturer/Customer service information
10. Warranty Information
11. Warranty card
1. Installation instructions:
When choosing your installation locations, make sure you
can hear the alarm from all sleeping areas. If you install
only one CO alarm in your home, install the alarm near
bedrooms. Not in the basement or furnace room. The
recommended position for the unit should be at least 1.8
meters (about 6 feet) above the floor level. The unit is
suitable for desktop placement.
CAUTION: This alarm should be installed by a competent
person.
1.2 Installation step
The device can be installed in two ways. Installation steps
of the first way.
1: Drill two ф 5.0mm holes on the wall, the distance between
the centers of the two holes is 60mm, and then insert the two
provided plastic plugs into the holes.
2: Hold the bracket by hand and align the two plastic plugs
to fix them first.
3: Insert and tighten the two provided screws.
4: Put the battery into the battery box.
5: Install the alarm on the bracket.
6: Use the TEST/SILENCE button to test the device. Ensure
that the sound of the device is in alarm mode.
CAUTION:
If the device is installed on a caravan or boat, plastic plugs are not
required. Use the self-tapping screws provided to install the device in a
wooden area.
Installation steps of the second way.
Put the battery into the battery box.
2: Install the bracket on the alarm.
3: Paste 3M tape on the bracket.
4: Fix the alarm at the correct position.
5: Use the TEST/SILENCE button to test the device.
Ensure that the sound of the device is in alarm mode.
WARNING! - DO NOT install the device in direct sunlight or high
temperature environment.
1 / 7
1:
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ELRO FC5003
Summary of Contents for ELRO FC5003
- Page 1 CARBON MONOXIDE ALARM USER MANUAL 1.1 Installation location When choosing your installation locations, make sure you can hear the alarm from all sleeping areas. If you install only one CO alarm in your home, install the alarm near bedrooms. Not in the basement or furnace room. The recommended position for the unit should be at least 1.8 meters (about 6 feet) above the floor level.
- Page 2 Dust, grease and household chemicals can affect the sensor. ■ Keep out of damp and humid areas such as the bath room. Avoid spraying aerosols near the CO alarm. ■ Do not install in areas where the temperature is below-10 ℃...
- Page 3 The FAULT indicator (yellow LED) is used to indicate 3.3 CO alarm warning fault or warning status of the CO alarm. When the device detects a dangerous level of CO, the device will emit a loud alarm pattern. The alarm signal pattern is 4 beeps followed about 2.5 seconds of silence.
- Page 4 NOTE: The silence feature of low battery voltage warning is 3.11 Weekly test temporary action to cancel warning sound effect, you need replace Recommend test the alarm weekly by pressing the the battery as soon as possible. TEST/SILENCE button to ensure the normal operation of the equipment.
- Page 5 WARNING! - The following substances can affect the sensor and may 5. Battery installation/replacement: cause false actions: methane, propane, isobutene, isopropanol, Once chirps with corresponding FAULT indicator (yellow ethylene, benzene, toluene, ethyl acetate, hydrogen sulfide, sulfur LED) flashing once every 40 seconds indicates that the dioxides, alcohol based products, paints, thinner, solvents, battery is adhesives, hair sprays, after shaves ,perfumes and some cleaning...
- Page 6 CO show reduced ability to exercise and the time of onset of exercise-induced angina pectoris in such 8. Specification: patients exposed to low levels of CO is reduced. FC5003 Model: EN 50291-1:2018 Carbon monoxide readily crosses the placental barrier and...
- Page 7 Go to www.elro.eu to receive a quick answer to your question. Here you will find answers to frequently asked questions, detailed installation videos and the most recent version of a product manual.
