Summary of Contents for ELRO DWH SERIES

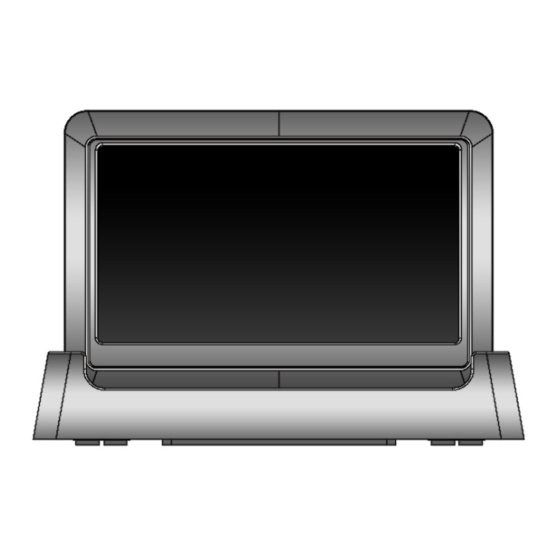

- Page 1 DWH SERIES VIDEO SECURITY SYSTEM Installation and Operation Instruction Manual This manual should be retained in a safe place for future reference...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT NOTES READ BEFORE START REQUIREMENT FOR REMOTE VIEW PLANNING YOUR LAYOUT SAFETY INSTALLATION TIPS KIT CONTENTS QUICK START GUIDE SETUP THE CAMERA SETUP THE TOUCH CREEN MONITOR / RECEIVER SYETEM OPERATION REMOTE ACCESS GETTING TO KNOW THE RECEIVER AND CAMERA INSTALLATION SETTING THE CAMERA CHANNEL PAIRING THE CAMERA TO RECEIVER... - Page 3 ALARM SETUP SCREEN PERIOD MELODY SYSTEM SETUP SCREEN POWER SAVING SCREEN AUTO LOCK TIME CLOCK ALARM TIME SETTING TIMER FORMAT STORAGE SYSTEM UPGRADE LANGUAGE QUICK TIPS REMOTE ACCESS OVERVIEW DOWNLOADING APPS ANDROID iPHONE/iPAD CONNECTING TO THE INTERNET MAINTAINING THE SYSTEM UPGRADING YOUR FIRMWARE TROUBLE SHOOTING PRODUCT SPECIFICATION...
-
Page 4: Important Notes
IMPORTANT NOTICE Please Read Before You Start... - Page 5 FCC/CE WARNING This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules and ETSI (EN) 300 328. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 6: Requirement For Remote View
System “Device ID” and “Password” are provided on a label applied at the back of the LCD Monitor (behind the pull out stand). The “Device ID” and “Password” are needed for remote viewing. For security purpose, it is recommenced for user to copy the “Device ID”... -
Page 7: Planning Your Layout
PLANNING YOUR LAYOUT NOTE: The camera has an open field RF operating range of up to 150m. SAFETY AND INSTALLATION TIPS LCD Touch Screen Monitor keep away from heat sources and high temperature places Avoid direct sunlight Avoid humid places ... - Page 8 any holes through an external wall for a cable, ensure the hole is sealed up using a suitable sealant to prevent drafts. To prevent a fire or electrical shock hazard, do not attempt to open the housing while the camera is exposed to rain water or wet conditions. Do not expose any wiring connections to weathering.
-
Page 9: Kit Contents
KIT CONTENTS 1 x Wireless Camera 1 x Wireless Touch Screen LCD Monitor w/Cradle 2 x 5V/1A Power Adaptor 1 x Camera Stand 1 x Antenna 1 x Internet Cable 1 x Fixing Pack 1 x Instruction Manual... -
Page 10: Quick Start Guide
QUICK START GUIDE For further details on the installation of the camera bracket and fixings please refer to page14. Set Up the Camera Screw the camera antenna clockwise onto the back of the camera Screw the camera bracket clockwise onto the lower body of the camera. -
Page 11: Syetem Operation
The monitor is fitted with a rechargeable battery and can operate for up to 2 hours on battery power once fully charged (w/Power Saving function activated). The monitor can be carried around anywhere within operating range of the camera(s), but should be used in a dry environment as it is not weatherproof. -
Page 12: Getting To Know The Receiver And Camera
GETTING TO KNOW THE MONITOR AND CAMERA Cradle Antenna Receiver (back/side) (back/side) Reset Receiver Power Power Dock Data Cable Connection SD slot AC Power Connection Pull-Out AC Power Stand Connection Camera Front view Back view Antenna connector Power status Power pigtail Link status Power/Pair... -
Page 13: Installation
INSTALLATION Setting the Camera Channel (Optional) The wireless camera will be supplied preset to channel 1. The monitor supports up to 4 cameras. Follow the steps below in Camera Setup section (P.20) to setup or change the monitor channel of the camera. -
Page 14: Camera Installation
Camera Installation: A. Secure camera stand on the wall B. Loosen the thumb screw C. Adjust the camera to the correct viewing position then tighten the screw and T-bolt. -
Page 15: System Introduction
SYSTEM INTRODUCTION Your monitor’s system software operates through a series of screens that let you choose groups of operations. For example, when you tap on the camera icon in the Pop-up menu, you can set how you want the main viewing screen, “the Live screen”... - Page 16 WHAT THE ICONS MEAN Icon What it does Select how you want the Live screen to display camera input: Camera Scan between cameras (5 seconds) Mode Quad view (all paired cameras display) Full view (1 camera displays on full screen) Volume Adjust the volume level.
-
Page 17: Zoom Feature
Live Screen Displays The Live screen displays in 2 views - Quad View or Full View. Quad View displays the images in 4 quadrants (only display camera that is ON). Tap a quadrant to display single camera view / full view. Tap on that image again to return to Quad View. -
Page 18: Playing Back Recorded Video
Playing Back Recorded Video 1. Tap on the highlighted day containing the recording you want to view. The Record List screen will display that day’s recordings listed in a folder. If you tap on a day that is not highlighted, a folder displays with no recordings listed. - Page 19 Main Screen Sub Screens What it Does Camera Setup Pairs new cameras to the receiver. Camera Setup Camera on Makes the cameras visible to the monitor. Brightness Brightens or darkens the video of that camera. Motion Detection Records when something moves in front of the camera.
-
Page 20: System Operation
SYSTEM OPERATION Camera Setup Screen Tap on camera setup. This screen should display: Camera Pairing Your camera is paired to the monitor at the factory to channel 1. To add new camera(s) to your system, you have to pair it to the different channel(s). -
Page 21: Brightness
Brightness Tap the camera to change brightness level. The default brightness is 0, and the range is from -2 through 2. Recorder Setup Screen Motion Detection Tap the camera’s to set the sensitivity to Off, Low or High. Default = low. The screen will return to the Motion Detection screen after 10 seconds or when you press the Back icon. -
Page 22: Email Alert
Email Alert The system can notify you when it detects motion from any camera by sending you an email alert. The email alert contains information such as the time that motion was detected and by which camera. In order to enable the Email Alert function, you must enter both incoming and outgoing email addresses. - Page 23 4. Repeat the previous step for the Password The password entered here must be the same password as the password for the outgoing email account. 5. Repeat Step 3 for the Email To account. < 6. Tap OK to save the settings, then tap to return to the previous screen.
-
Page 24: Schedule Record
Schedule Record Up to 5 scheduled recording sessions available in a single day. You are limited to the size of the SD card for how long a total recording time you have. These recording sessions must begin and end within a single 24- hour period. -
Page 25: Clear A Schedule Record
Clear a Scheduled Recording 1. Access the Schedule Record screen. 2. Tap on the scheduled recording you want to clear (1-5). The screen displays the settings for that schedule. 3. Tap CLEAR. The screen resets to the default values for that recording slot. Network Setup Screen The Network Setup screen allows you to select your internet type, set a security code. -
Page 26: Security Code Setup
3. Tap OK at the system reboot prompt. The Network Setup screen displays. Security Code Set up your security code to limit who can have access to the system from a remote location. 1. Tap Security Code icon to display the Security Code screen. 2. -
Page 27: Network Information
4. Enter your security code. 5. Tap OK. The system will return to Network Setup screen. Note: Security code must be entered to gain remote access. Network Information 1. Tap the Network Information icon to display the Network Information screen. 2. -
Page 28: Period
Period This selection allows you to select the alarm/siren duration for Clock Alarm and Timer. 1. Tap Period. The Set Siren Duration screen displays. 2. Select the alarm duration time required 3. Tap the BACK arrow to return to the previous screen. Melody This selection allows you to select a melody for the siren. -
Page 29: System Setup Screen
System Setup Screen Power Saving In Power Saving mode, the monitor will shut off LCD after idle for 2 minutes. Press Power button once to reactive the monitor. If a motion detection event or scheduled recording begins, the LCD turns back on automatically. 1. -
Page 30: Screen Auto Lock
Screen Auto Lock In Auto Lock mode, the monitor will enter screen lock mode after it has been idle for 2 minutes. Auto Lock disables the touch screen and removed the icons from the display. 1. Tap Screen Auto Lock 2. -
Page 31: Clock Alarm
Clock Alarm This feature operates as an independent alarm clock. It does not affect the operation of live video or recording video. 1. Tap to display the Clock Alarm screen. 2. Tap on an alarm button (total of 5 to select from). 3. -
Page 32: Timer
3. Tap on the AM/PM block to switch between the two. 4. Tap SAVE when you are finished. Timer This feature operates as an independent alarm clock. It does not affect the operation of live video of recoding video. 1. Tap to display the Time Setting screen. -
Page 33: System Upgrade
System Upgrade To upgrade the firmware from the vendor website, you must download and store it in the SD card root directory. Refer to Upgrading Your System Software (p.33 and p.36) Language English is the default language. If you change the language, all system settings default to the original factory settings. -
Page 34: Quick Tips
Tap on a subject to display the information. REMOTE ACCESS Overview This DWH Series Video Security System lets you view live video from your iPhone, iPad, or Android smartphone or tablet. Free apps are available through the iTunes App Store or the Android Market. -
Page 35: Connecting To The Internet
Connecting to the internet The docking cradle charges your monitor as well as provides an internet connec tion. When you are connected to the internet, live video will continue to display on the monitor, but monitor's touch operation will become limited. Monitor's touch operation will resume normal after disconnecting from the internet by select Charge Only option from the pop up menu, or remove monitor from the docking cradle. -
Page 36: Maintaining The System
Connecting to the Intranet (Home Network) When the monitor is placed in the cradle and "charge only" is selected, you can still access your live video from smartphone(s) or tablet(s) as long as those devices are also connected to the same network as the monitor. For example, your smartphone is connected to your home network via WiFi, in this case, live video will still be displayed on the monitor as well as on the smartphone. -
Page 37: Trouble Shooting
TROUBLE SHOOTING TROUBLE SOLUTIONS Screen lock may be on. Tap the Power The receiver and button to unlock the screen. cameras are on but there is no image on the screen Make sure the camera is power on. Make sure the monitor has enough charge / connect it to AC/DC adaptor. - Page 38 improve the night vision or place it in a well lit area (recommend to install a security lamp to improve lighting). LIVE screen has no icons. Screen lock may be on. Tap the Power button to unlock the screen. System locked up Power off the receiver and restart.
-
Page 39: Product Specification
PRODUCT SPECIFICATION Camera Receiver Maximum channels 150 metres in open space Communication Range 800 x 480 LCD Monitor Resolution Single Camera: 480x272 / Multiple Camera: 320x240 Camera Resolution Operating Temperature C ~ 50 DC 5V / 1A Operating Voltage Current Consumption 500mA (MAX) 800mA (MAX) Night Vision...
