Valcom V-9934 Specification Sheet

GENERAL
The V-9934 is a Remote Microphone for use with the
V-9933A, Noise Sensing Volume Control.

SPECIFICATIONS

Purpose
The V-9934 provides remote noise sensing for the
V-9933A.
Features
Self-contained microphone and pre-amp
Phantom powered; no power supply required
Screw terminal connections
Up to four units may be paralleled on one
V-9933A
Each V-9934 may be on a 1000' wire run
Uses CAT3/5/5e/6 twisted pair telephone cable
(One pair)
Dimensions/Weight
1.50" H x 2.90" W x .81" D
(3.81cm H x 7.37cm W x 2.06cm D)
1.0 oz. (.03 kg)
Mounting
The V-9934 is designed for wall mounting. When
mounting this unit in a noisy area, make sure that the
front is not obstructed in any way. It should be
mounted in the noisy area 12-15 feet high. Care
should be taken not to mount the V-9934 directly
adjacent to any noise sources such as HVAC
blowers, ceiling fans, conveyors, etc.

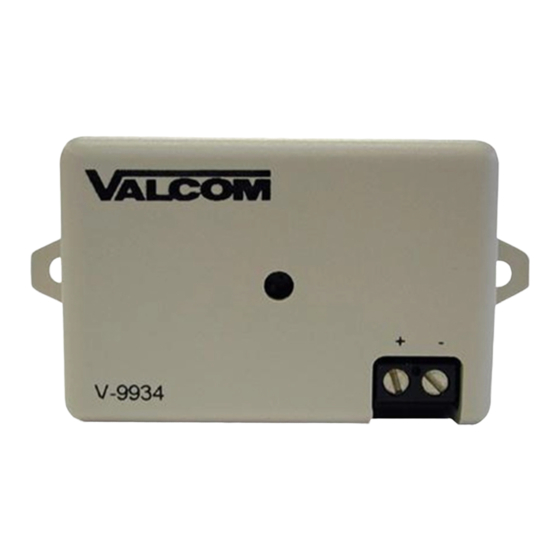

V-9934
REMOTE MICROPHONE
1
TECHNICAL ASSISTANCE
When trouble is reported, verify connections to the
V-9933A.
Assistance in troubleshooting is available from the
factory. When calling, you should have a VOM and a
telephone test set available and be calling from the
job site. Call (540) 563-2000 for Technical Support, or
call (540) 767-1555 for Valcom 24-hour Faxback System
or visit our website at http://www.valcom.com.
The V-9934 is not field repairable. Valcom equipment
contains no user serviceable parts inside. Valcom,
Inc. maintains service facilities in Roanoke, VA.
Should repairs be necessary, attach a tag to the unit
clearly stating your company name, address, phone
number, contact person and the nature of the
problem. Send the unit to:
Valcom, Inc.
Repair and Return Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
