W
QUICK REFERENCE GUIDE

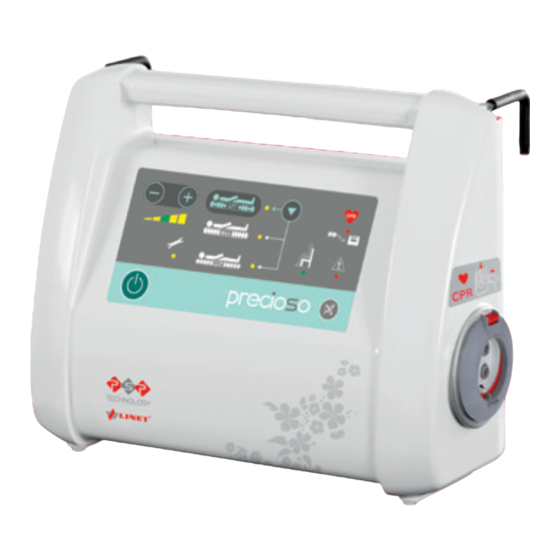

PRECIOSO Series 2
Mattress Replacement or Overlay System
SCU (SYSTEM CONTROL UNIT)
4
3
2
1
13
1.
Activation GO Button
2.
Service Due Indicator
3.
Pressure Level Indicator
4.
Pressure Control Buttons
5.
Alternating Pressure Therapy Mode
6.
Mode Indicators
7.
Mode Selection Button
Precioso2_QRG_UK.indd 1
5
6
7
12
8.
CPR/Air Connector Open Indicator
9.
System Error Indicator
10.
Seat Mode Indicator
11.
Audio Mute Button
12.
Constant Low Pressure Mode
13.
Max Inflate Mode
CONNECTING MATTRESS TO SCU
Connect mattress to SCU as follows:
Air connector must be in Open Mode (1)
Push connector down at an angle of
1
approximately 45° until it clicks into
8
place (2)
To activate CPR reverse the process
2
9
10
11
LINET UK, LINET House 17 Murrills Estate,
Portchester, Hampshire, PO16 9RD
Tel.: 0844 248 1833, Fax: 0844 499 4409
e-mail: info @ linet.uk.com, www.linet.uk.com
4.11.2013 14:17:52
