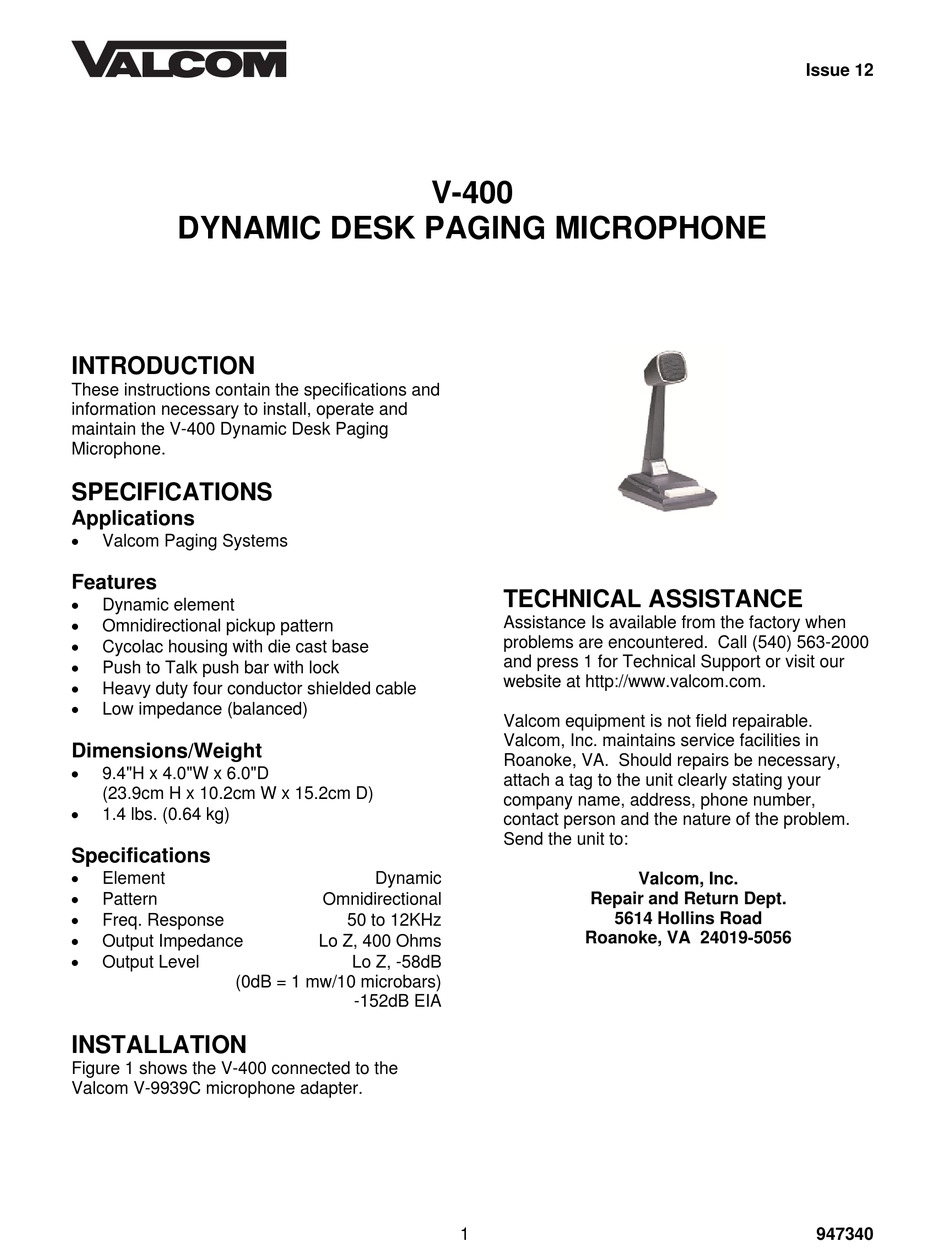

Valcom V-400 Quick Start Manual

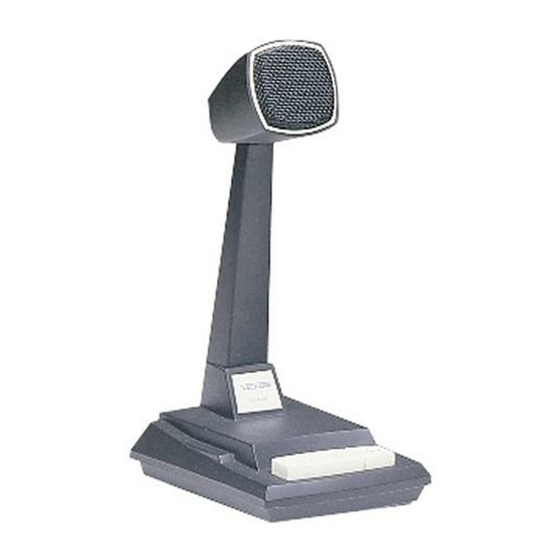

DYNAMIC DESK PAGING MICROPHONE
INTRODUCTION
These instructions contain the specifications and
information necessary to install, operate and
maintain the V-400 Dynamic Desk Paging
Microphone.
SPECIFICATIONS
Applications

Valcom Paging Systems
Features

Dynamic element

Omnidirectional pickup pattern

Cycolac housing with die cast base

Push to Talk push bar with lock

Heavy duty four conductor shielded cable

Low impedance (balanced)
Dimensions/Weight

9.4"H x 4.0"W x 6.0"D
(23.9cm H x 10.2cm W x 15.2cm D)

1.4 lbs. (0.64 kg)
Specifications

Element

Pattern

Freq. Response

Output Impedance

Output Level
(0dB = 1 mw/10 microbars)
INSTALLATION
Figure 1 shows the V-400 connected to the
Valcom V-9939C microphone adapter.
V-400
Dynamic
Omnidirectional
50 to 12KHz
Lo Z, 400 Ohms
Lo Z, -58dB
-152dB EIA
1
TECHNICAL ASSISTANCE
Assistance Is available from the factory when
problems are encountered. Call (540) 563-2000
and press 1 for Technical Support or visit our
website at http://www.valcom.com.
Valcom equipment is not field repairable.
Valcom, Inc. maintains service facilities in
Roanoke, VA. Should repairs be necessary,
attach a tag to the unit clearly stating your
company name, address, phone number,
contact person and the nature of the problem.
Send the unit to:
Valcom, Inc.
Repair and Return Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
Issue 12
947340
