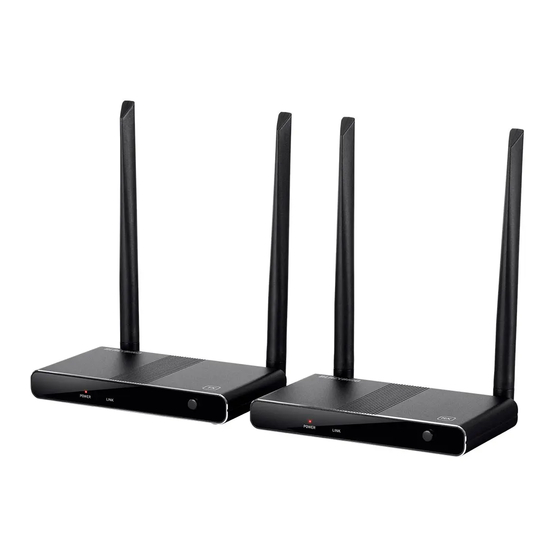

- Page 1 Blackbird™ HDMI® Wireless Extender P/N 30915 User's Manual...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS AND GUIDELINES ............................3 INTRODUCTION ........................................ 4 FEATURES ..........................................4 CUSTOMER SERVICE ....................................4 PACKAGE CONTENTS ....................................5 PRODUCT OVERVIEW ....................................5 Transmitter ........................................5 Receiver ..........................................6 SAMPLE CONNECTION DIAGRAM ..............................7 INSTALLATION ........................................8 MULTICASTING ......................................10 WI-FI FREQUENCY ....................................... -
Page 3: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. ... -
Page 4: Introduction
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-... -
Page 5: Package Contents
PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x HDMI® wireless transmitter 1x HDMI wireless receiver... -
Page 6: Receiver
4. Pair Button: Press the pair button to pair the receiver and transmitter for the first time. Once paired, the receiver and transmitter will automatically connect each time power is applied. 5. HDMI IN: HDMI® input connector for connecting your video source device. 6. -
Page 7: Sample Connection Diagram
4. Pair Button: Press the Pair Button to pair the receiver and transmitter for the first time. Once paired, the receiver and transmitter will automatically connect each time power is applied. 5. HDMI OUT: HDMI® output connector for connecting the remote display. 6. -
Page 8: Installation
INSTALLATION These installation steps will assume extension of video from a laptop or PC to a remote location for remote operation of the computer. For other configurations, skip or alter steps as appropriate. Perform the following steps to install this extender kit. 1. - Page 9 11. Plug the DC barrel connector on one of the included AC power adapters into the DC 5V jack on the receiver, then plug the adapter into a nearby AC power outlet. The Power LED on the receiver will illuminate steadily and the Link LED will begin flashing.
-
Page 10: Multicasting
MULTICASTING This extender has the ability to pair with up to four receivers, allowing you to view video in multiple remote locations. Perform the following steps to pair additional receivers with a single transmitter. 1. Install and pair the first receiver with the transmitter as normal. 2. -
Page 11: Troubleshooting
TROUBLESHOOTING The Link LEDs on the transmitter and receiver are flashing. The transmitter and receiver need to be paired. Simultaneously press the Pair Button on both the transmitter and receiver. Q2: The display connected to the receiver shows the word Scanning. A2: The receiver is unable to find the transmitter. -
Page 12: Technical Support
IR remote control. TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 13: Specifications
SPECIFICATIONS Model 30915 HDMI® Version 1.4b HDCP™ Version Maximum Video Resolution 1920 x 1080p @ 60Hz Bandwidth 4.95Gbps Maximum Connected Receivers Up to 4 Wireless Standard 802.11a/b/g/n Supported Wi-Fi® Frequencies 2.4GHz and 5GHz ISM bands Maximum Connection Distance Up to 164 feet (50 meters) in clear air Modulation Methods BPSK, QPSK, 16-QAM, 64-QAM Deep Color... -
Page 14: Regulatory Compliance
Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense. -
Page 15: Radio Notice For Fcc
This FCC Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Monoprice, including the use of non-approved antennas, could void the user’s authority to operate this device. -
Page 16: Radio Notice For Industry Canada
This IC RSS-210 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Monoprice, including the use of non-approved antennas, could void the user’s authority to operate this device.
