Advantech MIC-75M20 Startup Manual

MIC-75M20

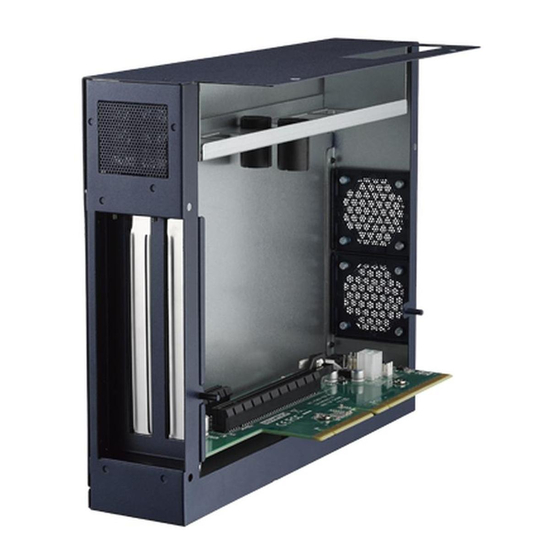

PCIE Expansion Module for MIC-7 Series
Embedded System
Startup Manual
Packing List
Before you begin installing your card, please make sure
that the following items have been shipped:
1. MIC-75M20 Module x1
2. MIC-75M20 Startup Manual x1
3. Warranty Card
4. Card Clamp Pad x 4
5. Wall-Mount BKT (Left) x1
6. Wall-Mount BKT (Righ) x1
If any of these items are missing or damaged, please
contact your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF file.
Acrobat Reader can be downloaded at: get.
adobe.com/reader (Acrobat is a trademark of
Adobe)
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://support.advantech.com.tw/support/default.
aspx
This manual is for the MIC-75M20 Series Rev. A1.
Part No. 20015M2000
Printed in China
P/N: MIC-75M20-00A1E
P/N: 20015M2000
P/N: 2190000902
P/N:1990024989T000
P/N: 1960070545N001
P/N: 1960070543N001
1st Edition
January 2016
Specifications

PCIe Slots

• One PCIex16 socket
Note 1: PCIEx16 power consumes 35W.
• One PCIex4 socket
Note 2: PCIEx4 supports 15W power consumption.
Note 3: MIC-75M20 does not support MIC-7300 series
systems.
Environment
• Operating Temperature:
-20 ~ 60° C with 0.7 m/sec air flow: with 1 x Industrial SSD
without PC expansion boards
0 ~ 45° C with 0.7 m/sec air flow: with 1 x 2.5" HDD
without PC expansion boards
• Storage Temperature: - 40 ~ 85° C (-40 ~185° F)
• Relative Humidity: 95% @ 40° C (non-condensing)
Mechanical
• Dimensions (H x W x D): 92 x 90 x 230 mm
Please add a fan to i-module if the add-on card
Note 1:
total power consumption is over 45W.
MIC-75M20 Startup Manual 1
