Advantech MIC-75G20-10A2 Startup Manual

MIC-75G20-10A2
GPU Card Expansion i-Module for MIC-7 Series
Embedded System
Startup Manual
Packing List
Before you begin installing your i-Module, please make sure
that the following items have been shipped:
1. MIC-75G20 i-Module x 1
10A2
2. 4-Pin phoenix connector x 2
3. SATA cable (30 cm) x 1
4. SATA cable (40 cm) x 1
5. HDD BP power cable x 1
6. GPU power cable
(6- to 6/8-pin) x 2
7. Mounting bracket (L)
8. Mounting bracket (R)
9. Screw for mounting bracket x 6
10. MIC-75G20 Startup Manual x 1 P/N: 20415G2010
If any of these items are missing or damaged, please
contact your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF
file. Acrobat Reader can be downloaded at: get.
adobe.com/reader (Acrobat is a trademark of
Adobe)
Specifications
PCIe Slots
• One PCIe x16 socket
• One PCIe x4 socket
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
This manual is for the MIC-75G20-10 Rev. A1.
Part No. 20415G2010
Printed in China
P/N: MIC-75G20-
P/N: 1652003234
P/N: 1700017838
P/N: 1700020978-01
P/N: 1700024985-01
P/N: 1700023022-01
P/N: 1960005359T00A
P/N: 1960094392N013
P/N: 1930007259-01
1st Edition
November 2022
Specifications (Cont.)
Environment
• Operating Temperature: -10 ~ 60 °C (35W CPU w/ indus-
trial wide-temp. RAM/SSD)
• Storage Temperature: -40 ~ 85 °C (-40 ~ 185 °F)
• Relative Humidity: 95% @ 40 °C (non-condensing)
Mechanical
• i-Module Dimensions: i-Module Dimension (W x H x D):
130 x 192 x 385 mm
• With MIC-7 series: With MIC-7 series (W x H x D): 207 x
192 x 385 mm
Note: Width will be increased by 4 mm with MIC-77xx.

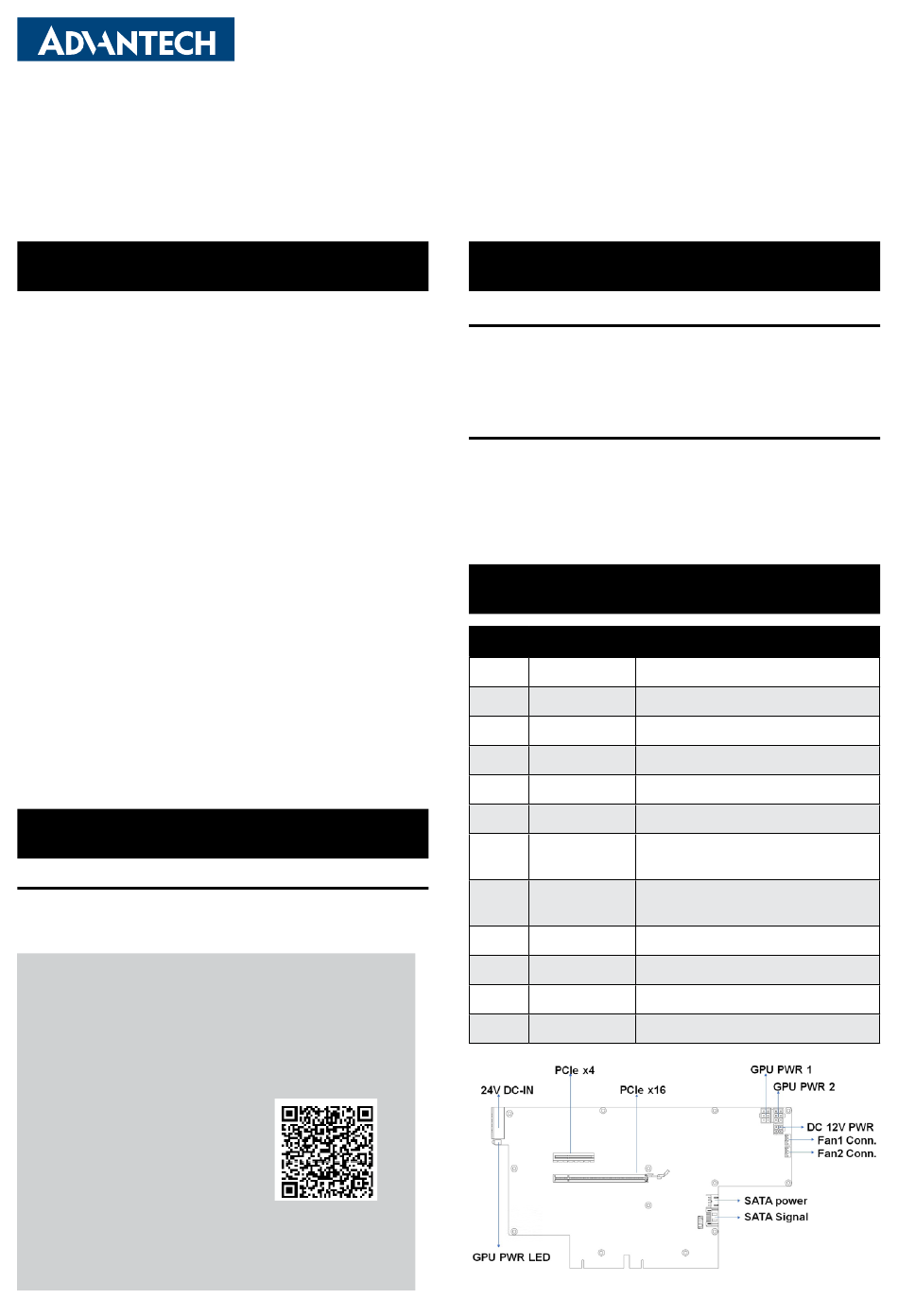

I/O Connectors
Connectors
No. Item Function
1 DCIN1 24V
2 PPCIE1 PCIe x16 slot
3 PPCIE2 PCIe x4 slot
4 SATAPWR1 4-pin SATA power connector (5V)
5 SATA1 SATA signal connector
6-pin power connector for GPU card
6 GPUPWR1
(12V, 17A)
6-pin power connector for GPU card
7 GPUPWR2
(12V, 17A)
8 DC12VOOUT1 4-pin power connector (12V, 5A)
9 SYSFAN1 4-pin fan connector
10 SYSFAN2 4-pin fan connector (reserved)
11 LED GPU card power status
