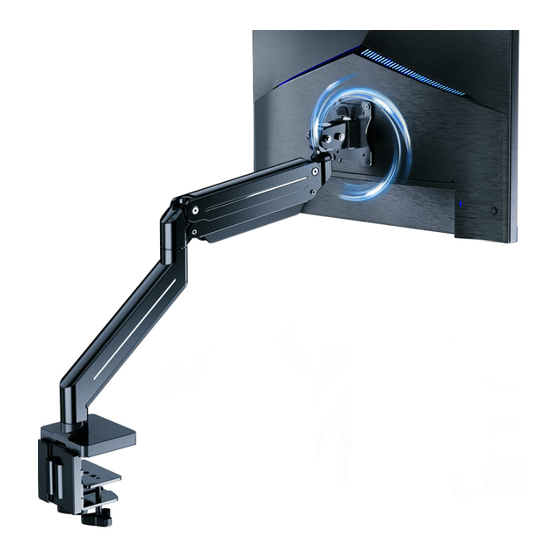

Monitor Desk Mount Instruction Manual
V2.0
Model: EGSS9
Thank you for choosing this ErGear product! At ErGear we strive
to provide you with the best quality products and services in the
industry. Should you have any issues, please don't hesitate to
contact at support@ergear.com (US/CA/DE/UK/FR/IT/ES/AU)
Advertisement
Related Manuals for ErGear EGSS9
Summary of Contents for ErGear EGSS9
- Page 1 Monitor Desk Mount Instruction Manual V2.0 Model: EGSS9 Thank you for choosing this ErGear product! At ErGear we strive to provide you with the best quality products and services in the industry. Should you have any issues, please don't hesitate to...
-
Page 2: Weight Restrictions
75mm/3 in.(W)x75mm/3 in.(H) If your monitor VESA is greater than 100x100 mm/4x4 in. or less than VESA 75x75mm/3x3in., this mount is NOT compatible. If this desk mount is NOT compatible, please contact customer service at support@ergear.com to find a compatible product. - Page 3 Product Features ±180° C-Clamp Mounting Grommet Mounting...
- Page 4 TENSION ADJUSTMENT SHOULD BE DONE ONLY AFTER MOUNT INSTALLATION Do not adjust tension without monitor. 1. Ensure monitor has been attached to the mount. 2. Read your monitor box or manual to find out monitor net weight. 3. Ensure the net weight of monitor (including accessories) is between 2.2~26.4 Ibs (1-12 kg).
- Page 5 Before starting assembly, verify all parts are included and undamaged. Do not use damaged or defective parts. lf you require replacement parts, contact our customer service at support@ergear.com. • Please note: Not all hardware included in this package will be used.
-
Page 6: Install The Base
1. Install the Base A. For Clamp Mounting Warning: Ensure bolts are secured firmly. (Medium Allen Key) (Medium Allen Key) 15/64 in.(6mm) - Page 7 N (Large Allen Key) B. For Grommet Mounting Warning: Ensure bolts are secured firmly. (Medium Allen Key) N (Large Allen Key) N (Large Allen Key)
- Page 8 2. Install the Arm and Arm Extension to Base ±180° ±180° L (Small L (Small Allen Key) Allen Key) ±90° ±90° L (Small L (Small Allen Key) Allen Key) L (Small Allen Key)
- Page 9 3. Attach Monitor to the Arm For Monitor with Flat Back Phillips Screwdriver [not included] For Monitor with Curved or Recessed Back Note: If needed, pull the lock HEAVY! You may need plate back and lift the TV to assistance with this step. seperate the TV from the arm.
- Page 10 4. Adjust Gas Spring Tension 1. If the monitor can stay at the desired height by itself, no adjustment needed. 2. If the monitor rises up, press the arm to keep it in horizontal position and then use the Large Allen Key (N) to turn the bolt clockwise(“-”...
-
Page 11: Tilt Adjustment
5. Tilt Adjustment 1. Slightly loosen two preassembled bolts [T]. 2. Adjust TV to your desired tilt angle. N (Large Allen Key) 3. Retighten both bolts [T] to secure the TV in place. 6. Rotation Adjustment 180° Rotation This function works better for monitors with the center of gravity. - Page 12 7. Route Cables along the Arm Phillips Screwdriver [not include] ② ① ① ② ② ① ① ②...
