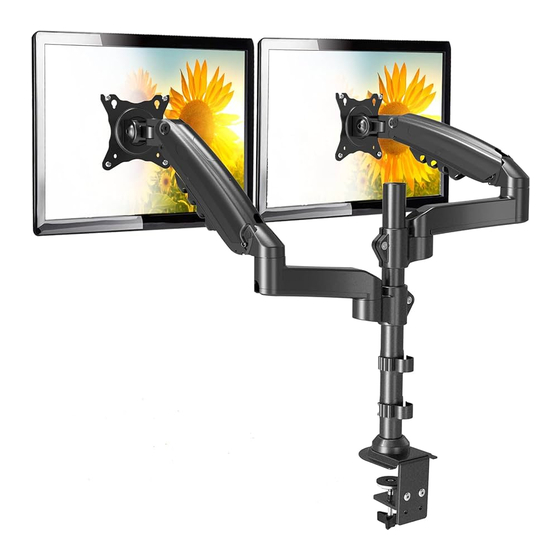

Monitors Desk Mount Instruction Manual
English
Deutsch
Français
Español
Italiano
日本語
Thank you for choosing this Ergear product! At Ergear we strive to
provide you with the best quality products and services in the
industry. Should you have any issues, please don't hesitate to
contact at support@ergear.com (US/CA/DE/UK/FR/IT/ES/AU)
Model: EGDS3
------------------------ 01-13
------------------------ 14-25
------------------------ 26-37
------------------------ 38-49
------------------------ 50-61
------------------------ 62-73
V3.0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ErGear EGDS3
Summary of Contents for ErGear EGDS3
- Page 1 ------------------------ 50-61 日本語 ------------------------ 62-73 Thank you for choosing this Ergear product! At Ergear we strive to provide you with the best quality products and services in the industry. Should you have any issues, please don't hesitate to contact at support@ergear.com (US/CA/DE/UK/FR/IT/ES/AU)
-
Page 2: Weight Restrictions
75mm/3 in.(W)x75mm/3 in.(H) If your Monitor VESA is greater than 100x100 mm/4x4 in. or less than VESA 75x75mm/3x3in., this mount is NOT compatible. If this desk mount is NOT compatible, please contact customer service at support@ergear.com to find a compatible product. - Page 3 Product Features C-Clamp Mounting Grommet Mounting...
- Page 4 TENSION ADJUSTMENT SHOULD BE DONE ONLY AFTER MOUNT INSTALLATION Do not adjust tension without monitor 1. Ensure monitor has been attached to the mount. 2. Read your monitor box or manual to find out monitor net weight. 3. Ensure the net weight of monitor (including accessories) is between 4.4~19.8 Ibs (2-9 kg).
- Page 5 Before starting assembly, verify all parts are included and undamaged. Do not use damaged or defective parts. lf you require replacement parts, contact our customer service at support@ergear.com. • Please note: Not all hardware included in this package will be used.
- Page 6 Supplied Parts and Hardware for Step 2 Arm X2 Cable Clip X2 5/32 in.(4mm) Allen Key Supplied Parts and Hardware for Step 3 Bolt (A) Bolt (B-1) Spacer (B-2) M4x12mm (8pcs) M4x16mm (8pcs) 5mm (8pcs) Supplied Hardware for Step 4 and Step 6 13/64 in.(5mm) Allen Key Supplied Parts and Hardware for Step 8...
-
Page 7: Step 1 Install The Base
Step 1 Install the Base A. For Clamp Mounting A-1 Install the C-Clamp Connect part [X] to pole Warning: assembly [03] Ensure bolts are secured firmly. Detach the c-clamp entirely ① 5/32 in. ② (4mm) Connect part [Y] to part [X] according to the thickness of the desktop The second choice The first choice Secure the base to the desktop... - Page 8 B. For Grommet Mounting 1 Install the grommet bolt Warning: Ensure bolts are secured firmly. Secure the base to desktop using locking plate [E] and butterfly nut [D] Warning: Ensure bolts are secured firmly.
- Page 9 Step 2 Install the Arms Slide the cable clip [05] to the pole assembly [03] Slide arm [01] to the pole assembly [03] Secure the arm [01] to the pole assembly [03] by tightening the preassemble bolts on the arms [01] Ensure bolts are secured firmly.
- Page 10 Step 3 Attach Monitors to the Arms 3-1 Choose Proper bolts 3-2 Install Monitors to the Arms Flat back monitor 0.1-0.2in.(3-5mm) spacing left Screwdriver [Not Included] Round back monitor The tension is preset at 8.8~11 Ibs(4-5kg). After hanging the monitor to the mount,please release the monitor slowly to prevent it from falling suddenly.
- Page 11 13/64 in. (5mm) (1 rotation ≈ 1 lb) Step 5 Rotation Restriction Proper usage directions Non-proper usage directions...
-
Page 12: Step 6 Tilt Adjustment
Step 6 Tilt Adjustment 13/64 in. (5mm) “+” Clockwise: Tighten “-” Counter-clockwise: Loosen Situation 1: If the monitor can stay at the desired tilt angle by itself, no adjustment needed. Situation 2: If the monitor can not stay at the desired tilt angle by itself, turn the bolts clockwise or counter-clockwise as shown until the monitor can stay at the desired tilt angle by itself. - Page 13 Step 8 Route Cables along the Arms Screwdriver [Not Included] Secure the Cable Cover [04] to the arm [01] by tightening the bolts [G] using screwdriver Loosen the preassembled bolts [S] on the Route the cables into the cable guide and arm [01] to detach the cable guide from the secure the cable guide by tightening the arm [01], and keep the bolt for the use in...
- Page 14 Put the cables into the cable clip [05]...
