Thank you for choosing this Ergear product! At Ergear we strive to provide
you with the best quality products and services in the industry. Should you
have any issues, please don't hesitate to contact us at
support@ergear.com.(US/CA/DE/UK/FR/IT/ES/AU)
メール:supportjp@ergear.com
Monitor Table
Model:EGCM1
------------------------ 01-07
------------------------ 08-14
------------------------ 15-21
------------------------ 22-28
------------------------ 29-35
------------------------ 36-42
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ErGear EGCM1
Summary of Contents for ErGear EGCM1

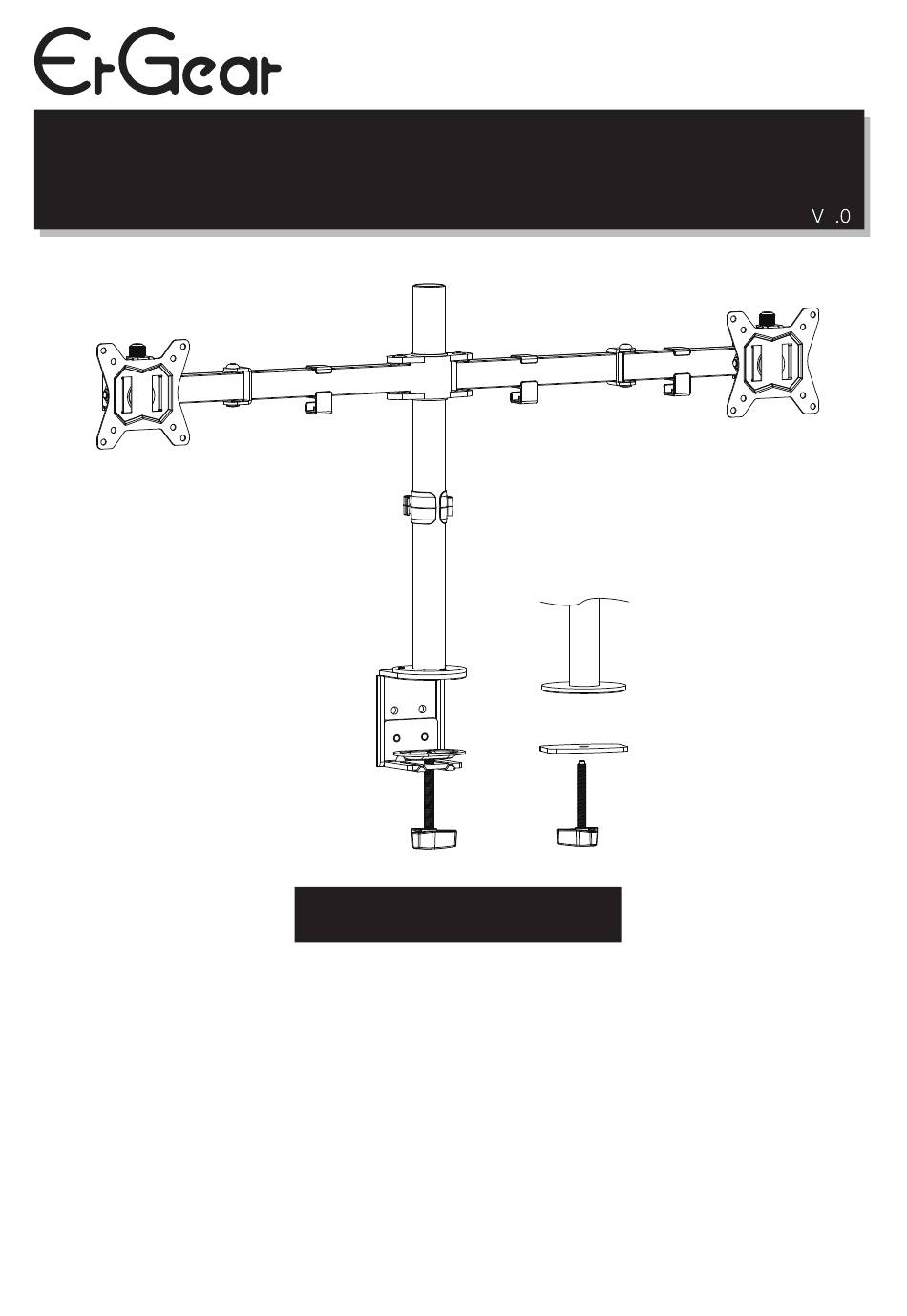

- Page 1 ------------------------ 29-35 日本語 ------------------------ 36-42 Thank you for choosing this Ergear product! At Ergear we strive to provide you with the best quality products and services in the industry. Should you have any issues, please don't hesitate to contact us at support@ergear.com.(US/CA/DE/UK/FR/IT/ES/AU)
- Page 2 Do not use damaged or defective parts. •Not all parts and hardware included will be used. lf you require replacement parts, contact customer service at support@ergear.com •Carefully read all instructions before attempting installation. •If you do not understand the instructions or have any concerns or questions, please contact customer service at support@ergear.com...
- Page 3 STEP 1A For C Clamp Mounting STEP 1A-1 Install part [02] to pole [01] 5/32 in.(4mm) STEP 1A-2 Adjust the mount according to the thickness of desktop 45mm(1 49/64 in.) ＜45mm(1 49/64 in.) 80mm(3 5/32 in.) STEP 1A-3 Install part [03] to part [02] Secure the mount to the STEP 1A-4 desktop...
- Page 4 STEP 1B For Grommet Mounting Remove part [a] from part Secure the mount to STEP 1B-1 STEP 1B-2 [03] desktop STEP 2 Install Cable Clips [06] [07] & Monitor Connector [04] to Pole [01] Secure monitor connector Slide the cable clip [06] and [04] to the pole [01] then STEP 2-1 monitor connector [04] to the...
- Page 5 STEP 3 Check Monitor Hole Pattern and Select Monitor Bolts 75 mm ≈ 4 in. 100 mm ≈ 7 7/8 in. Only one size fits your TV. Bolt length:Verify adequate thread engagement with bolts or bolts/spacers combination. We recommend thread engagement by at least 5 turns. -Too short will not hold the monitor.
- Page 6 Hang Monitors to the Stand and Secure with Knob [C] and STEP 5 Bolts [D] STEP 6 Fix Tilt Angle of the Monitors 15/64 in.(6mm)
- Page 7 STEP 7 Manage Cables STEP 8 Store Allen Keys into the Cable Clip F 15/64 in.(6mm) E 5/32 in.(4mm)
- Page 8 Features 180° 360° 360° Tilt Tilt Individual VESA plate height adjustment helps monitors to be perfectly aligned.
- Page 9 Thank you again choosing this Ergear product! All of us at Ergear do appreciate your product purchase. We hope that you are as happy with your product as we are designing and manufacturing it for you. We strive to provide you with the best quality products and services in the industry.
Need help?
Do you have a question about the EGCM1 and is the answer not in the manual?
Questions and answers
