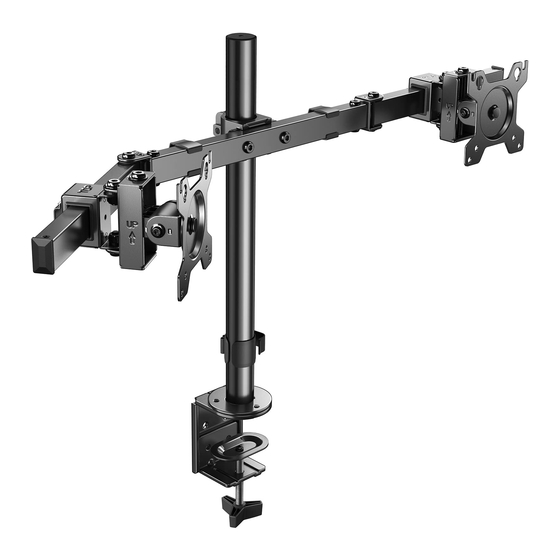

Monitor Desk Mount Instruction Manual
V2.0
Model: EGCM5
Thank you for choosing this ErGear product! At ErGear we strive
to provide you with the best quality products and services in the
industry. Should you have any issues, please don't hesitate to
contact us.
Technical Support:
1-800-651-9525 Mon-Fri 10am - 5pm (PST) (USA) (CAN)
Other Info:
support@ergear.com(US)
Advertisement
Table of Contents
Related Manuals for ErGear EGCM5
Summary of Contents for ErGear EGCM5
- Page 1 Monitor Desk Mount Instruction Manual V2.0 Model: EGCM5 Thank you for choosing this ErGear product! At ErGear we strive to provide you with the best quality products and services in the industry. Should you have any issues, please don't hesitate to contact us.
- Page 2 If your monitor VESA is greater than 100x100 mm/4x4 in. or less than VESA 75x75mm/3x3in., this mount is NOT compatible. If this desk mount is NOT compatible, please contact customer service at support@ergear.com to find a compatible product. Tool Need（Not Included） Phillips 1/2 in.(13mm) - 1 in.(25mm)
- Page 3 Product Support line at 1-800-651-9525 or customer service at support@ergear.com. • Please note: Not all hardware included in this package will be used. Supplied Parts and Hardware for Step 1...
- Page 4 Step 1 Install the Pole to the Desktop Option A: Desk Clamp Assembly Small Allen Large Allen Key...
- Page 5 Option B: Grommet Base Assembly If there is no grommet hole on your desk, position the pole (01) on the mounting surface and mark the hole. Drill a hole using the drill bit in a diameter of 7/16in.(11mm)-33/64in.(13mm) at the marked position through the mounting surface.
- Page 6 Large Large Allen Key Allen Key Step 3 Secure the Moitors to Swivel Arms Phillips Secure 2 pcs bolts into the Screwdriver top VESA holes on the back [Not Included] (If needed) (If needed) of the monitor manually. 3 in. (75mm)x3 in. (75mm) 4 in.(100mm)x4 in.(100mm) TV1/TV2 Alternate...
- Page 7 HEAVY! You may need assistance with this step. (If needed) (If needed) TV1/TV2 TV3/TV4 Step 4 Adjust Monitor Position Slightly Adjust the Height of the Monitor Large Large Allen Key Allen Key Turn the preassembled bolt [S] clokwise or counter-clockwise to adjust the monitor up or down...
- Page 8 Horizontally Shift the Monitor Along the Swivel Arm Tilt the bottom of the monitor forward and move the monitor along the swivel arm. Step 5 Cable Management and Angle Adjustment Tilt Adjustment Tilt Adjustment Slightly loosen the set bolt to adjust the tilt angle and tighten set bolt to hold the tilt angle.
