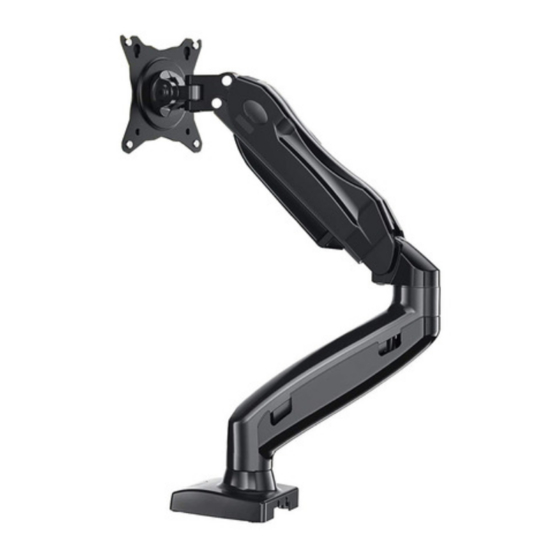

Monitor Desk Mount
Instruction Manual
V1.0
Model: EGSS7
Thank you for choosing this Ergear product! At Ergear we strive to
provide you with the best quality products and services in the
industry. Should you have any issues, please don't hesitate to
contact at support@ergear.com (US/CA/DE/UK/FR/IT/ES/AU)
Advertisement
Related Manuals for ErGear EGSS7
Summary of Contents for ErGear EGSS7
- Page 1 Instruction Manual V1.0 Model: EGSS7 Thank you for choosing this Ergear product! At Ergear we strive to provide you with the best quality products and services in the industry. Should you have any issues, please don't hesitate to contact at support@ergear.com (US/CA/DE/UK/FR/IT/ES/AU)
-
Page 2: Important Safety Information
75mm/3 in.(W)x75mm/3 in.(H) If your monitor VESA is greater than 100x100 mm/4x4 in. or less than VESA 75x75mm/3x3in., this mount is NOT compatible. If this desk mount is NOT compatible, please contact customer service at support@ergear.com to find a compatible product. - Page 3 Product Features (9.8 in.) (0.39~3.54 in.) (0.39~3.54 in.)
- Page 4 TENSION ADJUSTMENT SHOULD BE DONE ONLY AFTER MOUNT INSTALLATION Do not adjust tension without monitor 1. Ensure monitor has been attached to the mount. 2. Read your monitor box or manual to find out monitor net weight. 3. Ensure the net weight of monitor (including accessories) is between 4.4~14.3 Ibs (2.0-6.5 kg).
- Page 5 Grommet Plate C-Clamp C-Clamp Brace Long Bolt Butterfly Nut Bolt (A) Bolt (B-1) Spacer (B-2) M4x12mm (X4) M4x16mm (X4) 5mm (X4) 5/32 in.(4mm) 13/64 in.(5mm) Allen Key Allen Key Bottom Bolt (C) Plate M6x12 (X3) Step 1 Secure the Arm to Desktop 5/32 in.
- Page 6 Warning: Ensure bolts are Warning: Ensure bolts are 5/32 in. (4mm)
- Page 7 Step 2 Attach Monitor to the Arm 2-1 Choose Proper bolts 2-2 Install Monitors to the Arms Flat back monitor 0.1-0.2in.(3-5mm) spacing left Screwdriver [Not Included] Round back monitor The tension is preset at 8.8~11 Ibs(4-5kg). After hanging the monitor to the mount, please release the monitor slowly to...
- Page 8 13/64 in. (5mm) (1 rotation ≈ 1 lb) Step 4 Directional Usage Guide...
- Page 9 Step 5 Adjust Tilt Angle 13/64 in. (5mm)
- Page 10 Step 6 Set Swivel Tightness Warning: Do not fully re-thread set screw. 13/64 in. (5mm) Step 7 Adjust the Rotation Angle Only suitable for monitor with a centre of gravity at the centre.
- Page 11 Step 8 Route the Wires along the Arm...
- Page 12 Thank you again choosing this Ergear product! All of us at Ergear do appreciate your product purchase. We hope that you are as happy with your product as we are designing and manufacturing it for you. We strive to provide you with the best quality products and services in the industry.
