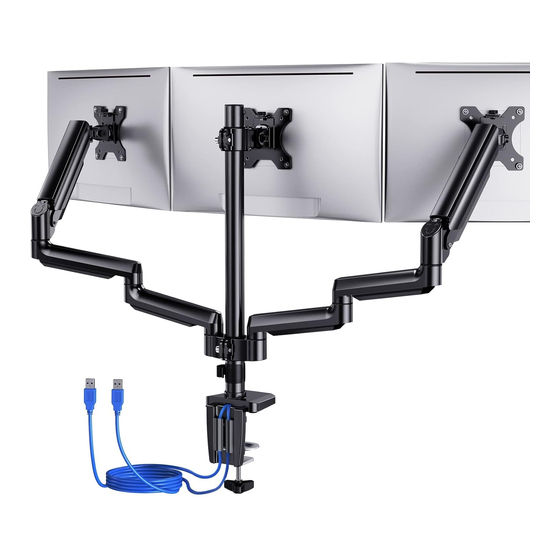

Triple Monitor Desk Mount
Instruction Manual
V1.0 (A)
Model: EGTS5B
Thank you for choosing this ErGear product! At ErGear we strive to
provide you with the best quality products and services in the industry.
Should you have any issues, please don't hesitate to contact us at
Technical Support:
(US/CA)1-800-651-9525 Mon-Fri 8am - 8pm(CST)
(UK)44-808-196-3875 Mon-Fri 2pm - 10pm(UTC)
Other Info:
support@ergear.com
supportjp@ergear.com(JP)
Website: https://ergear.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ErGear EGTS5B
Summary of Contents for ErGear EGTS5B
- Page 1 V1.0 (A) Model: EGTS5B Thank you for choosing this ErGear product! At ErGear we strive to provide you with the best quality products and services in the industry. Should you have any issues, please don't hesitate to contact us at...
-
Page 2: Weight Restrictions
Please carefully read all instructions before attempting installation. If you do not understand the instructions or have any concerns or questions, please contact our customer service at support@ergear.com. CAUTION: Avoid potential personal injuries and property damage! • Do not use this product for any purpose that is not explicitly specified in this manual. - Page 3 Product Features Clamp Mounting Grommet Mounting...
- Page 4 TENSION ADJUSTMENT SHOULD BE DONE ONLY AFTER MOUNT INSTALLATION Warning Do not adjust tension without monitor. 1. Ensure monitor has been attached to the mount. 2. Read your monitor box or manual to find out monitor net weight. 3. Ensure the net weight of monitor (including accessories) is between 4.4~17.6 Ibs (2-8 kg) per arm.
- Page 5 Before starting assembly, verify all parts are included and undamaged. Do not use damaged or defective parts. lf you require replacement parts, please contact our customer service at support@ergear.com. • Please note: Not all hardware included in this package will be used.
- Page 6 Bolt 5/32 in (4mm) M6x12mm Small Allen Key Supplied Parts and Hardware for Step 3 15/64 in (6mm) Cable Clip Monitor Connector Arm Assembly Large Allen Key (x1) (x1) (x1) Supplied Parts and Hardware for Step 4 Bolt Bolt M4x12mm M4x30mm Monitor Plate Washer...
- Page 7 Step 1 Attach the Pole [02] to the Base [01] Small Allen Key...
- Page 8 Step 2 Clamp Installation OR Grommet Base Installation Option A: Clamp Installation 2A-1 5/32 in (4mm) Small Allen Key Small Allen Key 2A-2 0.39- 2.17in 1.97- 3.15in (10-55mm) (50-80mm) Small Allen Key Small Allen Key...
- Page 9 2A-3 Option B: Grommet Base Installation 2B-1 2B-2 Small Allen Key 2B-3 If there is no grommet hole on your desk, mark a pilot hole on your desired position. Drill a hole using the drill bit in a diameter of 7/16 in (11mm) - 55/ 64 in (22mm) at the marked position through the mounting surface.
- Page 10 Step 3 Install the Arm Assembly [12] to the Pole [02] Warning: Slowly unfold the arm to avoid any injuries. 15/64 in (6mm) Large Allen Key...
- Page 11 Step 4 Attach the Monitor Plates to the Monitors For Monitor with Flat Back Phillips Screwdriver (Not lncluded) For Monitor with Curved or Recessed Back Step 5 Hang the Monitors to the Mount HEAVY! You may need assistance with this step.
- Page 12 Step 6 Rotation Restriction Proper usage directions Non-proper usage directions Desk Step 7 Adjust the Gas Spring Tension 15/64 in (6mm) Be sure to keep the arm in horizontal Large Allen Key position during adjustment. Or else, it would be difficult to adjust the mount or damage the mount.
-
Page 13: Step 8 Tilt Adjustment
Rises up Falls down If the monitor rises up and fails to stay at the If the monitor falls down and fails to stay at desired height by itself: the desired height by itself: Turn clockwise (“-”direction) to reduce gas Tutn counter-clockwise (“+”direction) to spring tension until the monitor can stay at the increase gas spring tension until the monitor... -
Page 14: Cable Management
Step 9 Cable Management Medium Allen Key Large Allen Key Small Allen Key... - Page 15 Thank you again choosing this ErGear product! All of us at ErGear do appreciate your product purchase. We hope that you are as happy with your product as we designing and manufacturing it for you. We strive to provide you with the best quality products and services in the industry.
