Summary of Contents for Real Flame MAGIGLO 320

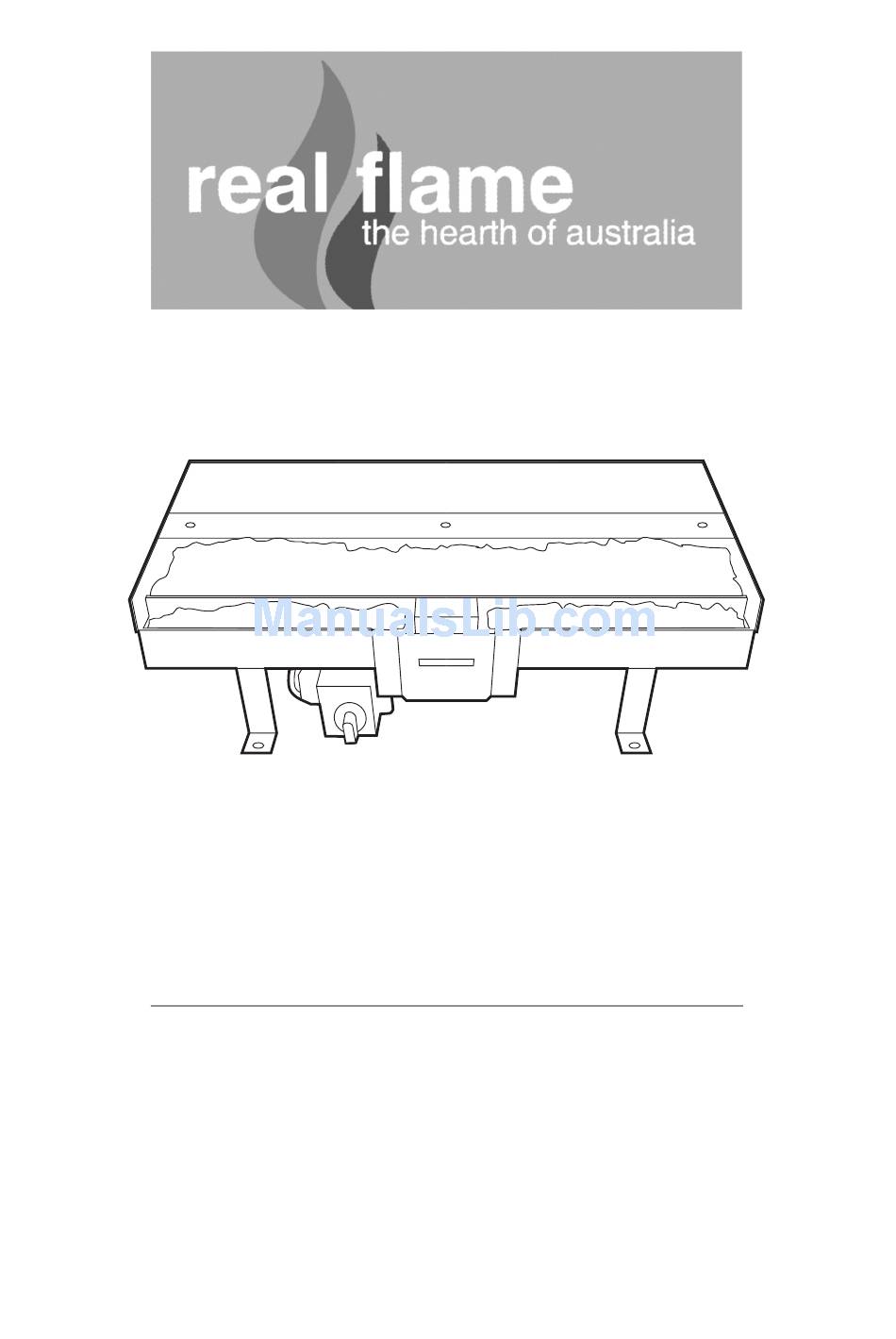

- Page 1 MAGIGLO ® SERIES INSTALLATION & OPERATING MANUAL The Magiglo series of decorative fires are suitable to be installed into a masonry or approved prefabricated fireplace and are designed to operate with Natural and Propane gases only. Approval Number 6094. VERSION 7...
-
Page 2: Important Safety Notice
WARRANTY Provided your Real Flame gas burner is installed in strict accordance with our installation instructions, the burner is unconditionally guaranteed for twelve months from date of purchase. This unconditional warranty covers parts and labour at our discretion taking into consideration normal wear and tear and does not cover fires installed in outdoor settings. -
Page 3: Table Of Contents
Typical Type 1 Installation to existing chimney ............8 Type 1 Installation into Victorian/Federation grate..........9 Typical Type 2 Installation of Prefabricated Fire Box into existing chimney..10 User Instructions ....................11 Troubleshooting .....................11 Conversion details ....................12 Parts List ........................13 Real Flame contact information................16... -
Page 4: Data Plate
DATA PLATE (Affixed to the base of the unit for reference to gas pressure & consumption) Model Injector 2x2.2 2x1.1 2x2.5 2x1.2 MJ / HR P .T.P . 0.64 2.55 DIMENSIONS Model All dimensions in mm. Measurements exclude skirt and control knob. -
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS IMPORTANT This product is fitted with an OXYGEN DEPLETION SYSTEM which is an INTEGRAL PART OF THE PILOT. You must maintain the correct pressure for the oxygen depletion system to operate correctly (see data plate on page 4). When checking gas pressure at the appliance ALL OTHER GAS APPLIANCES IN PREMISES MUST BE OPERATING AT THE SAME TIME. -
Page 6: Lighting Instructions
FOR YOUR SAFETY READ BEFORE LIGHTING The appliance has a pilot which must be lit using the piezo ignition, when lighting the pilot follow the instructions exactly. Before lighting the appliance check for gas leaks. Use only your hand to push in and turn the gas control knob, never use tools. If the knob will not push in or turn by hand, don’t try to repair it, call a qualified service technician. -
Page 7: Commissioning Procedure
COMMISSIONING PROCEDURE Once the fire is installed and operational the installer must check for spillage. Carry out the lighting procedure and turn the fire to high. Allow to warm up for 10 minutes and then using a smoke match set 25mm down and 25mm inside of the fire opening run the match across the width of the opening to check that all of the smoke is drawn away. -
Page 8: Typical Type 1 Installation To Existing Chimney
TYPICAL TYPE 1 INSTALLATION TO EXISTING CHIMNEY TYPICAL TYPE 1 INSTALLATION TO EXISTING CHIMNEY 225mm DIA GAS COWL Smoke match spillage test. Ensure gas log fire is set back into fire place in order that no waste products come into the room. -
Page 9: Type 1 Installation Into Victorian/Federation Grate
TYPE 1 INSTALLATION INTO VICTORIAN/FEDERATION GRATE EDWARDIAN/VICTORIAN GRATE AIR TUBES COALS CERAMIC BLANKET BURNER PORT CUT OUT SECTION CONTROL BASE GRATE FRONT IRON COAL PLACEMENT Place Air Tubes 5mm behind Burner Port and space evenly. (cut to size if too long). AIR TUBES BURNER 5mm GAP... -
Page 10: Typical Type 2 Installation Of Prefabricated Fire Box Into Existing Chimney
TYPICAL TYPE 2 INSTALLATION OF PREFABRICATED FIRE BOX INTO EXISTING CHIMNEY FOR INSTALLATION OF FIRE BOX REFER TO MANUFACTURER’S SPECIFICATIONS. SEAL FLANGE TO BRICKWORK 225mm DIA GAS COWL EXISTING CHIMNEY SEAL FLANGE TO BRICKWORK CONVECTION BOX MAGIGLO GAS SET ATTENTION ATTENTION: This is a guide only. -
Page 11: User Instructions
As with all gas appliances, your Magiglo should be regularly serviced. We would recommend once each year. The name and address of your service technician can be obtained from your Real Flame stockist. The routine to be followed by the engineer can be found under Service Instructions; contained within this leaflet. -
Page 12: Conversion Details
CONVERSION DETAILS PROPANE TO NATURAL GAS Parts Required Description PART No. 3/8˝ male x 1/2˝ male Hex Nipple 1/2˝ SC-75 Regulator 1/2˝ male x 1/2˝ Copper Union Natural gas Oxy Pilot Assembly Natural gas Main Burner Injector (Refer to data plate for correct size) Procedure Remove connection fitting from control valve and replace with 3/8˝... -
Page 13: Parts List
PARTS LIST PART No. DESCRIPTION PART No. 1/2˝ to 3/8˝ Hex Nipple BM 733 Control Valve Regulator SC-75 5/16˝ 90O Union Elbow S.I.T. ODS Pilot Assembly (Natural Gas) 1/4˝ Nut and Olive Injector Holder Stem S.I.T. ODS Pilot Assembly (Propane Gas) Injector 1/2˝... -
Page 16: Real Flame Contact Information
REAL FLAME PTY LTD ABN 76 006 311 155 Head Office/Factory/Showroom 1340 Ferntree Gully Rd. Scoresby Vic 3179 Ph: (03) 8706 2000 Fax: (03) 8706 2001 E-mail: info@realflame.com.au Richmond - VIC Showroom 300 Swan St. Richmond Vic 3121 Ph: (03) 9428 4443 Fax: (03) 9428 4445 Geelong - VIC Showroom 1/2A Gordon Avenue.
