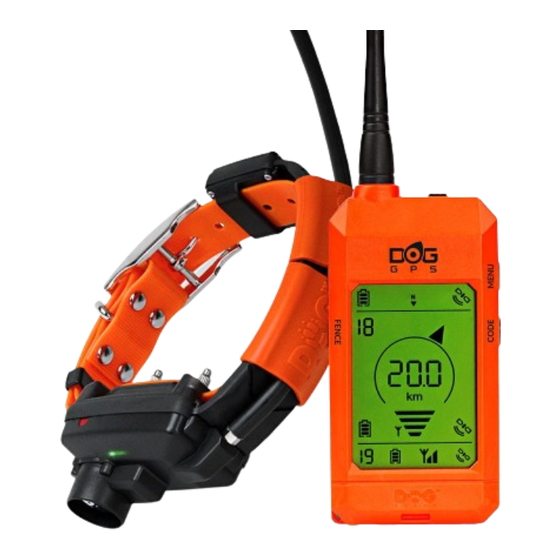

- Page 1 X25 • X25B • X25T • X25TB GPS TRACKING SYSTEM SISTEMA DI LOCALIZZAZIONE GPS SISTEMA DE LOCALIZACIÓN GPS GPS SYSTÈME DE REPÉRAGE...
- Page 2 DECLARATION OF CONFORMITY VNT electronics s.r.o. Dvorská 605 563 01 Lanškroun IČO: 64793826 declare under own responsibility that the product: Dogtrace DOG GPS X25 and X25T, X25B and X25TB is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EC, meets requirements of General Licence of The Czech telecommunication office according to general licence no.
-
Page 3: Table Of Contents
CONTENT 2 Important advice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 3 ECMA . -
Page 4: Important Advice
IMPORTANT ADVICE Please read this Operating Manual carefully before using the product. Do not leave the neck collar transmitter on a dog for more than 12 hours a day. Long-term effects caused by the collar and contact points on the dog's skin may cause irritation. -
Page 5: Introduction
INTRODUCTION DOG GPS X25+ is a device for tracking (locating) your dogs for up to 20 km. It consists of the transmitter located on the dog’s collar and the receiver (handset) on which the dog handler tracks the distance and direction towards the dog’s location. The transmitter gets its position from the GPS satellites, which send the position data to the dog handler’s receiver via the radio frequency (RF) signal. -
Page 6: Equipment Description
Set of contact points, 2 pcs 10 mm, 2 pcs 17 mm (DOG GPS X25T/X25TB only) Dual power adapter, two USB cables with GPS charging clip Test discharge lamp (DOG GPS X25T/X25TB only) Cord for handing the receiver Operating Manual and Certificate of Warranty Equipment bag EQUIPMENT DESCRIPTION 5.1 Transmitter (collar) - Page 7 Button Short press Long press Turning display Switching the transmitter backlight on/off on/off Training audible beep tone Training audible beep tone FENCE Back to the main screen Enabling the circular fence Upwards MENU Entering MENU (setting) Pairing – encoding the CODE Downwards transmitter with the receiver/...
- Page 8 Display 1. Receiver (handset) GPS position 11. Another transmitter battery accuracy charge status 2. Transmitter (collar) GPS position 12. Distance between the transmitter accuracy and receiver 3. Another transmitter GPS position 13. Compass – direction towards the accuracy magnetic North 4.
-
Page 9: Power Adapter And Cable With Charging Clip
5.3 Power adapter and cable with charging clip 1. Power adapter 2. USB cable 3. Charging clip PREPARING TRANSMITTER (COLLAR) 6.1 Charging the transmitter GPS transmitter includes Li-Pol battery, which must be charged before the first use. 1. Remove dirt from charging contacts. Connect the charging clip to the transmitter (see figure). -
Page 10: Frequency Of Position Updating (Transmission)
Turning on: 1. Place the red target located on the bottom of the receiver to the red target on the transmitter for approximately 1 second – the red indicator light comes on and subsequently the green indicator light is lit. 2. -
Page 11: Fitting The Collar
6.6 Fitting the collar Fit the collar with the GPS transmitter to the dog so that the GPS and RF aerials are pointing upwards (see figure). The collar must be sufficiently tightened as not to rotate on the dog's neck but to enable the dog to naturally breathe and receive food. -
Page 12: Checking Battery Charge Status
7.2 Checking battery status Charge status Receiver The battery status in the receiver is indicated 100% by the battery symbol in the receiver information panel – the top line of the display. 7.3 Setting the receiver Switching on/off – hold the push button for 2 seconds To select a dog, press... -
Page 13: Pairing - Encoding Transmitter (Collar) With Receiver (Handset)
Some other functions are limited. NOTE: The X25 series transmitters (collars) can be paired with the X20 and X30 receivers, but will not transmit training commands to the collars – sound, stimulation pulse and light. -
Page 14: Setting The Sound Volume
1. Long press the MENU push button on the receiver you wish to track. 2. Select arrows and long press MENU again. by using 3. Select and by repeatedly pressing return to the main screen. Now, you may start pairing this receiver with yours. 1. -
Page 15: Channel Selection
Fig. 1 Fig. 2 Fig 3 Fig. 4 3. Carry out at least 10 rotations as per Figs. 5 and 6, whilst still pointing to the North. For quality calibration, each single rotation should be carried out with a slight deviation from the direction northwards (see Fig. -
Page 16: Dog Gps X25 Features
In this case, switch your transmitters (collars) and the receiver to another channel. To change a channel, all transmitters (collars) must within close proximity – up to a maximum of 10 meters. NOTE: Channel switching is only possible for X25/X25T/X25B/X25TB and X30/ X30T/X30B/X30TB receivers and transmitters (collars). -
Page 17: Training
Another feature of the training kit is the light indication of the dog in the dark with the aid of powerful LEDs. Acoustic signal (tone): All kits in the X25 series enable two types of acoustic signal. The training acoustic signal ( ) is used as the sound command, which may precede the stimulation impulse and it is a very effective deterrent. -
Page 18: Compass Feature - Determining The North
push button to confirm. 3. Select the transmitter (collar) position you wish to set – ; long press the MENU push button. 4. Select arrows, long press the MENU push button. by using 5. By using arrows select to set the tone type, or to set the volume of the training/location tone. -
Page 19: Waypoint - Saving Receiver's Position
panel. 2. Long press the FENCE push button. 3. Set the acoustic boundary distance by arrows. 4. Press briefly to return to the main screen. After the feature is turn on, FENCE is displayed on the main panel display. The top line of the display shows FENCE if the feature is activated on at least one of the collars paired with the receiver. -
Page 20: Beeper - Indicating Standing Still
WARNING: By saving the waypoint to a position where you have a paired transmitter or other receiver, will delete the transmitter (receiver) from the receiver's memory. 8.6 BEEPER feature – indicating standing still The BEEPER feature is mainly used by gamekeepers/hunters to distinguish the intensity of movement or the presence of a dog near wild pig. -
Page 21: Car Mode
Mode 3 and 4 are intended for hunting wild boars. The indication (acoustic or vibration) is activated if the dog moves within the radius r, for the duration t (time). Setting of sensitivity – The sensitivity setting for Mode 0, 1, 2, 5 and 6 is used for more accurate resolution of the dog at motion/standstill. -
Page 22: Maximum Gps Range And Accuracy
travel and at the same time keep moving (speed higher than 1 m/s). If the receiver is not moving, the arrow will start blinking and keep pointing the last stored direction. MAXIMUM GPS RANGE AND ACCURACY DOG GPS X25 may be used up to a distance of 20 km (with direct visibility between the transmitter and the receiver). -
Page 23: Device Maintanance
DEVICE MAINTANANCE Do not use volatile substances such as thinners, petrol or other cleaning agents to clean DOG GPS X25. Use soft, damp cloth and perhaps neutral detergent, if required. Charge the battery at least once a year if the device has not been used for a long time. -
Page 24: Displayed Texts On Lcd
DISPLAYED TEXTS ON LCD Main navigation window Chapter No signal No RF signal from transmitter No GPS position for receiver NO GPS 8.1. or transmitter Receiver and transmitter are closer NEAR than accuracy of GPS positions Calibration of digital compass in receiver Pairing (coding) Assigned position has no paired... - Page 25 Dog is standing – vibratory Pointing-V indication Dog is near wild boar – acoustic Boar-t indication Dog is near wild – vibratory Boar-V indication Dog is running – acoustic Run-t indication Dog is running – vibratory Run-V indication Sensitivity Beeper sensitivity Delay Delayed beeper indication Radius...
-
Page 26: Warranty Terms And Conditions
WARRANTY TERMS AND CONDITIONS VNT electronics s.r.o . provides a 2 year warranty on the Dogtrace products with respect to defects in material and workmanship under normal use and service from the date of the original purchase. The limited warranty does not cover the following: straps direct or indirect risks during transportation of the product to the retailer mechanical damage of the product caused by user‘s negligence or an accident (eg.
