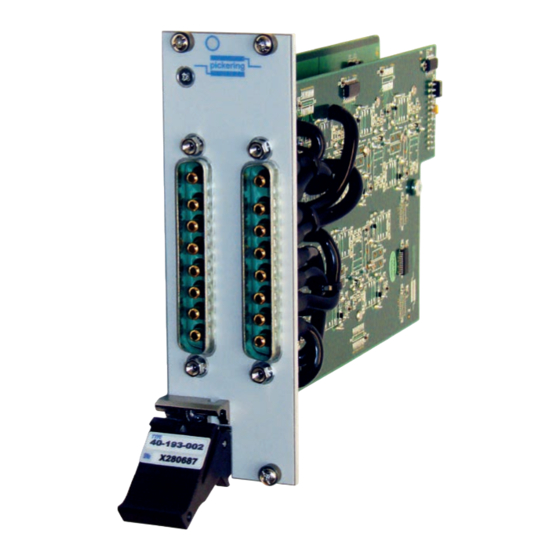

Pickering 40-193 User Manual

Pxi 20 a fault insertion switch modules
Hide thumbs Also See for 40-193:
Table of Contents

Advertisement

Quick Links

Download this manual
40-193/194 User Manual
PXI 20 A Fault Insertion Switch Modules
pickeringtest.com
Issue 4.4 March 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-193 and is the answer not in the manual?

Questions and answers

Related Manuals for Pickering 40-193

Summary of Contents for Pickering 40-193

  • Page 1 40-193/194 User Manual PXI 20 A Fault Insertion Switch Modules pickeringtest.com Issue 4.4 March 2021...
  • Page 2 © COPYRIGHT (2021) PICKERING INTERFACES. ALL RIGHTS RESERVED. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any means without the written permission of Pickering Interfaces. Technical details contained within this publication are subject to change without notice.
  • Page 3 Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

  • Page 4: Product Safety

    If this product is heavy reference should be made to the safety instructions for provisions of lifting and moving. STATIC SENSITIVE To indicate that static sensitive devices are present and handling precautions should be followed. REED RELAY MODULE 40-110/115/120/125 20A FAULT INSERTION SWITCH 40-193/194 Page (IV) Page (IV)

  • Page 5: Table Of Contents

    Pre Operation Checks ............3.1 Hardware Installation ............3.2 Software Installation .............3.2 Testing Operation ..............3.3 Sectio n 4 Programming Guide ..............4.1 Programming Options For Pickering PXI Modules ....4.1 Module Architecture ..............4.2 Programming The Module ............4.4 Section 5 Connector Information ..............5.1 Section 6 Trouble Shooting .................6.1...
  • Page 6 THIS PAGE INTENTIONALLY BLANK 20A FAULT INSERTION SWITCH 40-193/194 Page (VI)

  • Page 7: Warnings And Cautions

    Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale. This module must not be used for the switching of Mains Circuits. For the switching of voltages up to the module’s full specification, Secondary Circuit power supplies and the Device Under Test must...
  • Page 8 • For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on the front of the unit. 20A FAULT INSERTION SWITCH 40-193/194 Page (VIII) 2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579...
  • Page 9 • 40-193-001 7 Channels, One Fault bus. • 40-193-002 7 Channels, Two Fault buses. The 40-193 uses miniature automotive relays with 20 A hot or cold switching current. All relays are normally open. Pickering’s Range of PXI Fault Insertion Switches Model...

  • Page 10: Technical Specification

    Specifications 20 A Fault Insertion Switch, 40-193 Relay Type The 40-193 is fitted with miniature automotive relays with silver alloy contacts. A spare relay is built onto the circuit board to allow easy maintenance with minimum downtime. Switching Specification...
  • Page 11 Customization can include: Mating Connectors & Cabling • Alternative relay types • Mixture of relay types For connection accessories for the 40-193 modules please • Alternative number of relays refer to the 90-012D 8-pin power D-Type Connector • Different performance specifications...
  • Page 12 The 40-194 uses composite relays that support both high and low current hot switching. Hot switching operations can be performed on currents from less than 1 nA to 20 A. Pickering’s Range of PXI Fault Insertion Switches Model Fault Fault...
  • Page 13 -12 V Safety & CE Compliance 450 mA 430 mA All modules are fully CE compliant and meet applicable (9 relays energised) EU directives: Low-voltage safety EN61010-1:2010, EMC Immunity EN61326-1:2013, Emissions EN55011:2009+A1:2010. pickeringtest.com 20A FAULT INSERTION SWITCH 40-193/194 Page 1.5...
  • Page 14 Product Customization the Connection Solutions catalog. Pickering modules are designed and manufactured on our own flexible manufacturing lines, giving complete product control and enabling simple customization to meet very specific requirements.
  • Page 15 We provide a full range of supporting cable and connector solutions for all our switching products—20 connector families with 1200+ products. We offer everything from simple mating connectors to complex cables assemblies and terminal blocks. All assemblies are manufactured by Pickering and are guaranteed to mechanically and electrically mate to our modules. Connectors & Backshells...
  • Page 16 20 A Fault Insertion Switch, 40-194 Programming Pickering provide kernel, IVI and VISA (NI & Keysight) drivers which are compatible with all Microsoft supported versions of Windows and popular older versions. For a list of all supporting operating systems, please see: pickeringtest.com/os...

  • Page 17: Technical Description

    LOGIC DRIVERS U3, U4, U8 TO U13 U5, U6 BRIDGE TERMINATING RESISTORS R1 TO R12 MODULE CONFIGURATION PCI BRIDGE CONFIGURATION COM1 COM2 Figure 2.1 - 20A Fault Insertion Switch 40-193/194: Functional Block Diagram 20A FAULT INSERTION SWITCH 40-193/194 Page 2.1...
  • Page 18 SECTION 2 - TECHNICAL DESCRIPTION pickering COM1 COM2 Figure 2.2 - Switching diagram for 40-193-002 and 40-194-002 with 2 fault buses COM1 Figure 2.3 - Switching diagram for 40-193-001 and 40-194-001 with 1 fault bus 20A FAULT INSERTION SWITCH 40-193/194...

  • Page 19: Installation

    Modular products require installation in a suitable PXI/LXI chassis. The module is designed for indoor use only. PREOPERATION CHECKS (UNPACKING) 1. Check the module for transport damage and report any damage immediately to Pickering Interfaces. Do not attempt to install the product if any damage is evident.

  • Page 20: Hardware Installation

    For a system comprising more than one chassis, turn ON the last chassis in the system followed by the penultimate, etc, and finally turn ON the external controller or chassis containing the system controller. 9. For Pickering Interfaces modular LXI installation there is no requirement to use any particular power up sequence.

  • Page 21: Testing Operation

    Figure 3.2 - General Soft Front Panel Icon A selector panel will appear, listing all installed Pickering PCI, PXI or LXI switch cards and resistor cards. Click on the card you wish to control, and a graphical control panel is presented allowing operation of the card.
  • Page 22 SECTION 3 - INSTALLATION pickering THIS PAGE INTENTIONALLY BLANK 20A FAULT INSERTION SWITCH 40-193/194 Page 3.4...

  • Page 23: Sectio N 4 Programming Guide

    SECTION 4 - PROGRAMMING GUIDE PROGRAMMING OPTIONS FOR PICKERING INTERFACES PXI MODULES For information on the installation and use of drivers and the programming of Pickering’s products in various software environments, please refer to the Software User Manual. This is available as a download from: https://www.pickeringtest.com/support/software-drivers-and-downloads...

  • Page 24: Module Architecture

    Figure 4.1 - Architecture diagram for 40-193-002 and 40-194-002 with 2 fault buses The Pickering 40-193-002 and 40-194-002 PXI module contains one sub-unit to control all 7 channels of fault insertion switches and the fault line conditions. The sub-unit is 21 bits long: 3 bits per channel repeated 7 times.
  • Page 25 Figure 4.2 - Architecture diagram for 40-193-001 and 40-194-001 with 1 fault bus The Pickering 40-193-001 and 40-194-001 PXI module contains one sub-unit to control all 7 channels of fault insertion switches and the fault line conditions. The sub-unit is 14 bits long: 2 bits per channel repeated 7 times.

  • Page 26: Programming The Module

    SECTION 4 - PROGRAMMING GUIDE pickering PROGRAMMING THE MODULE Here are examples of using the drivers with the 40-193-002 Using PILPXI To operate a relay the user could use the simple OpBit command or the WriteSub commands OpBit DWORD sub_unit = 1;...
  • Page 27 // Operates the channel 2, fault 2 relay The IVI Swtch driver specification contains no bulk setting capabilities. Sub-unit/Bit Table BIT / FUNCTION CROSS REFERENCE TABLE 2-Fault Bus Versions - 40-193/194-002 1-Fault Bus Versions - 40-193/194-001 Sub-Unit Function Sub-Unit...
  • Page 28 SECTION 4 - PROGRAMMING GUIDE pickering THIS PAGE INTENTIONALLY BLANK 20A FAULT INSERTION SWITCH 40-193/194 Page 4.6...
  • Page 29 COM1 COM2 Figure 5.1 - 20A Fault Insertion Switch 40-193/194: Pin Outs Viewed From Front Panel Connectors are 8-pin Power D-type Plugs (See Figures 2.2 & 2.3 for pin definitions). Note: “COM2” is unused on modules with one fault bus (40-193-001 and 40-194-001) 20A FAULT INSERTION SWITCH 40-193/194 Page 5.1...
  • Page 30 SECTION 5 - CONNECTOR INFORMATION pickering THIS PAGE INTENTIONALLY BLANK 20A FAULT INSERTION SWITCH 40-193/194 Page 5.2...

  • Page 31: Trouble Shooting

    PCI configuration, highlighting any potential configuration problems. Specific details of all installed Pickering switch cards are included. All the installed Pickering switch cards should be listed in the “Pilpxi information” section - if one or more cards is missing it may be possible to determine the reason by referring to the PCI configuration dump contained in the report, but interpretation of this information is far from straightforward, and the best course is to contact Pickering support: support@pickeringtest.com, if possible...
  • Page 32 SECTION 6 - TROUBLE SHOOTING pickering THIS PAGE INTENTIONALLY BLANK 20A FAULT INSERTION SWITCH 40-193/194 Page 6.2...

  • Page 33: Maintenance Information

    For PXI modules which are supported in one of Pickering Interfaces’ Modular LXI Chassis (such as the 60-102B and 60-103B) no module software update is required. If the module was introduced after the LXI chassis was manufactured the module may not be recognized, in this case the chassis firmware may need upgrading.
  • Page 34 SECTION 7 - MAINTENANCE INFORMATION pickering 2 FAULT BUS VERSIONS - 40-193/194-002 RELAY LOOK-UP TABLE Relay Number: 40-193/194-002 Relay Number: 40-194-002 Only Relay Function (Daughterboard Solder Side) (Daughterboard Component Side) CH5 Break CH5 Fault1 CH5 Fault2 CH6 Break RL10 CH6 Fault1...
  • Page 35 RL14 RL20 RL12 RL18 RL24 RL10 RL16 RL22 RL28 RL34 RL40 RL36 RL42 RL30 RL32 RL38 RL26 Figure 7.1 - 40-193/194 Daughterboard Component Side RL19 RL13 RL23 RL17 RL11 RL21 RL15 RL39 RL33 RL27 RL41 RL35 RL29 RL37 RL31 RL25 Figure 7.2 - 40-193/194 Daughterboard Solder Side...
  • Page 36 SECTION 7 - MAINTENANCE INFORMATION pickering THIS PAGE INTENTIONALLY BLANK 20A FAULT INSERTION SWITCH 40-193/194 Page 7.4...
