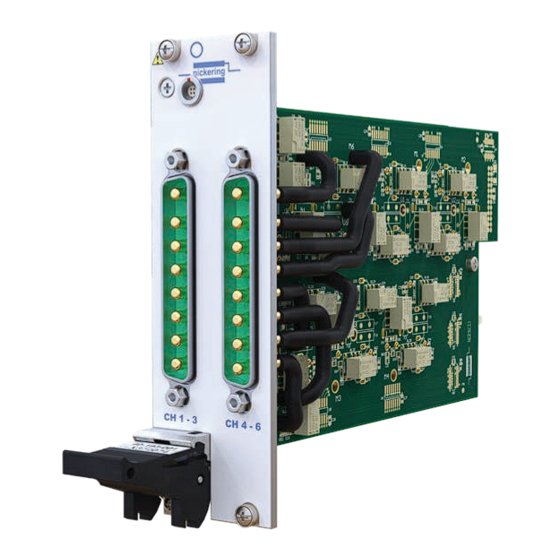

Pickering 40-193A User Manual

Pxi 20 a fault insertion switch modules
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
40-193A/194A User Manual
PXI 20 A Fault Insertion Switch Modules
pickeringtest.com
Issue 2.1 August 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-193A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pickering 40-193A

Summary of Contents for Pickering 40-193A

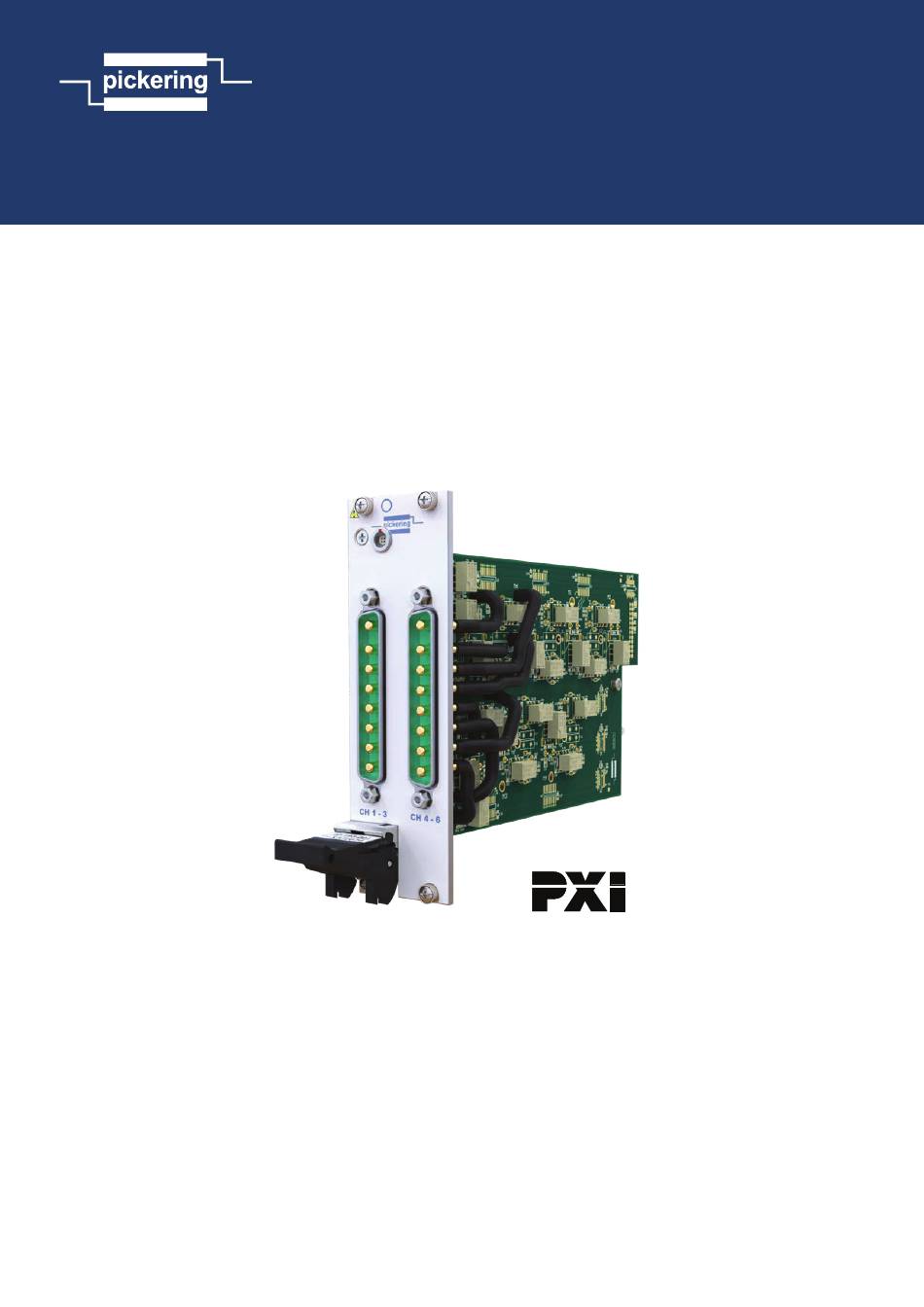

  • Page 1 40-193A/194A User Manual PXI 20 A Fault Insertion Switch Modules pickeringtest.com Issue 2.1 August 2023...
  • Page 2 © COPYRIGHT (2023) PICKERING INTERFACES. ALL RIGHTS RESERVED. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any means without the written permission of Pickering Interfaces. Technical details contained within this publication are subject to change without notice.
  • Page 3 Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

  • Page 4: Product Safety

    If this product is heavy reference should be made to the safety instructions for provisions of lifting and moving. STATIC SENSITIVE To indicate that static sensitive devices are present and handling precautions should be followed. REED RELAY MODULE 40-110/115/120/125 20A FAULT INSERTION SWITCH 40-193A/194A Page (IV) Page (IV)

  • Page 5: Table Of Contents

    Pre Operation Checks ............3.1 Hardware Installation ............3.2 Software Installation .............3.2 Testing Operation ..............3.3 Sectio n 4 Programming Guide ..............4.1 Programming Options For Pickering PXI Modules ....4.1 Module Architecture ..............4.2 Programming The Module ............4.4 Section 5 Connector Information ..............5.1 Section 6 Trouble Shooting .................6.1...
  • Page 6 THIS PAGE INTENTIONALLY BLANK 20A FAULT INSERTION SWITCH 40-193A/194A Page (VI)

  • Page 7: Warnings And Cautions

    Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale. This module must not be used for the switching of Mains Circuits. For the switching of voltages up to the module’s full specification, Secondary Circuit power supplies and the Device Under Test must...
  • Page 8 • For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on the front of the unit. 20A FAULT INSERTION SWITCH 40-193A/194A Page (VIII) 2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579...
  • Page 9 20 A hot or cold switching current. All relays 20 A Fault Insertion Switch Schematic Diagrams are normally open. 40-193A-001 has 1 fault bus, 40-193A-002 has 2 fault buses Issue 2.0 July 2023 pickeringtest.com 20A FAULT INSERTION SWITCH 40-193A/194A...
  • Page 10 22 or 11 150 V +3.3 V Front Panel Hardware Interlock Connector External The 40-193A modules are available with an optional Wire Link hardware interlock. The interlock, when activated, Interlock Daisy-chain Interlock Connector will return all relays to their default unpowered state...
  • Page 11 SECTION 1 - TECHNICAL SPECIFICATION pickering Specifications 40-193A Relay Type The 40-193A is fitted with miniature automotive relays with silver alloy contacts. A spare relay is built onto the circuit board to allow easy maintenance with minimum downtime. Switching Specification DC Resistive...
  • Page 12 (replacing that supplied with the module) Product Customization Mating Connectors & Cabling Pickering modules are designed and manufactured on our For a complete list of connection accessories and own flexible manufacturing lines, giving complete product documentation for the 40-194A module, please refer to our control and enabling simple customization to meet very 8-pin Power D-type datasheet (90-012D).
  • Page 13 20 A Fault Insertion Switch Schematic Diagrams switching operations can be performed on currents 40-194A-001 has 1 fault bus, 40-194A-002 has 2 fault buses from less than 1 nA to 20 A. Issue 2.0 July 2023 pickeringtest.com 20A FAULT INSERTION SWITCH 40-193A/194A Page 1.5...
  • Page 14 SECTION 1 - TECHNICAL SPECIFICATION pickering PXI 20 A Fault Insertion Switch Modules 40-194A Pickering’s Range of PXI Fault Insertion Switches Model No. Signal Channels Fault Buses Fault Inputs Max Voltage Max Current or Bus Type 40-190B 74, 64 or 32...
  • Page 15 (40-194A versions with hardware interlock option) +3.3 V +5 V +12 V -12 V 450 mA *Mating half supplied when hardware interlock option 430 mA (9 relays energised) ordered, to be wired by end user. pickeringtest.com Page 3 20A FAULT INSERTION SWITCH 40-193A/194A Page 1.7...
  • Page 16 (replacing that supplied with the module) Product Customization Mating Connectors & Cabling Pickering modules are designed and manufactured on our For a complete list of connection accessories and own flexible manufacturing lines, giving complete product documentation for the 40-194A module, please refer to our control and enabling simple customization to meet very 8-pin Power D-type datasheet (90-012D).

  • Page 17: Technical Description

    Relay Relays Drivers Control RL1-42 U8-13 U3-6 +3.3V 6 Channel FI Switch 6 Channel FI Switch 2 Fault Buses 1 Fault Bus Figure 2.1 - 20A Fault Insertion Switch 40-193A/194A: Functional Block Diagram 20A FAULT INSERTION SWITCH 40-193A/194A Page 2.1...
  • Page 18 SECTION 2 - TECHNICAL DESCRIPTION pickering COM1 COM2 Figure 2.2 - Switching diagram for 40-193A-002 and 40-194A-002 with 2 fault buses COM1 Figure 2.3 - Switching diagram for 40-193A-001 and 40-194A-001 with 1 fault bus 20A FAULT INSERTION SWITCH 40-193A/194A...

  • Page 19: Hardware Interlock

    HARDWARE INTERLOCK The 40-193A-00x-HI and 40-194A-00x-HI modules have an interlock feature that can be used to return the relays (assuming they are fully functional) to their default unpowered state if the interlock connector is not in place or if the connection between the two interlock pins is open-circuit.
  • Page 20 Hardware Interlock Interlock Interlock Status Status Status PXI Gnd PXI Gnd PXI Gnd To Other Modules With Hardware Interlock Figure 2.4 - All 40-193A/194A-00x-HI Modules Enabled by a Common Signal Master +3.3V +3.3V +3.3V Module Module Module With With With...

  • Page 21: Installation

    Modular products require installation in a suitable PXI/LXI chassis. The module is designed for indoor use only. PREOPERATION CHECKS (UNPACKING) 1. Check the module for transport damage and report any damage immediately to Pickering Interfaces. Do not attempt to install the product if any damage is evident.

  • Page 22: Hardware Installation

    For a system comprising more than one chassis, turn ON the last chassis in the system followed by the penultimate, etc, and finally turn ON the external controller or chassis containing the system controller. 9. For Pickering Interfaces modular LXI installation there is no requirement to use any particular power up sequence.

  • Page 23: Testing Operation

    Figure 3.2 - General Soft Front Panel Icon A selector panel will appear, listing all installed Pickering PCI, PXI or LXI switch cards and resistor cards. Click on the card you wish to control, and a graphical control panel is presented allowing operation of the card.
  • Page 24 SECTION 3 - INSTALLATION pickering THIS PAGE INTENTIONALLY BLANK 20A FAULT INSERTION SWITCH 40-193A/194A Page 3.4...

  • Page 25: Sectio N 4 Programming Guide

    SECTION 4 - PROGRAMMING GUIDE PROGRAMMING OPTIONS FOR PICKERING INTERFACES PXI MODULES For information on the installation and use of drivers and the programming of Pickering’s products in various software environments, please refer to the Software User Manual. This is available as a download from: https://www.pickeringtest.com/support/software-drivers-and-downloads...

  • Page 26: Module Architecture

    Figure 4.1 - Architecture diagram for 40-193A-002 and 40-194A-002 with 2 fault buses The Pickering 40-193A-002 and 40-194A-002 PXI module contains one sub-unit to control all 7 channels of fault insertion switches and the fault line conditions. The sub-unit is 21 bits long: 3 bits per channel repeated 7 times.
  • Page 27 Figure 4.2 - Architecture diagram for 40-193A-001 and 40-194A-001 with 1 fault bus The Pickering 40-193A-001 and 40-194A-001 PXI module contains one sub-unit to control all 7 channels of fault insertion switches and the fault line conditions. The sub-unit is 14 bits long: 2 bits per channel repeated 7 times.

  • Page 28: Programming The Module

    SECTION 4 - PROGRAMMING GUIDE pickering PROGRAMMING THE MODULE Here are examples of using the drivers with the 40-193A-002 Using PILPXI To operate a relay the user could use the simple OpBit command or the WriteSub commands OpBit DWORD sub_unit = 1;...
  • Page 29 // Operates the channel 2, fault 2 relay The IVI Swtch driver specification contains no bulk setting capabilities. Sub-unit/Bit Table BIT / FUNCTION CROSS REFERENCE TABLE 2-Fault Bus Versions - 40-193A/194A-002 1-Fault Bus Versions - 40-193A/194A-001 Sub-Unit Function Sub-Unit...
  • Page 30 SECTION 4 - PROGRAMMING GUIDE pickering Using The Interlock Function The following functions are applicable to 40-193A-00x-HI and 40-194A-00x-HI modules fitted with the optional hardware interlock. Get the status of Interlock Use the attribute “ATTR_INTERLOCK_STATUS”, to the get the status of the interlock.
  • Page 31 COM1 COM2 Figure 5.1 - 20A Fault Insertion Switch 40-193A/194A: Pin Outs Viewed From Front Panel Connectors are 8-pin Power D-type Plugs (See Figures 2.2 & 2.3 for pin definitions). Note: “COM2” is unused on modules with one fault bus (40-193A-001 and 40-194A-001) 20A FAULT INSERTION SWITCH 40-193A/194A Page 5.1...
  • Page 32 Figure 5.2 - Pinout: Hardware Interlock Connector Applicable to 40-193A-00x-HI & 194A-00x-HI Modules With Hardware Interlock Option (4-pin 00 Series Female Connector Viewed From Front of Module) Refer to Appendix A for Wiring and Assembly Instructions...

  • Page 33: Trouble Shooting

    PCI configuration, highlighting any potential configuration problems. Specific details of all installed Pickering switch cards are included. All the installed Pickering switch cards should be listed in the “Pilpxi information” section - if one or more cards is missing it may be possible to determine the reason by referring to the PCI configuration dump contained in the report, but interpretation of this information is far from straightforward, and the best course is to contact Pickering support: support@pickeringtest.com, if possible...
  • Page 34 SECTION 6 - TROUBLE SHOOTING pickering THIS PAGE INTENTIONALLY BLANK 20A FAULT INSERTION SWITCH 40-193A/194A Page 6.2...

  • Page 35: Maintenance Information

    For PXI modules which are supported in one of Pickering Interfaces’ Modular LXI Chassis (such as the 60-102B and 60-103B) no module software update is required. If the module was introduced after the LXI chassis was manufactured the module may not be recognized, in this case the chassis firmware may need upgrading.
  • Page 36 SECTION 7 - MAINTENANCE INFORMATION pickering 2 FAULT BUS VERSIONS - 40-193A/194A-002 RELAY LOOK-UP TABLE Relay Number: 40-193A/194A-002 Relay Number: 40-194A-002 Only Relay Function (Daughterboard Solder Side) (Daughterboard Component Side) CH5 Break CH5 Fault1 CH5 Fault2 CH6 Break RL10 CH6 Fault1...
  • Page 37 RL14 RL20 RL12 RL18 RL24 RL10 RL16 RL22 RL28 RL34 RL40 RL36 RL42 RL30 RL32 RL38 RL26 Figure 7.1 - 40-193A/194A Daughterboard Component Side RL19 RL13 RL23 RL17 RL11 RL21 RL15 RL39 RL33 RL27 RL41 RL35 RL29 RL37 RL31 RL25 Figure 7.2 - 40-193A/194A Daughterboard Solder Side...
  • Page 38 SECTION 7 - MAINTENANCE INFORMATION pickering THIS PAGE INTENTIONALLY BLANK 20A FAULT INSERTION SWITCH 40-193A/194A Page 7.4...

  • Page 39: Interlock Connector Wiring

    APPENDIX A - INTERLOCK CONNECTOR WIRING pickering APPENDIX A - INTERLOCK CONNECTOR WIRING The following procedure describes the steps required for the wiring of the interlock connector supplied with versions of the module with the hardware interlock function - all images are courtesy Gigatronix.
  • Page 40 APPENDIX A - INTERLOCK CONNECTOR WIRING pickering Half Shell (A) Braided Screen 4. Fold back braided screen then position the half shells. Note position of orientation lug/slot. Half Shell (B) Trimmed Braided Screen 5. Slide the collet forward trapping the braided screen then trim.
