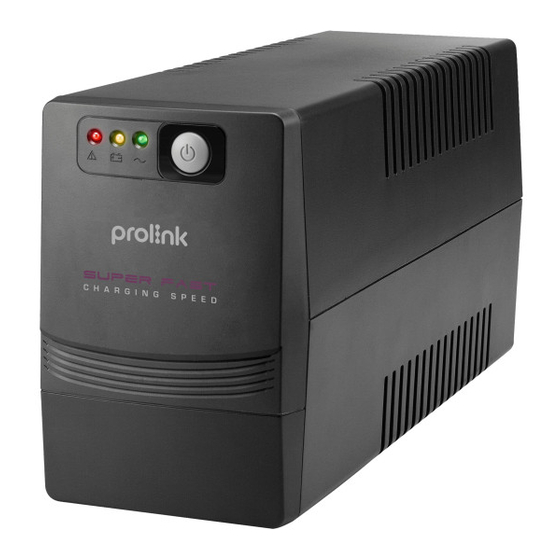

- Page 1 User Guide Line interactive UPS with Super Fast charging speed INSPIRE 703SFC, INSPIRE 853SFCU, INSPIRE 1203SFCU, INSPIRE 1253SFCU, INSPIRE 1503SFCU, INSPIRE 2003SFCU, INSPIRE 3003SFCU Version 1.00 (English | Indonesian)
-
Page 2: Important Safety Warning
Important Safety Warning CAUTION: To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area free of conductive contaminants. (See the specifications for the acceptable temperature and humidity range.) To reduce the risk of overheating the UPS, DO NOT cover the UPS' cooling vents and avoid exposing the unit to direct sunlight or installing the unit near heat emitting appliances such as space heaters or furnaces. -
Page 3: Package Contents
Note: 1. The illustrations in this document may appear different from your model. 2. If any of above item is not packed in your package when open, please consult your seller immediately. Overview INSPIRE 703SFC Front View Rear View Legend:... - Page 4 Overview INSPIRE 853SFCU Front View Rear View Legend: AC Mode Indicator: Power Switch RJ11 Ports (In & Out) Green LED Lighting Fault Indicator: USB Port Backup Outlets Red LED Lighting Battery Mode Indicator: Power AC Input Yellow LED Flashing INSPIRE 1203SFCU Front View Rear View Legend:...
- Page 5 Overview INSPIRE 1253SFCU Front View Rear View Legend: AC Mode Indicator: Power Switch RJ45 Ports (In & Out) Green LED Lighting Fault Indicator: Power AC Input Backup Outlets Red LED Lighting Battery Mode Indicator: USB Port Yellow LED Flashing INSPIRE 1503SFCU Front View Rear View Legend:...
- Page 6 Overview INSPIRE 2003SFCU Front View Rear View Legend: AC Mode Indicator: Power Switch USB Port Green LED Lighting Fault Indicator: RJ45 Ports (In & Out) Red LED Lighting Battery Mode Indicator: Power AC Input Backup Outlets Yellow LED Flashing INSPIRE 3003SFCU Front View Rear View Legend:...
- Page 7 Connect the Loads Plug in the loads to output receptacles on the rear panel of the UPS. Simply turn on the power switch of UPS unit, and then devices connected to the UPS will be protected by UPS unit. CAUTION: NEVER connect a laser printer or scanner to the UPS unit.
-
Page 8: Storage And Maintenance
Software Download & Installation Note: Only for model with USB port. Please follow steps below to download and install monitoring software: 1. Go to the website http://www.power-software-download.com 2. Click ViewPower software icon and then choose your required OS to download the software. -
Page 9: Troubleshooting
Storage and Maintenance When replace the batteries, install the same number and same type of batteries. Do not attempt to dispose of batteries by burning them. This could cause battery explosion. The batteries must be rightly deposed according to local regulation. Do not open or destroy batteries. -
Page 10: Specifications
Specifications MODEL INSPIRE 703SFC INSPIRE 853SFCU Capacity 650 VA 850 VA INPUT 140 - 300VAC ±5% for 230VAC mode Voltage Range 140 - 290VAC ±5% for 220VAC mode Frequency 50Hz/60Hz (Auto-sensing) Single + GND Phase OUTPUT Voltage Range 220VAC/230VAC + 12%-14% Battery Mode 220VAC/230VAC ±10%... - Page 11 Specifications MODEL INSPIRE 1203SFCU INSPIRE 1253SFCU Capacity 1200 VA 1250 VA INPUT 140 - 300VAC ±5% for 230VAC mode Voltage Range 140 - 290VAC ±5% for 220VAC mode Frequency 50Hz/60Hz (Auto-sensing) Single + GND Phase OUTPUT Voltage Range 220VAC/230VAC + 12%-14% 230VAC + 12%-14% Battery Mode 220VAC/230VAC ±10%...
- Page 12 Specifications MODEL INSPIRE 1503SFCU INSPIRE 2003SFCU INSPIRE 3003SFCU Capacity 1500 VA 2000 VA 3000 VA INPUT 140 - 300VAC ±5% for 230VAC mode 162 - 300VAC ±5% for Voltage Range 220/230/240VAC mode 140 - 290VAC ±5% for 220VAC mode Frequency 50Hz/60Hz (Auto-sensing) 60Hz/50Hz (Auto-sensing) Single + GND...
- Page 13 Peringatan Penting Keselamatan PERHATIAN: Untuk mencegah resiko kebakaran atau sengatan listrik, pasang pada daerah yang suhu dan kelembabannya terkontrol (Lihat spesifikasi untuk rentang suhu dan kelembaban yang ditentukan.) Untuk mengurangi resiko overheating dari UPS, JANGAN menutup ventilasi UPS dan menempatkan pada daerah yang terkena sinar matahari langsung atau menempatkan dekat dengan peralatan yang memancarkan panas.
- Page 14 1. Ilustrasi dalam dokumen dokumen ini mungkin tampak berbeda dari model anda. 2. Jika salah satu item di atas tidak dikemas dalam paket anda ketika terbuka, silakan berkonsultasi dengan reseller anda segera. Keterangan INSPIRE 703SFC Tampak Depan Tampak Belakang Keterangan:...
- Page 15 Keterangan INSPIRE 853SFCU Tampak Depan Tampak Belakang Keterangan: Indikator AC Mode: Lampu Switch Daya Port RJ11 (In & Out) penerangan Hijau LED Indikator Fault: Lampu Port USB Backup Outlets penerangan Merah LED Indikator Modus Baterai: Daya AC input LED Kuning berkedip INSPIRE 1203SFCU Tampak Depan Tampak Belakang...
- Page 16 Keterangan INSPIRE 1253SFCU Tampak Depan Tampak Belakang Keterangan: Indikator AC Mode: Lampu Switch Daya Port RJ45 (In & Out) penerangan Hijau LED Indikator Fault: Lampu Daya AC Input Backup Outlets penerangan Merah LED Indikator Modus Baterai: Port USB LED Kuning berkedip INSPIRE 1503SFCU Tampak Depan Tampak Belakang...
- Page 17 Keterangan INSPIRE 2003SFCU Tampak Hadapan Tampak Belakang Keterangan: Indikator AC Mode: Lampu Switch Daya Port USB penerangan Hijau LED Indikator Fault: Lampu Kipas Port RJ45 (In & Out) penerangan Merah LED Indikator Modus Baterai: Daya AC input Backup Outlets LED Kuning berkedip INSPIRE 3003SFCU Tampak Hadapan Tampak Belakang...
- Page 18 PERHATIAN: JANGAN menghubungkan printer lase atau scanner ke UPS. Hal ini akan menyebabkan kerusakan unit. Perlindungan Lonjakan Jalur Data (Hanya untuk model dengan RJ11/RJ45) Hubungkan satu saluran jaringan/telepon/faks ke stopkontak “IN” yang dilindungi lonjakan arus di bagian belakang panel unit UPS. Terhubung dari outlet “OUT” dengan jaringan/ telepon/faks lain kabel.
- Page 19 Unduh Perangkat Lunak dan Instalasi Catatan: Hanya untuk model dengan port USB. Silakan ikuti langkah-langkah di bawah ini untuk mengunduh dan menginstal perangkat lunak monitoring: 1. Pergi ke situs http://www.power-software-download.com 2. Klik ikon perangkat lunak ViewPower dan kemudian memilih OS yang dibutuhkan untuk men-download perangkat lunak.
- Page 20 Penyimpanan dan Pemeliharaan Saat mengganti baterai, pasang nomor dan jenis baterai yang sama. Jangan mencoba membuang baterai dengan membakarnya. Ini dapat menyebabkan baterai ledakan. Baterai harus dibuang dengan benar sesuai dengan peraturan setempat. Jangan membuka atau merusak baterai. Keluarnya elektrolit dapat menyebabkan cedera pada kulit dan mata.
- Page 21 Spesifikasi MODEL INSPIRE 703SFC INSPIRE 853SFCU Capacity 650 VA 850 VA INPUT 140 - 300VAC ±5% for 230VAC mode Voltage Range 140 - 290VAC ±5% for 220VAC mode Frequency 50Hz/60Hz (Auto-sensing) Single + GND Phase OUTPUT Voltage Range 220VAC/230VAC + 12%-14% Battery Mode 220VAC/230VAC ±10%...
- Page 22 Spesifikasi MODEL INSPIRE 1203SFCU INSPIRE 1253SFCU Capacity 1200 VA 1250 VA INPUT 140 - 300VAC ±5% for 230VAC mode Voltage Range 140 - 290VAC ±5% for 220VAC mode Frequency 50Hz/60Hz (Auto-sensing) Single + GND Phase OUTPUT Voltage Range 220VAC/230VAC + 12%-14% 230VAC + 12%-14% Battery Mode 220VAC/230VAC ±10%...
- Page 23 Spesifikasi MODEL INSPIRE 1503SFCU INSPIRE 2003SFCU INSPIRE 3003SFCU Capacity 1500 VA 2000 VA 3000 VA INPUT 140 - 300VAC ±5% for 230VAC mode 162 - 300VAC ±5% for Voltage Range 220/230/240VAC mode 140 - 290VAC ±5% for 220VAC mode Frequency 50Hz/60Hz (Auto-sensing) 60Hz/50Hz (Auto-sensing) Single + GND...
- Page 24 Register online for your Product Warranty at www.prolink2u.com Prolink is a registered trademark of Fida International (S) Pte Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. Product images are purely for illustrative purposes and may defer from the...
- Page 27 Kami mengucapkan terima kasih atas kepercayaan Anda memilih produk DAFTAR LAYANAN PURNA JUAL : kami dan selaku Distributor di Indonesia, kami memberikan garansi Jasa 1. PT. PROLINK INTIDATA NUSANTARA | JL. Perbaikan dan Penggantian Suku Cadang UPS dan Baterai dengan CIDENG BARAT NO. 79, JAKARTA PUSAT 10150 |...
- Page 28 Prolink UPS (Uninterruptable Power Supply) Model/Tipe: KARTU GARANSI Nama Kapasitas: Name Alamat Nomor Seri: Address Tgl. Pembelian: Berlaku sampai: Kota: Kode Pos: Toko Tel / Fax: Kota Pelanggan PT. Prolink Intidata Nusantara Cap Toko Tanda pendaftaran Kartu Garansi harus diisi lengkap, kirimkan paling lambat 14 hari setelah Tgl. Pembelian Telp.
