Summary of Contents for Vivo STAND-E-149

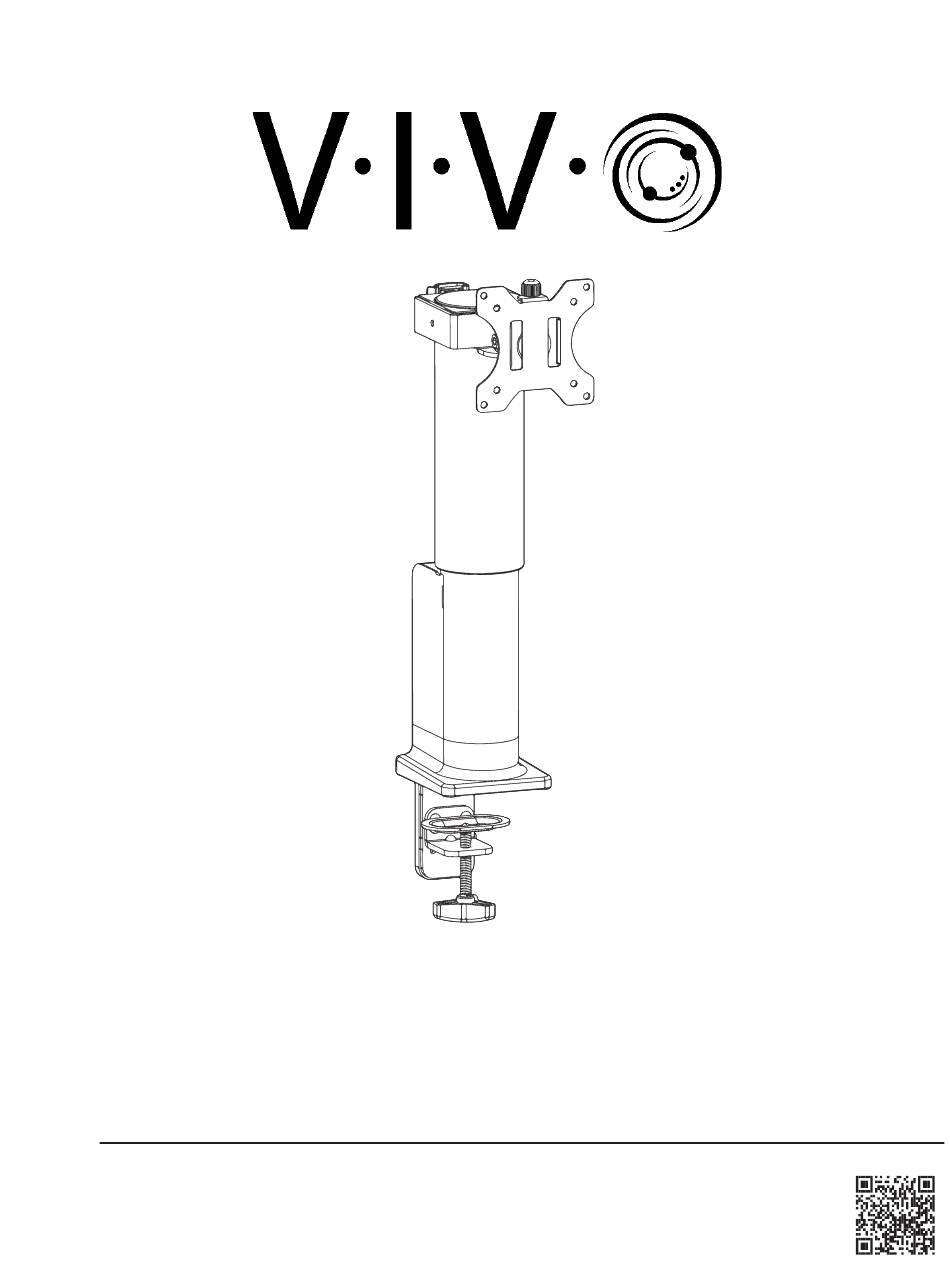

- Page 1 Electric Single Ultrawide Monitor Desk Mount SKU: STAND-E-149 Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-e-149...
- Page 2 7AM - 7PM Monday-Friday Give us a Call: Chat Us: Email Us: 309-278-5303 www.vivo-us.com help@vivo-us.com We’re Here for You! Our customer-minded support team is here for YOU, Monday-Friday 7am-7pm CST. We offer immediate assistance with rapid response times from customer service agents and product techncians to...
-
Page 3: Electrical Safety Instructions
If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. -
Page 4: Package Contents
Package Contents A (x1) B (x1) C (x1) D (x1) E (x1) Electric Stand Lower Clamp Upper Clamp Clamp Cable Clip Arm Bracket Bracket Bracket F (x1) G (x1) H (x1) I (x1) J (x1) VESA Plate Cable Sleeve AC Adapter Power Cable Control Panel M (x2) -
Page 5: Tools Needed
Tools Needed: Weight Capacity: 22lbs (10kg) Phillips Pencil Scissors Screwdriver Drill... -
Page 6: Assembly Steps
ASSEMBLY STEPS STEP 1 SECURE CLAMP BRACKET Attach Upper Clamp Bracket (C) to the bottom of the Electric Stand (A) using M6x12mm Screws (S-A) and 4mm Allen Wrench (T-A). Remove protective film from Large Pad (L) then attach it to the bottom of the stand. A (x1) C (x1) L (x1) - Page 7 STEP 2 A. DESKTOPS 10-55mm (0.40”-2.15”) FOR DESKTOPS 10-55mm (0.40”-2.15”) Align the key slots on Lower Clamp Bracket (B) with the screws on Upper Clamp Bracket (C). Pull Lower Clamp Bracket (B) down and lock the screws on Upper Clamp Bracket (C) in place with the 4mm Allen Wrench (T-A).
- Page 8 STEP 2 B. DESKTOPS 50-85mm (2”-3.35”) FOR DESKTOPS 50-85mm (2”-3.35”) Remove the screws on Upper Clamp Bracket (C) and reassemble them into the lower set of holes using 4mm Allen Wrench (T-A). Align the key slots on Lower Clamp Bracket (B) with the screws on Upper Clamp Bracket (C). Pull Lower Clamp Bracket (B) down and lock the screws on Upper Clamp Bracket (C) in place with the 4mm Allen Wrench (T-A).
- Page 9 STEP 3 SECURE CLAMP TO DESKTOP Clamp the stand assembly onto desk and press the Clamp Cable Clip (D) onto Upper Clamp Bracket (C). D (x1) STEP 4 ATTACH ARM BRACKET Partially loosen the screw the on side of Arm Bracket (E) using 6mm Allen Wrench (T-B). Slide Arm Bracket onto the post of Electric Stand (A) and secureusing 6mm Allen Wrench.
- Page 10 STEP 5 CONNECT VESA PLATE TO MONITOR Attach VESA Bracket (E) to the monitor using either M4x12mm (M-A) or M5x12mm Screw (M-B) and Washers (M-C) along with a Phillips Screwdriver. F (x1) M-A (x4) M-B (x4) M-C (x4)
- Page 11 STEP 6 SECURE MONITOR ON STAND Slide the monitor onto tilt joint of the Arm Bracket (E) and lock VESA Plate (F) in place using Screw Cap(S-B), M3x8mm Screw (S-C) and a Phillips Screwdriver. Adjust monitor height alignment by turning Screw Cap by hand or using 6mm Allen Wrench (T-B). S-B (x1) S-C (x1)
- Page 12 STEP 7 WARNING Large monitors can be very difficult to adjust by yourself. Please use caution and have someone assist you with adjusting your monitor to avoid possible damage or injury. ADJUST TILT JOINT The tilt-joint has been pre-tightened and larger monitors may tilt upward when mounted. Slowly adjust the monitor angle downward by hand until it is at your desired angle.
-
Page 13: Connect Power
Connect cables between Electric Stand (A), Control Panel (L), Splitter Cable (M), AC Adapter (J), and Power Cable (K) as shown below. K (x1) Note: Extra Cable (L1) relates to a feature not available on this product and is left unconnected. For more information, please contact Product Support at 309-278-5303 or help@vivo-us.com. - Page 14 STEP 9 CONNECT CONTROL PANEL TO DESKTOP Attach the Control Panel (J) to the underside of the desktop using ST3.5x18mm Screws (S-D) as shown. Remove protective film from Cable Clip (N) and secure the Extra Cable (J1) to the desktop. M (x1) J (x1) H (x1)
-
Page 15: Setup Procedure
STEP 10 SETUP PROCEDURE The stand will now be setup for electric height adjustments. 1. Set Device Display: Press and hold the “M” button on Control Panel for 2 seconds. The screen should display 39.0cm. If the display shows 73.0cm, press and hold the “M” button for 2 seconds again. - Page 16 STEP 11 SETTING VIEWING HEIGHT FOR STANDING Set your height adjustable to a comfortable standing position. Then press on Control Panel to adjust the montior to a comfortable ergonomic viewing height while standing. Press the and “S-” will be displayed. Now press the key within five seconds to save your preferred standing height.
-
Page 17: Route Cables
STEP 12 ROUTE CABLES Route cables through Cable Sleeve (K). Make sure there is enough slack in the cables and sleeve when the electric stand is at its tallest height. Run Cable Sleeve down the back of the stand and secure into Clamp Cable Clip (D). K (x1) - Page 18 ADJUST AS DESIRED +90° to -90° Tilt 360° Swivel 360° Rotation WARNING Large monitors can be very difficult to adjust by yourself. Please use caution and have someone assist you with adjusting your monitor to avoid possible damage or injury.
-
Page 19: Control Panel Instructions
CONTROL PANEL INSTRUCTIONS UPWARD AND DOWNWARD MOVEMENT Press and hold the until the monitor reaches the desired height. MEMORY PRESETS The control panel features 3 memory presets that allow you to save a height setting to easily return to it. 1. -
Page 20: Sleep Mode
TIMED REMINDER MODE Set a timer to remind you to transition from sitting to standing or vice verse. 1. Press and the screen will flash “0.5h” representing 30 minutes. 2. Press repeatedly to increase 0.5 hours at a time. The maximum timer setting is 2 hours. The timer is set when the display stops flashing and the indicator light in the top right corner of the controller is on. - Page 21 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...
- Page 22 WHO WE ARE VIVO is more than a brand of ergonomic office furniture. We are a team of creative and innovative indivuduals working together to offer high quality, affordable ergonomic solutions. We think and work outside of the box to serve...
-
Page 23: Need Assistance
Call Us: 309-278-5303 Average Resolution Time: 5m 4s Chat Us: www.vivo-us.com Average Resolution Time: < 15m Email Us: help@vivo-us.com Average Resolution Time: 1HR 8M 23% within < 15m 38% within <... - Page 24 LAST UPDATED: 09/22/2023 REV1LF Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
