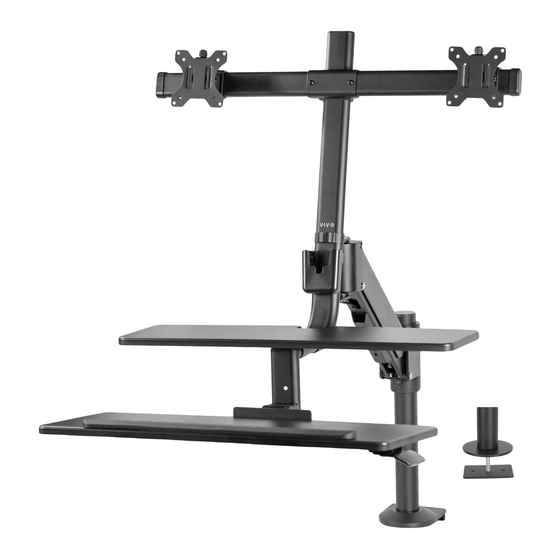

- Page 1 Sit to Stand Dual Monitor Desk Mount Workstation Instruction Manual SKU: STAND-SIT2D Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-sit2d help@vivo-us.com www.vivo-us.com 309-278-5303...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 13.2 lbs 4.4 lbs Failure to do so may result in serious injury. (6 kg) (2 kg) PER ARM TRAY Phillips Screwdriver ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Loosen clamp bolts in clamp (M) using 6mm Allen wrench (C1). Slide decorative cover (L) onto pole (C).
- Page 4 STEP 2 Slide arm (A) onto pole (C). Adjust stopper height with 4mm allen wrench (B1). STEP 3 Apply rubber pads (Z) to brackets (R) as shown. STEP 4 Attach upper tray (E) and brackets (R) to tray pole (D) using bolts (T) and tighten with 4mm Allen wrench (B1).
- Page 5 STEP 6 Attach lower tray (F) to plate on tray pole (D) using bolts (T) and 4mm Allen wrench (B1). Mount release handle and cable management clip (Q) to preferred side of tray using bolts (T) and 4mm Allen wrench, then use the clip to secure the black tube. STEP 7 Attach cross-arm (B) to pole (D) using 4mm allen wrench (B1).
- Page 6 STEP 9 OPTION A: Flat Back Monitor Attach VESA plate (H) to monitor. For flat back monitors use screws (M-A or M-C) and washers (M-E). M- E M- A M- C OPTION B: Curved Back Monitor Attach VESA plate (H) to monitor. For curved back monitors use screws (M-B or M-D), M- E washers (M-E), and spacers (M-F).
- Page 7 STEP 12 Loosen two screws holding cable cover to arm, then slide cover forward to remove. STEP 13 Insert cables into cover and reattach cover to arm. Adjust as Desired +45° 360 ° -45° ±90 ° ±90 °...
- Page 8 - 83% within < 2hr - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
