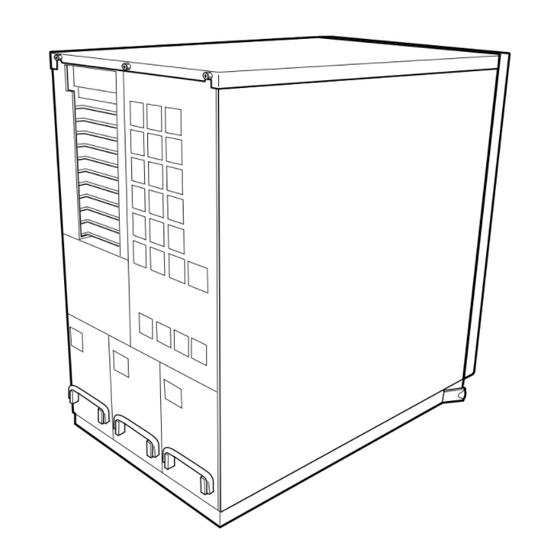

AD450NX Server System
This guide explains how to boot your server from the Server Configuration Software CD. After
booting the server from the CD, you can create software installation diskettes, run PC diagnostics
on the server, and read and/or print the online Product Guide.
WARNING
To avoid personal injury when unpacking the server, use only a
mechanical assist unit to lift it off the shipping pallet.
The minimum server configuration weighs about 58 kg (128 lbs), and
the maximum one weighs close to 79 kg (175 lbs). Do not attempt to lift
or move the server by the handles on the power supplies.
Contents
Select a site.......................................................................................................................... 3
After unpacking the server ................................................................................................... 4
Moving the server................................................................................................................. 4
Connect keyboard, mouse, and monitor, and printer ............................................................ 6
Obtain power cords .............................................................................................................. 8
Turn on video monitor and server......................................................................................... 8
Power-on self test ...............................................................................................................11
Boot from the server configuration software CD ..................................................................11
Access the server Product Guide ........................................................................................12
Using the Acrobat .PDF files.......................................................................................12
Using the PostScript .PS files .....................................................................................13
Copy server configuration software to diskettes ..................................................................13
If server won't boot from the CD..........................................................................................13
WARNING: English (US) ....................................................................................................15
AVERTISSEMENT: Français..............................................................................................17
WARNUNG: Deutsch .........................................................................................................19
AVVERTENZA: Italiano ......................................................................................................21
ADVERTENCIAS: Español.................................................................................................23
Quick Start Guide
for the
Order Number: 678270-002
AD450NX Server System 1
Advertisement
Table of Contents
Related Manuals for Intel AD450NX
Summary of Contents for Intel AD450NX
-
Page 1: Table Of Contents
Using the Acrobat .PDF files..................12 Using the PostScript .PS files ..................13 Copy server configuration software to diskettes ..............13 If server won’t boot from the CD..................13 WARNING: English (US) ....................15 AVERTISSEMENT: Français....................17 WARNUNG: Deutsch ......................19 AVVERTENZA: Italiano ......................21 ADVERTENCIAS: Español....................23 AD450NX Server System 1... - Page 2 Intel product could create a situation where personal injury or death may occur. Intel may make changes to specifications and product descriptions at any time, without notice.
-
Page 3: Select A Site
Spacious enough to provide sufficient room behind and around the server so that you can remove AC power from it by unplugging the power cord from each power supply or wall outlet • Away from sources of vibration or physical shock AD450NX Server System 3... -
Page 4: After Unpacking The Server
After unpacking the server Inspect the shipping box for evidence of mishandling during transit. If the shipping box is damaged, photograph it for reference. After removing the contents, keep the damaged box and the packing materials. If the contents appear damaged, file a damage claim with the carrier immediately. - Page 5 OM06775 Hinged plastic caster lock Closed Open AD450NX Server System 5...
-
Page 6: Connect Keyboard, Mouse, And Monitor, And Printer
Connect keyboard, mouse, and monitor, and printer † Keyboard Connect the signal cable of a PS/2 -compatible keyboard to the keyboard port on the server I/O panel. Mouse Connect the signal cable of a PS/2-compatible mouse to the mouse port on the server I/O panel. - Page 7 PS/2-compatible keyboard port, 6-pin miniature Deutsche Industrie Norm (DIN) connector PS/2-compatible mouse port, 6-pin miniature Deutsche Industrie Norm (DIN) connector † Intelligent Chassis Management Bus (ICMB) port 1, SEMCONN 6-pin connector Intelligent Chassis Management Bus (ICMB) port 2, SEMCONN 6-pin connector AD450NX Server System 7...
-
Page 8: Obtain Power Cords
Obtain power cords WARNING Do not attempt to modify or use AC power cords that are not the exact type required. Because power cords are not supplied for the server power supplies, you must obtain power cords that meet the following criteria: •... - Page 9 I LED (green) power supply current OK When lit, indicates power supply is on and OK. When off, indicates the power supply has shut down because of an overcurrent condition or the power supply has failed. AD450NX Server System 9...
- Page 10 6. If the server does not come on when you plug the power cords into the power outlets, press the power switch on the front panel. 7. Verify that the power-on light on the front panel is lit. After a few seconds the power-on self test (POST) begins.
-
Page 11: Power-On Self Test
Handle the CD only by the inner and outer edges. Do not touch the data side of the CD—the side without the label. 3. Gently grasp the center hole and outer edge of the CD, remove it from the case, and place it label-side up in the tray. AD450NX Server System 11... -
Page 12: Access The Server Product Guide
4. Press the open/close button or gently push on the tray—it will automatically slide into the drive. OM06774 Open/close push-button switch CD tray 5. Press the reset switch on the front panel to reboot the server. 6. When POST completes, the server beeps once, boots from the CD, installs a mouse driver, and displays the CD-ROM menu bar. -
Page 13: Using The Postscript .Ps Files
If so, the server will try to boot from a diskette or other device rather than from the CD we have provided. By pressing <Esc> during POST, you can override the boot sequence specified in Setup by selecting a different primary boot device. This override is valid only for that AD450NX Server System 13... - Page 14 specific boot. Subsequent boots revert back to the sequence specified in Setup. If the chosen device fails to load the operating system, the BIOS reverts to the previous boot sequence. The <Esc> hot key is valid while the “Press <F2> key to enter Setup” message is displayed on the screen.
-
Page 15: Warning: English (Us)
Attach the covers to the chassis with the screws removed earlier, and tighten them firmly. Insert and lock the padlock to the system to prevent unauthorized access inside the system. Connect all external cables and the AC power cord(s) to the system. continued AD450NX Server System 15... - Page 16 WARNING: English (continued) A microprocessor and heat sink may be hot if the system has been running. Also, there may be sharp pins and edges on some board and chassis parts. Contact should be made with care. Consider wearing protective gloves. Danger of explosion if the battery is incorrectly replaced.
-
Page 17: Avertissement: Français
Revissez solidement les panneaux du boîtier avec les vis retirées plus tôt. Remettez le cadenas en place et verrouillez-le afin de prévenir tout accès non autorisé à l’intérieur du système. Rebranchez tous les cordons d’alimentation c. a. et câbles externes au système. suite AD450NX Server System 17... - Page 18 AVERTISSEMENT: Français (suite) Le microprocesseur et le dissipateur de chaleur peuvent être chauds si le système a été sous tension. Faites également attention aux broches aiguës des cartes et aux bords tranchants du capot. Nous vous recommandons l'usage de gants de protection. Danger d'explosion si la batterie n'est pas remontée correctement.
-
Page 19: Warnung: Deutsch
Schrauben wieder anbringen. Ziehen Sie diese gut an. Bringen Sie die Verschlußeinrichtung (Padlock) wieder an und schließen Sie diese, um ein unerlaubtes Öffnen des Systems zu verhindern. Schließen Sie alle externen Kabel und den AC Stromanschlußstecker Ihres Systems wieder an. Fortsetzung AD450NX Server System 19... - Page 20 WARNUNG: Deutsch (Fortsetzung) Der Mikroprozessor und der Kühler sind möglicherweise erhitzt, wenn das System in Betrieb ist. Außerdem können einige Platinen und Gehäuseteile scharfe Spitzen und Kanten aufweisen. Arbeiten an Platinen und Gehäuse sollten vorsichtig ausgeführt werden. Sie sollten Schutzhandschuhe tragen. Bei falschem Einsetzen einer neuen Batterie besteht Explosionsgefahr.
-
Page 21: Avvertenza: Italiano
Attaccare le coperture al telaio con le viti tolte in precedenza e avvitarle strettamente. Inserire e chiudere a chiave il lucchetto sul retro del sistema per impedire l’accesso non autorizzato al sistema. Ricollegare tutti i cavi esterni e le prolunghe AC del sistema. continua AD450NX Server System 21... - Page 22 AVVERTENZA: Italiano (continua) Se il sistema è stato a lungo in funzione, il microprocessore e il dissipatore di calore potrebbero essere surriscaldati. Fare attenzione alla presenza di piedini appuntiti e parti taglienti sulle schede e sul telaio. È consigliabile l'uso di guanti di protezione. Esiste il pericolo di un esplosione se la pila non viene sostituita in modo corretto.
-
Page 23: Advertencias: Español
Incorpore las tapas al chasis mediante los tornillos extraídos anteriormente, tensándolos firmemente. Inserte el bloqueo de seguridad en el sistema y bloquéelo para impedir que pueda accederse al mismo sin autorización. Conecte todos los cables externos y los cables de alimentación CA al sistema. continúa AD450NX Server System 23... - Page 24 ADVERTENCIAS: Español (continúa) Si el sistema ha estado en funcionamiento, el microprocesador y el disipador de calor pueden estar aún calientes. También conviene tener en cuenta que en el chasis o en el tablero puede haber piezas cortantes o punzantes. Por ello, se recomienda precaución y el uso de guantes protectores.
