Intel AD450NX Quick Start Manual page 7

A
G
F
E

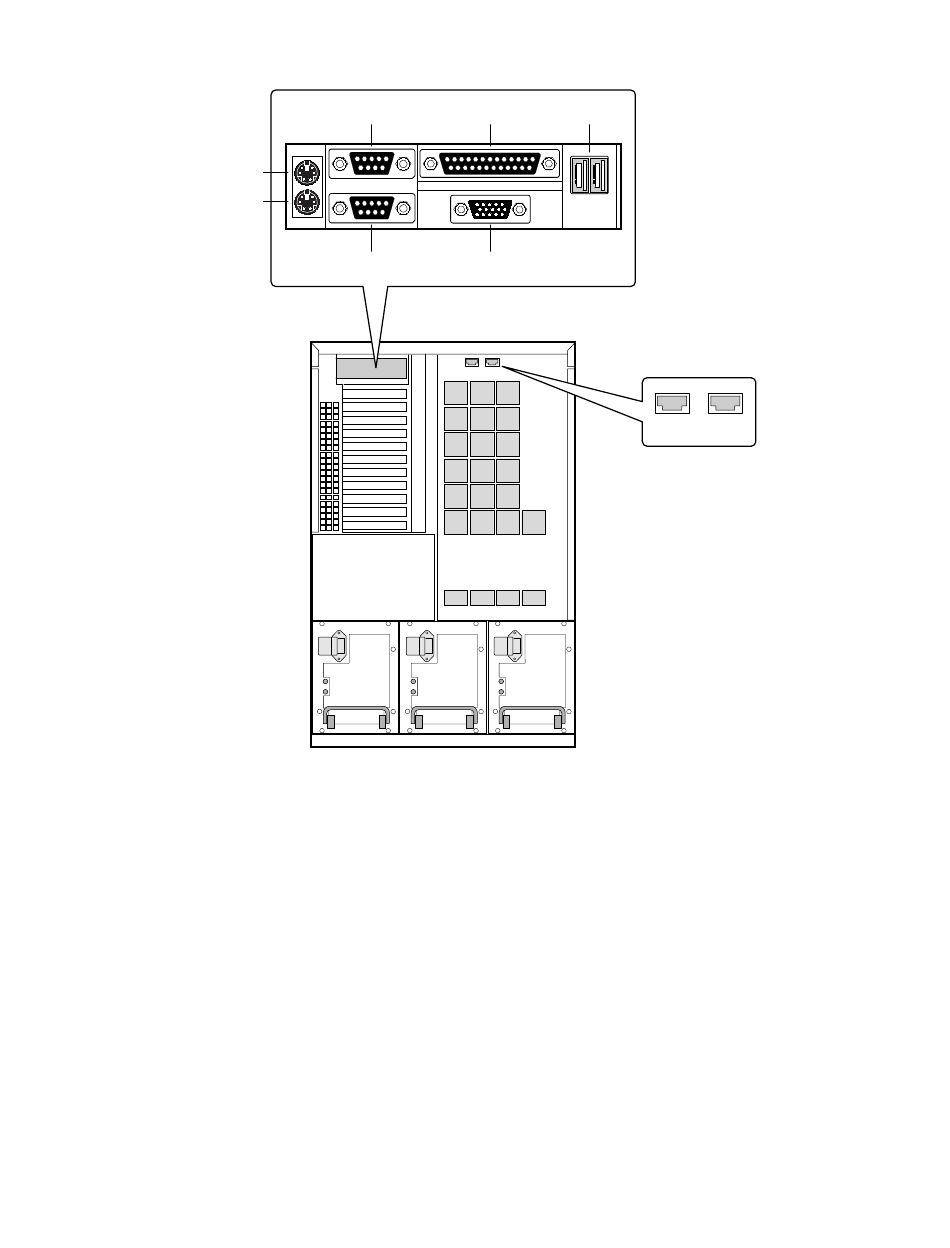

A PS/2-compatible serial port 1 (COM1), 9-pin RS-232 connector
B PS/2-compatible parallel port (LPT), 25-pin bidirectional subminiature D connector
C USB ports O and 1, 4-pin connectors
D Super VGA compatible, 15-pin video connector
E PS/2-compatible serial port 2 (COM2), 9-pin RS-232 connector
F PS/2-compatible keyboard port, 6-pin miniature Deutsche Industrie Norm (DIN) connector
G PS/2-compatible mouse port, 6-pin miniature Deutsche Industrie Norm (DIN) connector
H Intelligent Chassis Management Bus (ICMB) port 1, SEMCONN
I Intelligent Chassis Management Bus (ICMB) port 2, SEMCONN 6-pin connector
B C
D
†
6-pin connector
H I
OM06193
AD450NX Server System 7
