Crestron Green Light™
DIN-8SW8
DIN Rail High-Voltage Switch
Operations & Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GreenLight DIN-8SW8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Crestron GreenLight DIN-8SW8

Summary of Contents for Crestron GreenLight DIN-8SW8

  • Page 1 Crestron Green Light™ DIN-8SW8 DIN Rail High-Voltage Switch Operations & Installation Guide...
  • Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON All brand names, product names and trademarks are the property of their respective owners. ©2008 Crestron Electronics, Inc.

  • Page 3: Table Of Contents

    Crestron DIN-8SW8 Contents Crestron Green Light™ DIN Rail High-Voltage Switch: DIN-8SW8 Introduction ... 1 Features and Functions ... 1 Applications... 3 Specifications ... 4 Physical Description... 6 Industry Compliance ... 9 Setup ... 10 Network Wiring... 10 Identity Code ... 10 Installation ...

  • Page 5: Crestron Green Light™ Din Rail High-Voltage Switch: Din-8Sw8

    • Setup via front panel or software • Programmable functionality via DIN-AP2 or other 2-Series control system • 9M wide DIN rail mounting Operations & Installation Guide – DOC. 6666A DIN Rail High-Voltage Switch ® communications DIN Rail High-Voltage Switch: DIN-8SW8 • 1...

  • Page 6: Din Rail Installation

    States can be set and saved locally from the front panel or remotely via software. 2 • DIN Rail High-Voltage Switch: DIN-8SW8 Crestron DIN-8SW8 ®...

  • Page 7: Applications

    Crestron DIN-8SW8 Applications The following diagram shows a DIN-8SW8 in a typical application. DIN-8SW8 in a Typical Application Operations & Installation Guide – DOC. 6666A DIN Rail High-Voltage Switch DIN Rail High-Voltage Switch: DIN-8SW8 • 3...

  • Page 8: Specifications

    File Environmental Temperature Humidity Heat Dissipation (Continued on following page) 4 • DIN Rail High-Voltage Switch: DIN-8SW8 10 Amps incandescent, 5 Amps fluorescent, 0.5 HP @ 120-240 Volts AC, 50/60 Hz; 5 Amps @ 30 Volts DC 0.05 Amps @ 12 Volts DC...

  • Page 9: Specification

    94.2 mm (3.71 in) 159 mm (6.26 in) 59.5 mm (2.35 in) 369 g (13 oz) DIN Rail Cresnet Distribution Block DIN Rail Cresnet Distribution Hub DIN Rail 50 Watt Cresnet Power Supply DIN Rail High-Voltage Switch: DIN-8SW8 • 5...

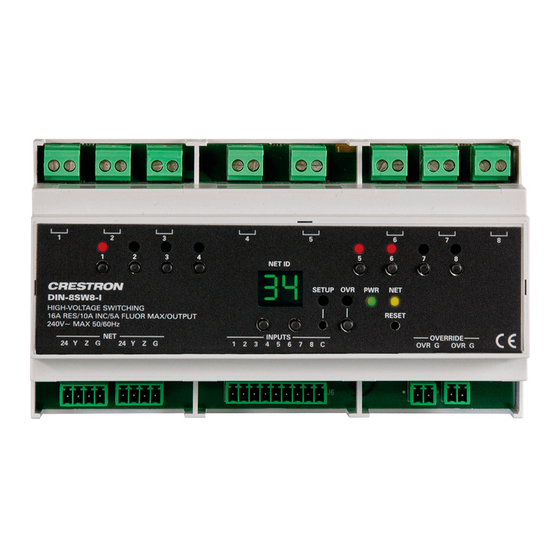

  • Page 10: Physical Description

    This section provides information on the connections, controls and indicators available on your DIN-8SW8. DIN-8SW8 Physical View DIN-8SW8 Overall Dimensions 159 mm (6.26 in) 6 • DIN Rail High-Voltage Switch: DIN-8SW8 90 mm (3.55 in) Operations & Installation Guide – DOC. 6666A Crestron DIN-8SW8 58 mm (2.29 in)
  • Page 11 Pin 1 (24) Power (24 Volts DC) Pin 2 (Y) Data Pin 3 (Z) Data Pin 4 (G) Ground (2) 7-Segment green LED digits and (2) miniature pushbuttons for setting Cresnet ID and indicating errors DIN Rail High-Voltage Switch: DIN-8SW8 • 7...
  • Page 12 (LED and BUTTON) OVERRIDE with LEDs and BUTTON RESET * Interface connectors for NET and OVERRIDE ports are provided with the unit. 8 • DIN Rail High-Voltage Switch: DIN-8SW8 Crestron DIN-8SW8 DESCRIPTION (1) Red LED and (1) recessed miniature pushbutton for enabling setup mode and touch-settable ID (2) 2-pin 3.5 mm detachable...

  • Page 13: Industry Compliance

    Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Operations & Installation Guide – DOC. 6666A DIN Rail High-Voltage Switch DIN Rail High-Voltage Switch: DIN-8SW8 • 9...

  • Page 14: Setup

    Net ID or press the right button under the NET ID display to change the least significant digit of the Net ID number. 10 • DIN Rail High-Voltage Switch: DIN-8SW8 Operations & Installation Guide – DOC. 6666A Crestron DIN-8SW8...

  • Page 15: Installation

    (32º to 104º F). The relative humidity must be 10% – 90% (non-condensing). NOTE: When installing in an enclosure, high-voltage devices should be grouped separately from low-voltage devices. Operations & Installation Guide – DOC. 6666A DIN Rail High-Voltage Switch: DIN-8SW8 • 11 DIN Rail High-Voltage Switch ® program.
  • Page 16 DIN rail row. Crestron’s Engraver software (version 4.0 or later) can generate appropriate labels for all Crestron DIN rail products. 12 • DIN Rail High-Voltage Switch: DIN-8SW8 Operations & Installation Guide – DOC. 6666A Crestron DIN-8SW8 DIN-8SW8...

  • Page 17: Hardware Hookup

    NOTE: Each switch leg of the DIN-8SW8 may be fed from a separate circuit breaker. When making network connections to the DIN-8SW8, use a Crestron power supply. Operations & Installation Guide – DOC. 6666A DIN Rail High-Voltage Switch: DIN-8SW8 • 13 DIN Rail High-Voltage Switch (12 AWG) wire. Wire...
  • Page 18 DIN-8SW8. Load Connection Example for the DIN-8SW8 120/240 VOLTS FROM BREAKER 14 • DIN Rail High-Voltage Switch: DIN-8SW8 Operations & Installation Guide – DOC. 6666A 1 - 8: CONNECTIONS FOR CONTROLLED DEVICES OVERRIDE: FROM DEVICE PROVIDING OVERRIDE SIGNAL &...

  • Page 19: Programming Software

    SIMPL Windows. For additional details, download SystemBuilder from the Crestron website and examine the extensive help file. Operations & Installation Guide – DOC. 6666A DIN Rail High-Voltage Switch: DIN-8SW8 • 15 DIN Rail High-Voltage Switch ®...

  • Page 20: Programming With D3 Pro

    • To incorporate the DIM-8SW8into the system, drag the DIN-8SW8 from the Lighting | Lighting (Din-Rail Series) folder of the Device Library and drop it in the System Views. 16 • DIN Rail High-Voltage Switch: DIN-8SW8 Operations & Installation Guide – DOC. 6666A Crestron DIN-8SW8...
  • Page 21 Net ID as shown in the following illustration. C2Net Device, Slot 5 • Additional DIN-8SW8 devices are assigned different Net ID numbers as they are added. Operations & Installation Guide – DOC. 6666A DIN Rail High-Voltage Switch: DIN-8SW8 • 17 DIN Rail High-Voltage Switch...

  • Page 22: Example Program

    Detail View. Each signal in the symbol is described in the SIMPL Windows help file (F1). Example Program An example program for the DIN-8SW8 is available from the Crestron website (www.crestron.com/exampleprograms). 18 • DIN Rail High-Voltage Switch: DIN-8SW8 Operations & Installation Guide – DOC. 6666A Crestron DIN-8SW8...

  • Page 23: Uploading And Upgrading

    • Display the DIN-8SW8’s “System Info” window (click the icon); communications are confirmed when the device information is displayed. Operations & Installation Guide – DOC. 6666A DIN Rail High-Voltage Switch: DIN-8SW8 • 19 DIN Rail High-Voltage Switch CONTROL SYSTEM SERIAL,...

  • Page 24: Programs And Firmware

    Network Device Tree) to show all network devices connected to the control system. Right-click on the DIN-8SW8 to display actions that can be performed on the DIN-8SW8. 20 • DIN Rail High-Voltage Switch: DIN-8SW8 Operations & Installation Guide – DOC. 6666A Crestron DIN-8SW8...

  • Page 25: Operation

    NOTE: If override states have not been stored, the factory default override state is all loads on. Operations & Installation Guide – DOC. 6666A DIN Rail High-Voltage Switch: DIN-8SW8 • 21 DIN Rail High-Voltage Switch...
  • Page 26 If the control system does not provide any values, the outputs will be set to the previously set values. 22 • DIN Rail High-Voltage Switch: DIN-8SW8 Operations & Installation Guide – DOC. 6666A Crestron DIN-8SW8...

  • Page 27: Problem Solving

    DIN-8SW8 Troubleshooting TROUBLE Device does not function. Unit ignores Cresnet commands. Operations & Installation Guide – DOC. 6666A DIN Rail High-Voltage Switch: DIN-8SW8 • 23 DIN Rail High-Voltage Switch POSSIBLE CAUSE(S) DIN-8SW8 is not Verify the receiving power. DIN-8SW8 is...

  • Page 28: Check Network Wiring

    (18 AWG) Crestron Certified Wire and drawing 20 watts should not have a length of run more than 101 meters (333 feet). Cresnet HP cannot be used. 24 • DIN Rail High-Voltage Switch: DIN-8SW8 Operations & Installation Guide – DOC. 6666A Where: L = Length of run (or chain) in feet R = 6 Ohms (Crestron Certified Wire: 0.75 MM (18 AWG))

  • Page 29: Reference Documents

    (www.crestron.com/onlinehelp) to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features. Operations & Installation Guide – DOC. 6666A DIN Rail High-Voltage Switch: DIN-8SW8 • 25 DIN Rail High-Voltage Switch DOCUMENT TITLE...

  • Page 30: Future Updates

    Check the Crestron website periodically for manual update availability and its relevance. Updates are identified as an “Addendum” in the Download column. 26 • DIN Rail High-Voltage Switch: DIN-8SW8 Operations & Installation Guide – DOC. 6666A Crestron DIN-8SW8...

  • Page 31: Return And Warranty Policies

    All brand names, product names and trademarks are the sole property of their respective owners. Windows is a registered trademark of Microsoft Corporation. Windows95/98/Me/XP/Vista and WindowsNT/2000 are trademarks of Microsoft Corporation. Operations & Installation Guide – DOC. 6666A DIN Rail High-Voltage Switch: DIN-8SW8 • 27 DIN Rail High-Voltage Switch...
  • Page 32 Crestron Electronics, Inc. Operations & Installation Guide – DOC. 6666A 15 Volvo Drive Rockleigh, NJ 07647 (2020748) Tel: 888.CRESTRON 05.08 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
