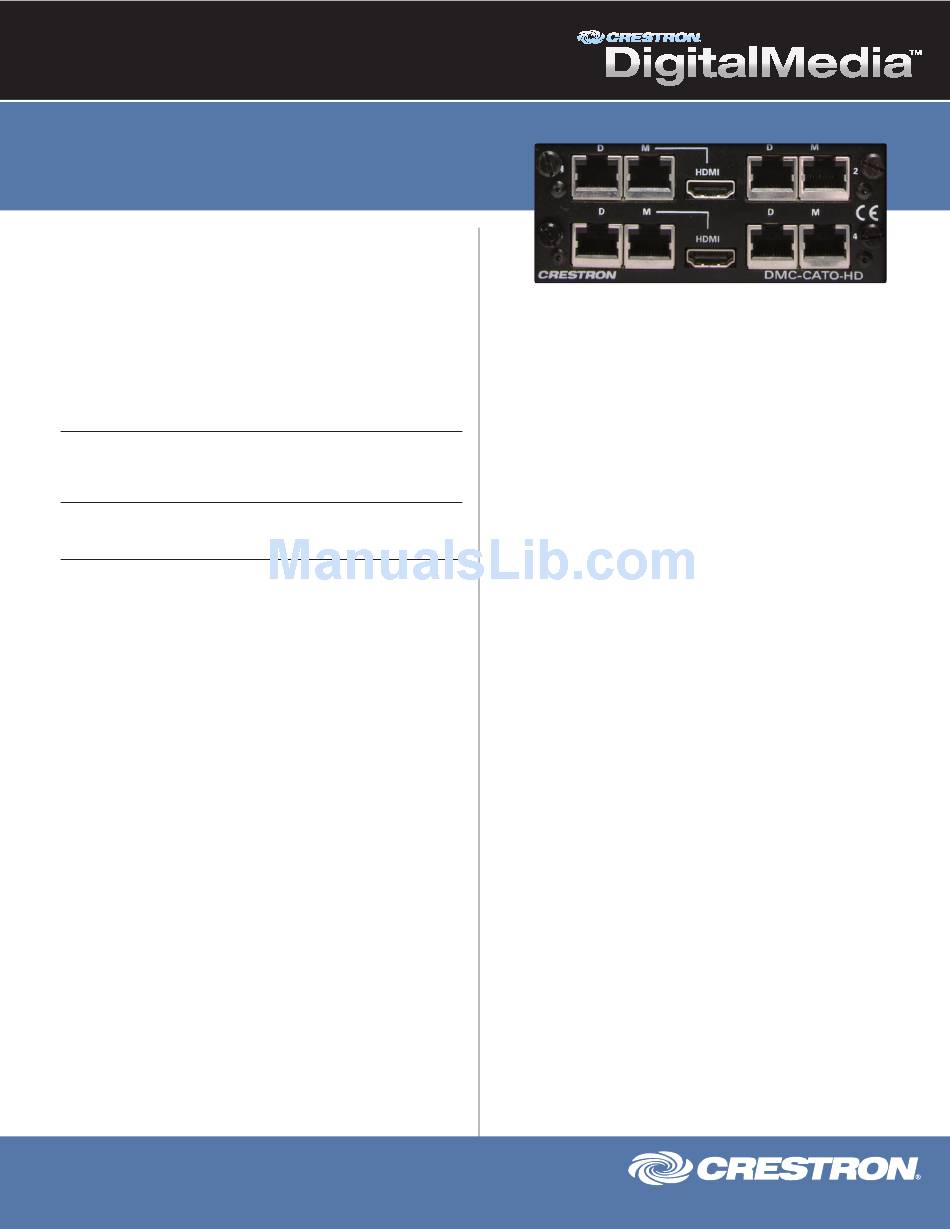

Crestron DigitalMedia DMC-CATO-HD Specifications

C C r r e e s s t t r r o o n n D D M M C C - - C C A A T T O O - - H H D D
Quad DM Output Card
w/HDMI for DM Switchers
The DMC-CATO-HD is an output card for a Crestron DigitalMedia
providing four DigitalMedia (DM) outputs to feed up to four individual DM
receivers via CAT5e/6 or DigitalMedia cable*.
The DMC-CATO-HD also provides two local HDMI outputs, configured in parallel
with DM Outputs #1 and #3. Each HDMI output carries the same audio and video
signals as its companion DM output, perfect for feeding a centralized audio
processor and remote display device simultaneously.

SPECIFICATIONS

Connectors

D D M M 1 1 – – 4 4 : (4) DM outputs, each composed of (2) 8-pin RJ45 female;
Connect to DM inputs of DM receivers or other DM devices via DM-CBL or CresCAT-D cable*
H H D D M M I I 1 1 , , 3 3 : (2) 19-pin Type A HDMI female;

Construction

Plug-in card, occupies (1) DM Switcher output card slot, includes steel faceplate w/black
matte powder coat finish

Weight

11.5 oz (326 g)
* For DigitalMedia wiring, use DM-CBL DigitalMedia Cable, CresCAT-D, or quality
CAT5e/CAT6 cable. Do NOT use low-skew cable. The maximum allowable cable
lengthdepends on multiple factors. One or more DM Repeaters (Model DM-DR)
may be required. Refer to the Crestron DigitalMedia Design Guide, Doc. #4789
for complete wiring guidelines.
Crestron Electronics, Inc. 15 Volvo Drive
l
Tel: 800.237.2041 / 201.767.3400 Fax: 201.767.1903
Specifications subject to change without notice. Doc.4772 01/09
