Assembly — Attaching the Fan Blades
Removing the rubber
8
packing mounts
□

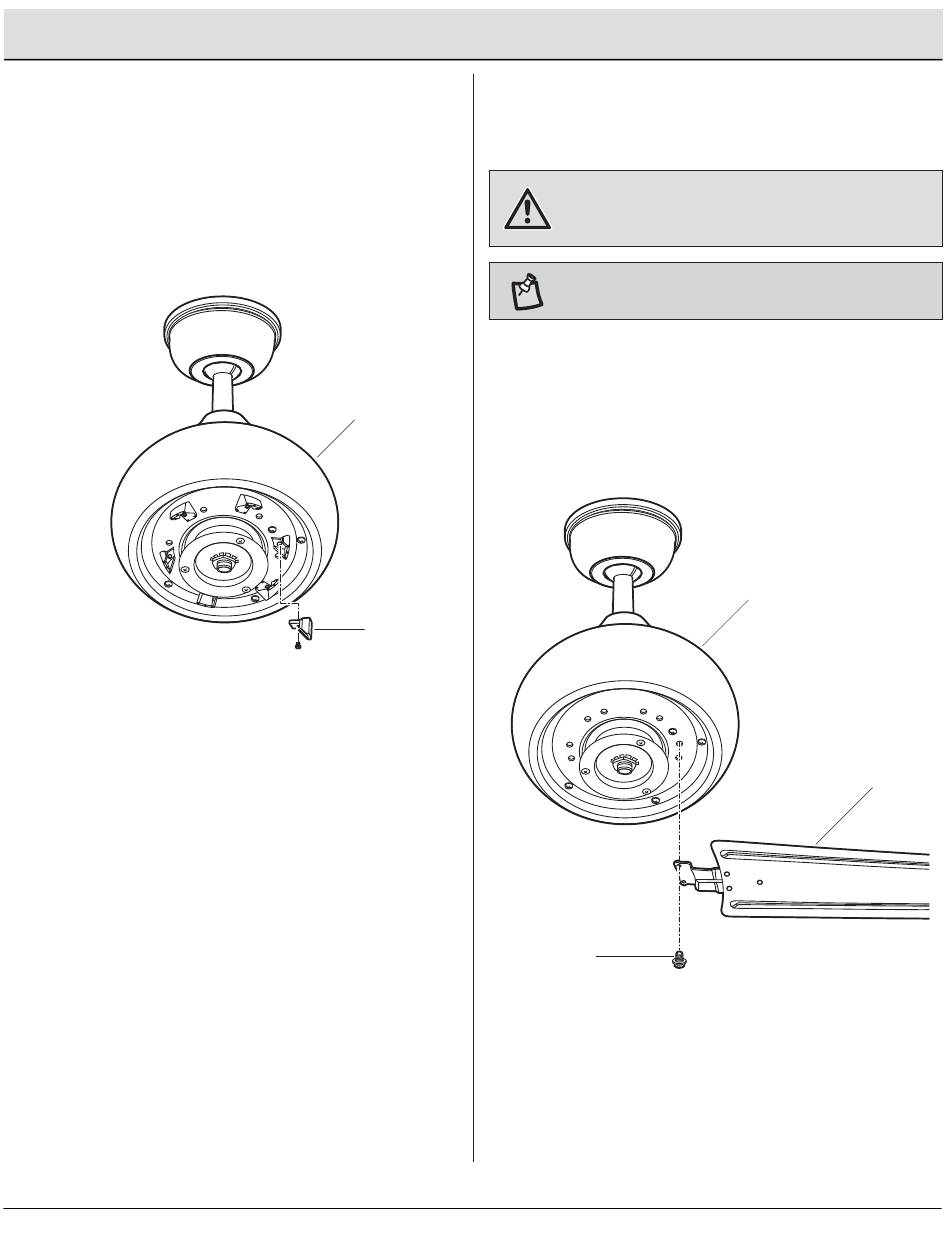

The fan motor assembly (G) is shipped with rubber
packing mounts (PP) to prevent movement during
transportation. Remove the six rubber packing
mounts (PP) from the fan motor assembly (G) and
discard prior to attaching the blade arms (H).
9
□
G
□
PP
14
Fastening the blade
assemblies to the motor
WARNING:
To reduce the risk of personal injury, do not
insert foreign objects between rotating fan blades (H).
NOTE:
The fan must be mounted with a minimum of 10 ft.
clearance from the trailing edge of the blades to the floor.
Align the holes from the blade (H) to the holes from
the motor (G), and secure the blade in place with
screws with lock washers (CC) provided.
Repeat this process to attach the other two blades
(H).
CC
G
H
