Item # 1001 029 135
Model # 51556
ETL Model # 56-BRM
USE AND CARE GUIDE

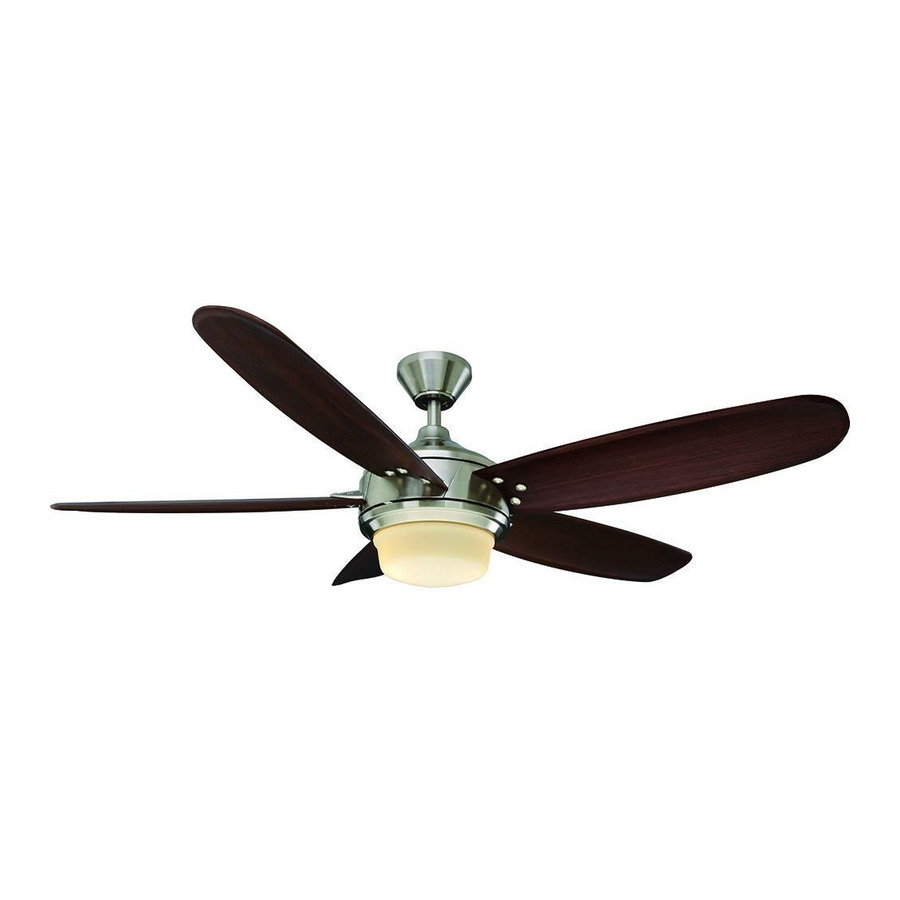

BREEZEMORE 56-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Table of Contents
Related Manuals for Home Decorators Collection 51556
Summary of Contents for Home Decorators Collection 51556
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..............2 Assembly ................7 Safety Information ............... 2 Operation ................13 Warranty ................3 Care and Cleaning ............. 16 Pre-Installation ..............3 Troubleshooting ..............16 Installation ................6 Safety Information READ AND SAVE THESE INSTRUCTIONS. WARNING: To reduce the risk of personal injury, do not bend the blade brackets (also referred to as To reduce the risk of electric shock, ensure the electricity has... -
Page 3: Warranty
A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by law. -
Page 4: Tools Required
Pre-Installation (continued) TOOLS REQUIRED Phillips Flat blade Adjustable Electrical Wire cutter screwdriver screwdriver wrench tape / Stripper Step ladder HARDWARE INCLUDED NOTE: Hardware should be packaged in a NOTE: Hardware not shown to actual size. blister pack. Part Description Quantity Part Description Quantity... -
Page 5: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Slide-on mounting bracket Fan-motor assembly with light kit pan (inside canopy) pre-attached Ball/downrod assembly Blade Canopy Light kit fitter assembly Decorative motor collar cover Glass bowl Light bulbs IMPORTANT: This product and/or components are governed by one or more of the following U.S. -
Page 6: Installation
Installation MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock NOTE: You may need a longer downrod to maintain or personal injury, mount to outlet box marked proper blade clearance when installing on a steep, sloped “Acceptable for fan support of 35 lbs. (15.9 Kg) ceiling. -
Page 7: Assembly
Assembly - Standard Ceiling Mount Preparing for mounting Routing the wires □ □ Remove the canopy bottom cover (J) from the canopy (C) by Route the wires exiting the top of the fan-motor turning the bottom cover counterclockwise until it unlocks. assembly (E) through the center of the canopy bottom □... - Page 8 Assembly - Hanging the Fan Attaching the fan to the electrical Hanging the fan □ WARNING: To reduce the risk of fire, electric shock or personal Carefully lift the fan-motor assembly (E) up to the slide-on injury, mount to outlet box marked “Acceptable for fan support mounting bracket (A).
- Page 9 Assembly - Hanging the Fan (continued) Making the electrical connection WARNING: Each wire not supplied with this fan is designed to accept up to one 12-gauge house wire and two wires from the fan. If you have larger than 12-gauge house wiring or more than one house wire to connect to the fan wiring, consult an Outlet box electrician for the proper size wire nuts to use.
- Page 10 Assembly - Hanging the Fan (continued) Wrapping the extra wire Mounting the fan-motor assembly (standard mount) WARNING: When using the standard ball/downrod mounting, the NOTE: Follow this step ONLY if you did not cut the extra length off tab in the ring at the bottom of the mounting bracket must rest in from the wires coming from the ceiling fan.
-
Page 11: Attaching The Fan Blades
Assembly - Hanging the Fan (continued) Attaching the fan blades Attaching the light kit fitter assembly □ Attach a blade (F) to blade bracket (L) using the decorative nuts (DD) and blade attachment screws (CC) provided. Insert CAUTION: To reduce the risk of electric shock, a blade attachment screw (CC) through a hole in the blade disconnect the electrical supply circuit to the fan before installing the light kit. - Page 12 Assembly - Attaching the Accessories Installing the bulbs and glass bowl WARNING: Do not overtighten when installing the shade into the light kit. Allow the shade to cool completely before removing. CAUTION: Over lamping the fan will result in the fan lights shutting down until the proper wattage of bulbs are installed.
- Page 13 Operating Your Fan and Remote Control Setting the code on the transmitter NOTE: The battery will weaken with age and should be replaced before leaking takes place as this will damage the remote control. Dispose of used battery properly and keep the battery out of the reach of children.
-
Page 14: Operation
Operating Your Fan and Remote Control 1. Fan button. - Press and release the button to turn the fan on or off. □ Press and hold the button for 5 seconds to enter the learning function. □ Fan on. The fan memory function will resume the speed set on the fan prior to the power being turned off. The LED bar will display the current settings for 5 seconds after the button is released. - Page 15 Operating Your Fan and Remote Control Timer □ Pressing the timer button will automatically turn fan and light (if light is on) off after 2, 4, or 8 hours. When you activate the timer mode, the LED to the left of the time above the clock will illuminate. Disables timer 5.
-
Page 16: Care And Cleaning
Care and Cleaning WARNING: Make sure the power is off before cleaning your fan. □ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling. □... - Page 17 Questions, problems, missing parts? Before returning to the store, call Home Depot Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
- Page 18 GRACIAS POR TU COMPRA Apreciamos la confianza que has depositado en Home Decorators Collection al comprar este ventilador de techo. Nos esforzamos para continuamente crear productos de calidad diseñados para mejorar tu hogar. Visítanos por Internet para ver nuestra línea completa de productos disponibles para las...
