Item #1000 xxx xxx
Model #68681, 68682, 68683,
P1
68684, 68685
ETL Model #68-ATRDC

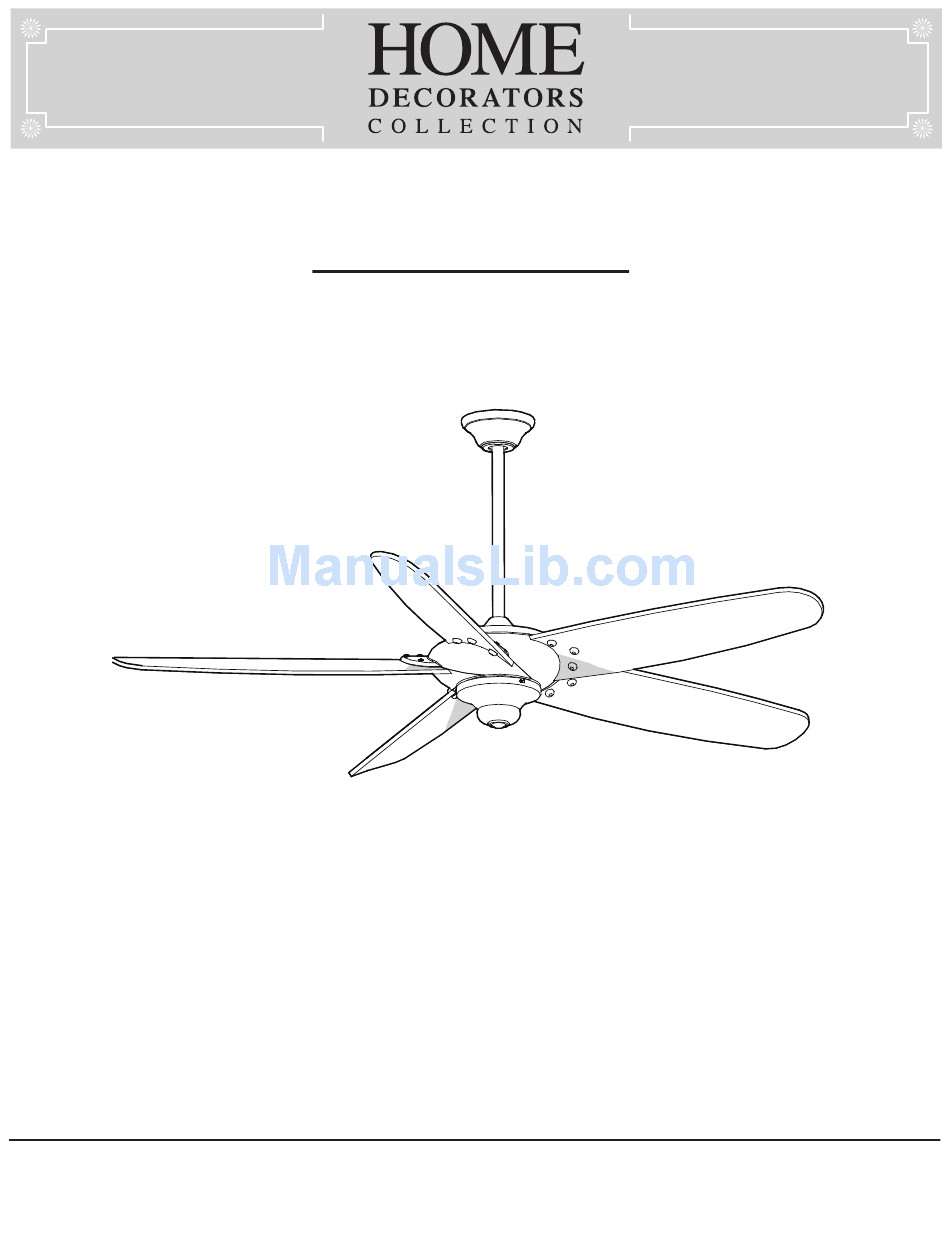

USE AND CARE GUIDE
ALTURA 68-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection 68681
Summary of Contents for Home Decorators Collection 68681
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..............2 Assembly ................7 Safety Information ............... 2 Operation ................12 Warranty ................3 Care and Cleaning ............. 14 Pre-Installation ..............3 Troubleshooting ..............14 Installation ................6 Safety Information READ AND SAVE THESE INSTRUCTIONS. WARNING: To reduce the risk of personal injury, do not bend the blade brackets (also referred to as flanges) during assembly or after installation. -
Page 3: Warranty
A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by law. -
Page 4: Tools Required
Pre-Installation (continued) TOOLS REQUIRED Wire Phillips Flat blade Adjustable Electrical cutter / screwdriver screwdriver wrench tape stripper Step ladder HARDWARE INCLUDED NOTE: Hardware should be packaged in a NOTE: Hardware not shown to actual size. blister pack. Part Description Quantity Blade attachment screws Plastic wire connecting nut Decorative nut... -
Page 5: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Slide-on mounting bracket Switch cup (inside canopy) Decorative motor collar cover Ball/downrod assembly Blade Canopy with canopy ring attached Switch cup adaptor Fan-motor assembly Transmitter (battery included) IMPORTANT: This product and/or components are governed by one or more of the following U.S. -
Page 6: Installation
Installation MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock NOTE: You may need a longer downrod to maintain or personal injury, mount to outlet box marked proper blade clearance when installing on a steep, sloped “Acceptable for fan support of 50 lbs. (22.7 kg) ceiling. - Page 7 Assembly - Standard Ceiling Mount Preparing for mounting Routing the wires □ □ Remove the canopy ring (L) from the canopy (C) by turning Route the wires exiting the top of the fan motor (D) into the ring to the right until it unlocks. the decorative motor collar cover (F) and through the □...
- Page 8 Assembly - Hanging the Fan Attaching the fan to the electrical Hanging the fan □ WARNING: To reduce the risk fo fire, electric shock or personal Carefully lift the fan motor assembly (D) up to the mounting injury, mount to outlet box marked “acceptable for fan support bracket (A).
-
Page 9: Assembly
Assembly - Hanging the Fan (continued) Making the electrical connection Outlet box WARNING: Each wire not supplied with this fan is designed to in the ceiling accept up to one 12-gauge house wire and two wires from the (OO) fan. If you have larger than 12-gauge house wiring or more than one house wire to connect to the fan wiring, consult an electrician for the proper size wire nuts to use. - Page 10 Assembly - Hanging the Fan (continued) Mounting the fan-motor assembly Wrapping the extra wire (standard mount) WARNING: When using the standard ball/downrod mounting, the NOTE: Follow this step ONLY if you did not cut the extra length off tab in the ring at the bottom of the mounting bracket must rest in from the wires coming from the ceiling fan.
-
Page 11: Attaching The Fan Blades
Assembly - Hanging the Fan (continued) Attaching the fan blades □ Attach blade (G) to blade bracket (J) using the decorative nuts (DD) and blade attachment screws (CC) provided. Insert a blade attachment screw (CC) through a hole in the blade (G) and the blade bracket (J) and into the decorative nut (DD). - Page 12 Setting the Code and Learning Process Setting the light function on your remote NOTE: The battery will weaken with age and should be replaced before leaking takes place as this will damage the remote control. Dispose of used battery properly and keep the battery out of the reach of children.
-
Page 13: Operation
Operating Your Fan and Remote Control 1. Fan button. - Press and release the button to turn the fan on or off. □ Press and hold the button for 5 seconds to enter the learning function. □ Fan on. The fan memory function will resume the speed set on the fan prior to the power being turned off. The LED bar will display the current settings for 5 seconds after the button is released. -
Page 14: Operating Your Fan And Remote Control
Operating Your Fan and Remote Control Timer □ Pressing the timer button will automatically turn fan and light (if light is on) off after 2, 4, or 8 hours. When you activate the timer mode, the LED to the left of the time above the clock will illuminate. Disables timer 5. -
Page 15: Care And Cleaning
Repeat for each blade. Any measurement deviation should be within 1/8 in. Run the fan for ten minutes. If the fan continues to wobble please contact Home Decorators Collection Customer Service and a balacing kit will be sent to you at no charge. - Page 16 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
