We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
USE AND CARE GUIDE

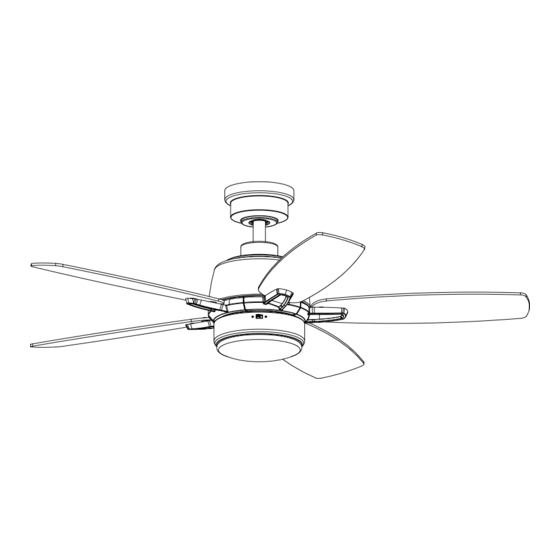

FAWNDALE 46-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
To view an instructional video on how to install this product:
Para ver un video instructivo sobre cómo instalar este producto:
1. Visita www.homedepot.com e ingresa, en el campo de búsqueda, el número de artículo
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
o modelo que aparece en la esquina superior derecha de la portada de este manual de
instrucciones.
right corner of the cover of this instruction manual, in the search eld.
2. Haz clic sobre tu producto, en la lista de resultados de la búsqueda, y sobre el enlace de
2. Click on your product from the list of search results and click on the video link in the
video en la sección "Product Overview" (Información General del Producto).
"Product Overview" section.
improvement needs. Thank you for choosing Home Decorators Collection!
THANK YOU
Item #1005 819 911
Model #52021
UL model #46-FAWNRC
Advertisement
Related Manuals for Home Decorators Collection FAWNDALE 1005 819 911
Summary of Contents for Home Decorators Collection FAWNDALE 1005 819 911
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..............2 Assembly ................7 Safety Information ............... 2 Operation ................13 Warranty ................3 Care and Cleaning ............. 14 Pre-Installation ..............3 Troubleshooting ..............14 Installation ................6 Safety Information READ AND SAVE THESE INSTRUCTIONS To reduce the risk of electric shock, ensure the electricity has been WARNING: To reduce the risk of personal injury, do not turned off at the circuit breaker or fuse box before you begin. -
Page 3: Warranty
Warranty The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a lifetime after the date of purchase by the original purchaser. The supplier warrants that the light kit, excluding any glass, to be free from defects in workmanship and material at the time of shipment from the factory for a period of five years after the date of purchase by the original purchaser. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Part Description Quantity Hanger pin Blade screws Locking pin Extra blade bracket screw Wire connecting nut...
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Slide-on mounting bracket (inside canopy) Light kit pan Ball/downrod assembly Light kit fitter assembly Canopy Glass shade Decorative motor collar cover Receiver Fan-motor assembly Transmitter Blade bracket (with pre-installed screws) Lead wire Blade Battery...
-
Page 6: Installation
Installation MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock NOTE: You may need a longer downrod to maintain or personal injury, mount to an outlet box marked proper blade clearance when installing on a steep, sloped “Acceptable for fan support of 35 lbs (15.9 kg) or less,” ceiling. -
Page 7: Assembly
Assembly - Standard Ceiling Mount Preparing for standard mounting Routing the wires □ □ Remove the canopy bottom cover (JJ) from the canopy Route the wires exiting the top of the fan motor assembly (E) (C) by turning the bottom cover counterclockwise until it through the decorative motor collar cover (D) and then the unlocks. - Page 8 Assembly - Hanging the Fan Attaching the fan to the electrical WARNING: To reduce the risk of fire, electric shock or personal injury, mount to an outlet box marked “Acceptable for fan support of 35 lbs (15.9 kg) or less,” and use the screws provided with the outlet box.
- Page 9 Assembly - Hanging the Fan (continued) Setting the code on the remote Installing the receiver control and receiver WARNING: To reduce the risk of fire or electric shock, remember NOTE: The frequencies on your receiver and hand unit have to disconnect power. The electrical wiring must meet all local been preset at the factory.
- Page 10 Assembly - Hanging the Fan (continued) Wiring the receiver to the Wiring the fan to the receiver household wiring WARNING: To avoid possible electrical shock, turn the NOTE: The fan comes with 12 in. lead wires for use with electricity off at the main fuse box before wiring. If you the provided 4.5 in.
- Page 11 Assembly - Hanging the Fan (continued) Mounting the fan-motor assembly (standard mount) □ Align the locking slots of the canopy (C) with the two screws (HH) and alignment post (KK) in the mounting bracket (A). □ Push up the canopy (C) and turn clockwise until the alignment post (KK) engage to the round hole and the screws (HH) engage to the key slots.
- Page 12 Assembly - Attaching the Lights Installing the light kit pan IMPORTANT: It is critical to attach the light kit pan using the quick connector. The fan will not operate unless the light kit pan is connected to the fan. □ Remove one screw (RR) from the black bracket below the fan motor assembly (E), and loosen but do not remove the other two screws.
-
Page 13: Operation
Assembly - Attaching the Accessories Mounting the remote control holder Screw cover plate NOTE: Screw wall anchors are included for extra support. The included screws are designed to screw easily into the wall. If you would like a more permanent or secure hold, install the wall anchors prior to attaching the wall cradle to the wall. -
Page 14: Care And Cleaning
Care and Cleaning WARNING: Make sure the power is off before cleaning your fan. □ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling. □... - Page 15 Questions, problems, missing parts? Before returning to the store, call Home Depot Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday. 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
