Hioki P2000 Instruction Manual

P2000
DC HIGH VOLTAGE PROBE
Instruction Manual
Dec. 2021 Edition 1
P2000A961-00 21-12H
www.hioki.com/

Warranty

Malfunctions occurring under conditions of normal use in conformity
with the Instruction Manual and Product Precautionary Markings will
be repaired free of charge. This warranty is valid for a period of three
(3) years from the date of purchase. Please contact the distributor
from which you purchased the product for further information on
warranty provisions.

Introduction

Thank you for choosing the Hioki P2000 DC High Voltage Probe. To
ensure your ability to get the most out of this device over the long
term, please read this manual carefully and keep it available for
future reference.
Carefully read the separate document entitled "Operating
Precautions" before use.

Latest edition of instruction manual

The contents of this manual are subject to change,
for example as a result of product improvements or
changes to specifications.
The latest edition can be downloaded from Hioki's
website.
https://www.hioki.com/global/support/download

Intended audience

This manual has been written for use by individuals who use the
product or provide information about how to use the product. In
explaining how to use the product, it assumes electrical knowledge
(equivalent of the knowledge possessed by a graduate of an
electrical program at a technical high school).
Shipping Precautions
Store the device packaging material after opening the device. Use
the original packaging when shipping the device.

Overview

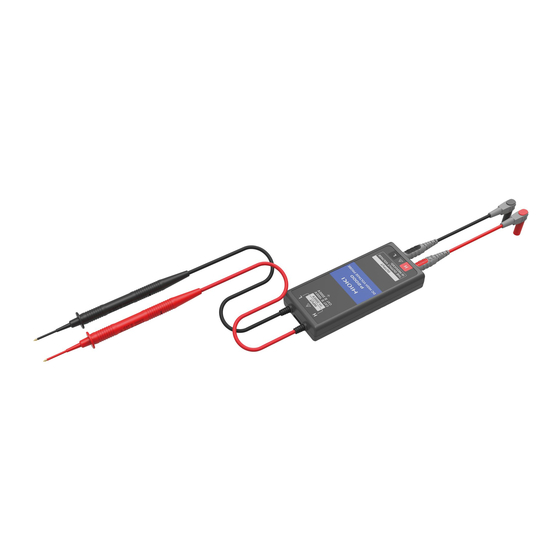

This device is designed to safely measure DC voltages of up to 2000 V DC (CAT III
2000 V). When it is connected to an instrument's input terminals, the voltage of the
object under measurement is reduced prior to input, allowing safe measurement of
voltages of up to 2000 V DC in equipment such as solar panels.

Symbols and abbreviations

Safety notations

EN
This manual classifies seriousness of risks and hazard levels as
described below.
Indicates an imminently hazardous situation that,
DANGER
if not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation that,
WARNING if not avoided, could result in death or serious
injury.
Indicates a potentially hazardous situation that,
CAUTION
if not avoided, could result in minor or moderate
injury.
Indicates potential risks of damage to the
NOTICE
supported product (or to other property).
Indicates the presence of a hazard caused by a
strong magnet.
Indicates that the product could interfere with the
proper operation of electronic medical devices
such as pacemakers.
Indicates a prohibited action.
Indicates a mandatory action.
Symbols on the device
Indicates the presence of a potential hazard. For more
information about locations where this symbol appears
on device components, see the "Usage Notes" section,
warning messages listed at the beginning of operating
instructions, and the accompanying document entitled
"Operating Precautions".
Indicates direct current (DC).
Indicates the grounding terminal.
Symbols for various standards
Indicates that the product is subject to the Waste
Electrical and Electronic Equipment (WEEE)
Directive in EU member nations.
Indicates that the product complies with standards
imposed by EU directives.
Others
* Indicates additional information is described below.
HIOKI P2000A
