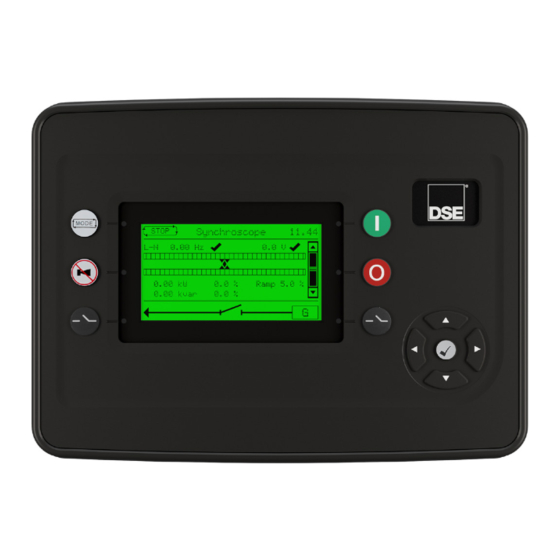

DSEG8600 Installation Instructions
This document details the installation and operation requirements of
the DSEG8600 module and is part of the DSEGenset® range of
products.
The DSEG8600 module contains two software applications, Multi Set
(MS) and Single Set (SS).
This allows to convert the DSEG8600 module into an Multi Set (MS)
for multiple generator synchronising application, by selection in the
Application menu.

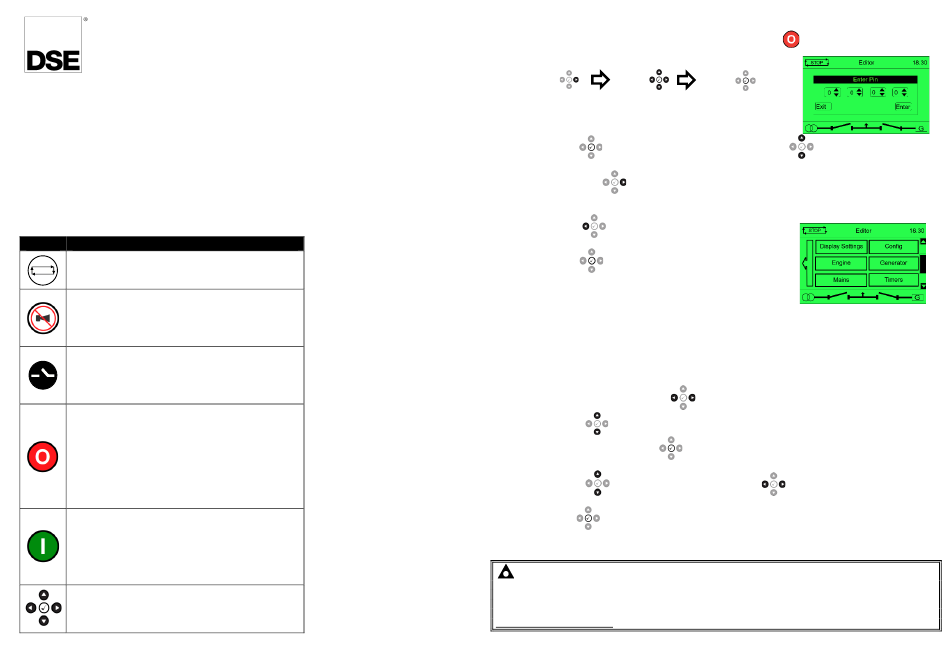

CONTROL BUTTONS

Icon Description
Mode Button
In the G8600 the mode button is used to select Auto Mode,
DE
Test Mode or Manual Mode.
Alarm Mute / Lamp Test
This button silences the audible alarm in the controller, de-
activates the Audible Alarm output (if configured) and
illuminates all the LEDs on the module's facia as a lamp test
function.
RHS Breaker Button
Transfer to generator / electrical trip reset
LHS Breaker Button
Transfer to Mains
Stop / Reset Mode
This button places the module into its Stop/Reset Mode.
This clears any alarm conditions for which the triggering
criteria has been removed.
If the engine is running and the module is put into
Stop/Reset Mode, the module automatically instructs the
generator off load.
The fuel supply de-energises and the engine comes to a
standstill. Should any form of start signal be present when in
Stop/Reset Mode the generator remains at rest.
Start
This button is only active in the Stop/Reset Mode,
Manual Mode
Pressing the Start button in Stop/Reset Mode powers up the
engine's ECU but does not start the engine.
Pressing the Start button in Manual Mode starts the
generator and runs it off load in Manual Mode
Menu Navigation
Used for navigating the instrumentation, event log and
configuration screens.
053-256

ACCESSING THE MAIN CONFIGURATION EDITOR

ISSUE 1
•
Ensure the generator bus is dead and the module is in STOP mode by
pressing the (Stop/Reset) button.
•
Navigate to Editor page:
Home
Page
Once selected, the page remains on the LCD display until the user selects a
different page, or after an extended period of inactivity (LCD Page Timer), the
module reverts to the home display.
•
Press the Tick
correct value.
•
Press the Next Page
shows as '#' for security.
•
Repeat this process for the other digits of the PIN number. Press the
Previous Page
digits.
•
When the Tick
the PIN is checked for validity. If the number is not correct, the PIN must
be re-entered.
•
If the PIN has been successfully entered (or the module PIN has not been
enabled), the editor is displayed

EDITING A PARAMETER

•
Enter the editor as described above.
•
Press the Next Page or Previous Page
•
Press the Scroll
•
To edit the parameter, press the Tick
editing.
•
Press the Scroll
required value.
•
Press the Tick
saved.
NOTE: If the editor is left inactive for the duration of the LCD Page Timer, it is automatically exited to
ensure security. The PIN number is automatically reset when the editor is exited (manually or automatically) to
ensure security. Comprehensive module configuration is possible using the DSE Configuration Suite PC
Software, refer to DSE
publication 057-322 DSE8600 Configuration Suite PC Software Manual available from
www.deepseaelectronics.com.
Main Editor
Page Page
button, the first '#' changes to '0'. Press the Scroll
button when the first digit is correctly entered. The digit previously entered now
button to move back to adjust one of the previous
button is pressed after editing the final PIN digit,
buttons to cycle to the section to view/change.
buttons to select the parameter to view/change within the currently selected section.
button to enter edit mode. The parameter is highlighted to indicate
buttons or Next Page or Previous Page
button to save the value. The parameter ceases flashing to indicate that it has been
buttons to adjust it to the
buttons to change the parameter to the
