DSE DSE5510 Operating Manual

Autostart control module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
COMPLEX SOLUTIONS
MADE SIMPLE
®
DSEPOWER
DEEP SEA ELECTRONICS PLC
DSE5510

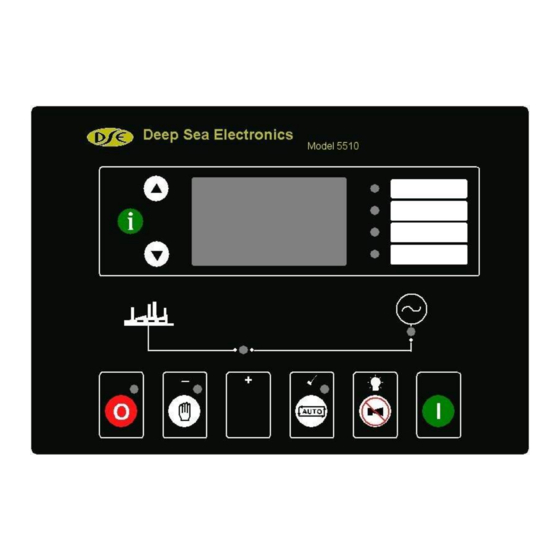

AUTOSTART CONTROL MODULE

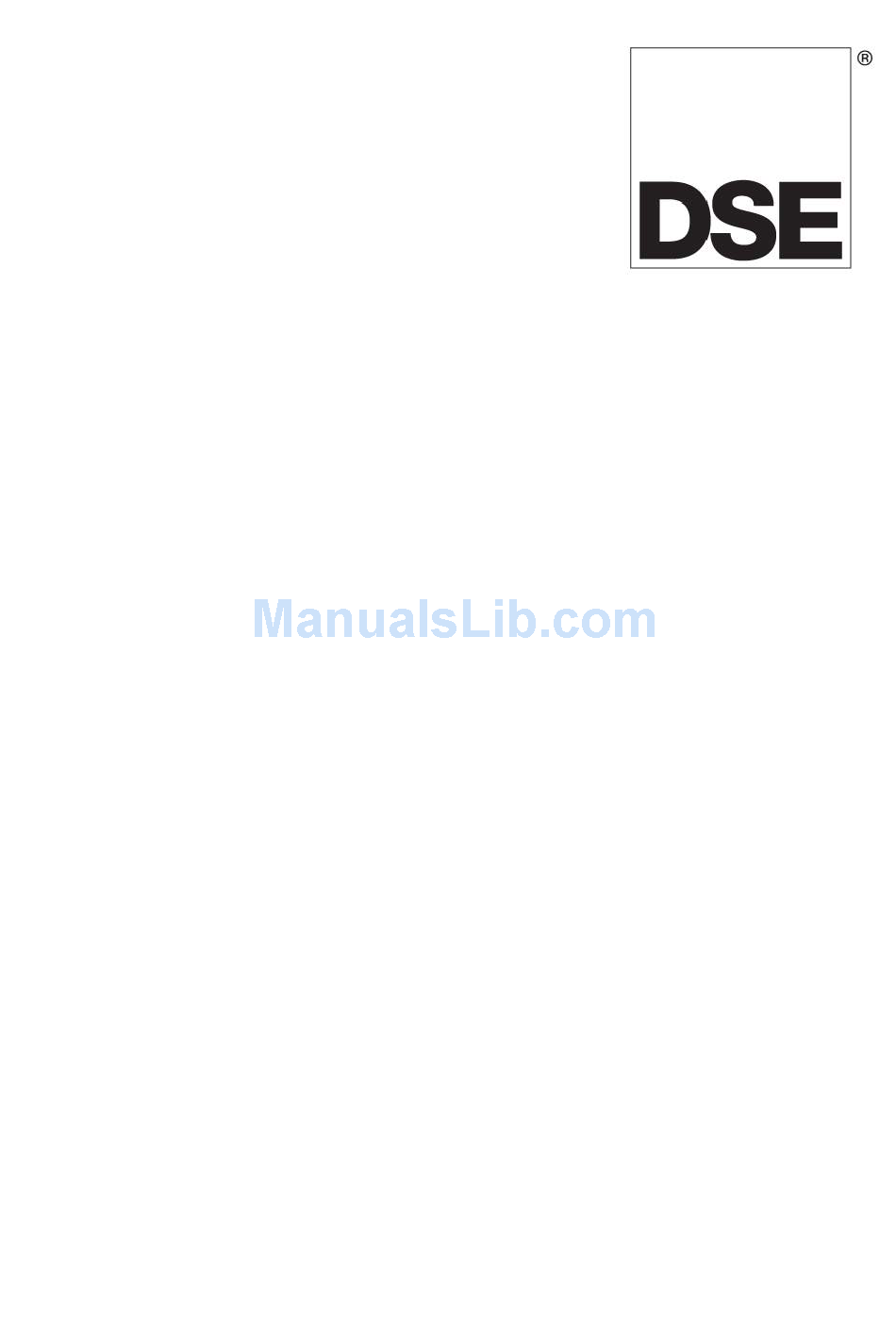

OPERATING MANUAL
