- Page 1 MS 2512 v.1.1 MS 13,8V/2A Buffer switch mode power supply module Edition: 3 from 16.09.2013 Supersedes the edition: 2 from 16.12.2011...
- Page 2 MS2512 Features: • • DC 13,8V/2A uninterruptible power supply LED indication • • high efficiency 83% protections: • • battery charging and maintenance control SCP short-circuit protection • • battery output full protection against short- OLP overload protection •...

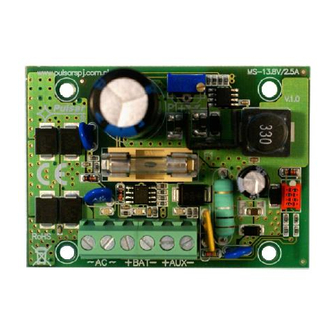

- Page 3 MS2512 1.3. Description of components and connectors Table 1. Elements of the PSU module pcb (refer to fig. 2). Element no. Description potentiometer, voltage adjustment DC fuse in the battery circuit Connectors: +BAT- DC supply output of the battery...
- Page 4 MS2512 1.4. Specifications: - electrical parameters (tab.3) - mechanical parameters (tab.4) - operating parameters (tab.5) Electrical parameters (tab. 3). Mains supply 20V÷22V AC 50VA min. (np. AWT5161820, AWT037 ) Current up to 2,5A Power frequency 50Hz Power 34 W...
- Page 5 MS2512 As the PSU is designed for a continuous operation and is not equipped with a power-switch, therefore an appropriate overload protection shall be guaranteed in the power supply circuit. Moreover, the user shall be informed about the method of unplugging (most frequently through separating and assigning an appropriate fuse in the fuse-box).
- Page 6 GENERAL WARRANTY CONDITIONS 1. Pulsar K. Bogusz Sp.j. (the manufacturer) grants a five-years warranty for the equipment, counted from the device’s production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (the selection is at the manufacturer’s discretion) if the malfunction is due to the manufacturer, includes manufacturing or material defects,...
