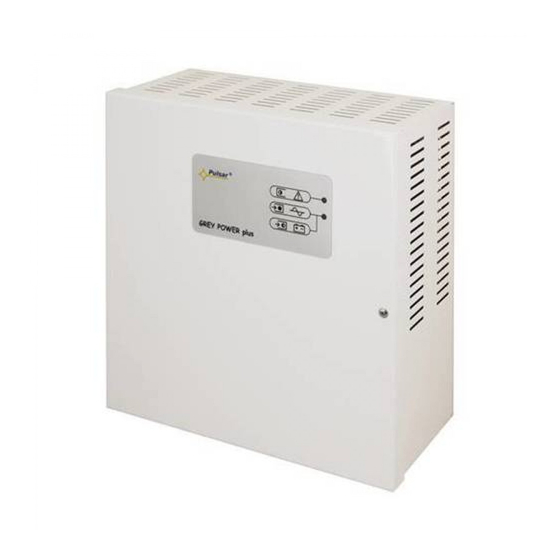

AWZ 222
v.2.1
AWZ 13,8V/2A/17Ah/LM
Linear, Buffer Power Supply Unit
EN
th
Edition: 3nd (24
Feb 2012)
th
Supercedes the 2st (17
Mar 2009) edition

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AWZ 222 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pulsar AWZ 222

Summary of Contents for Pulsar AWZ 222

  • Page 1 AWZ 222 v.2.1 AWZ 13,8V/2A/17Ah/LM Linear, Buffer Power Supply Unit Edition: 3nd (24 Feb 2012) Supercedes the 2st (17 Mar 2009) edition...

  • Page 2: Table Of Contents

    AWZ222 Features: • 13,8VDC/2A uninterrupted supply • STOP facility for manual disconnection during • fitting battery: 17Ah/12V battery-assisted operation • LED indication • mains supply 230VAC • acoustic indication • linear voltage regulator • BS technical output of AC power collapse •...

  • Page 3: Principle Of Operation

    1.2 Principle of operation. AWZ 222 is a stabilized transformer PSU with high factor of voltage stabilization. Mains supply ~230V is reduced by a transformer and then rectified by the system of rectifiers and a low pass filter. DC output voltage is gained in the linear regulator and it is adjusted according to the PSU operation type (charging phase and battery maintenance).
  • Page 4 AWZ222 START button (launching the PSU from a battery) AC pins: Z1, Z2 - configuration of time lag for AC failure indication • , Z2= time lag T= 0s • , Z2= time lag T= 5min • , Z2= time lag T= 1h •...

  • Page 5: Specifications

    AWZ222 Table 2. Elements of the PSU (see Fig. 3.) Element no. Description Isolation transformer Pcb of the PSU (Tab. 1, Fig. 2) fuse in the battery circuit (230V/AC) MAIN [4], [5] L-N 230V/AC power supply connector, PE protection connector Battery connectors +BAT = red, - BAT = black Fig.
  • Page 6 AWZ222 Electrical specifications (tab. 3) PSU type A, grade 1 Mains supply 230V/AC (-15%/+10%) Power frequency 50Hz PSU power 28W max. Current consumption up to 0,29 A Output voltage 11,0V÷13,8Vdc – buffer operation 10,0V÷13,8Vdc – battery-assisted operation Voltage adjustment range 11,0 V÷15,0 V...

  • Page 7: Installation

    AWZ222 Operating specifications (tab.6). Operating temperature 5ºC...+40ºC Storage temperature -20ºC...+60ºC Relative humidity 20%...90%, without condensation Vibrations during operation unacceptable Impulse waves during operation unacceptable Direct insolation unacceptable Vibrations and impulse waves during transport PN-83/T-42106 Wykres Uwy(Io) 13,5 12,5 11,5 I[A] Fig.
  • Page 8 AWZ222 3. Connect the power cables (~230V) to AC 230V clips of the transformer. Connect the ground wire to the clip marked by the earth symbol PE. Use a three-core cable (with a yellow and green PE protection wire) to make the connection.

  • Page 9: Operating Status Indication

    AWZ222 Fig. 5. Battery mounting procedure. 3. Operating status indication. The power supply unit features LED and acoustic status indication. PSU status can be remote-controlled by two technical outputs. 3.1 LED indication RED LED: • twinkling – indicates failure status (Tab. 7) GREEN LED: •...

  • Page 10: Operation And Use

    AWZ222 over voltage protection damaged voltage regulator high-voltage Uout > 17.0V diode is illuminated Table 7. 3.2 Acoustic indication. Emergency situations are acoustically indicated by a buzzer. The frequency and the number of signals depend on a fault type (Tab.8). The acoustic indication is off after removing the ZB jumper.

  • Page 11: Disconnection Of A Discharged Battery

    AWZ222 4.2 Disconnection of a discharged battery. The PSU is equipped with the discharged battery disconnection system and discharged battery indication. During the battery-assisted operation, reducing voltage below ~10V at the battery terminals will trigger a countdown to the battery disconnection. The disconnection time period is Z3, Z4 jumper selectable. (Fig.8) Fig.
  • Page 12 GENERAL WARRANTY CONDITIONS 1. Pulsar K. Bogusz Sp.j. (the manufacturer) grants a two-year warranty for the equipment, starting from the initial product date of purchase placed on the receipt. 2. If a purchase proof is missing, a three-year warranty period is counted from the device’s production date.
  • Page 13 AWZ222 Pulsar K.Bogusz Sp.j. Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 e-mail: biuro@pulsar.pl, sales@pulsar.pl http:// www.pulsar.pl, www.zasilacze.pl...
