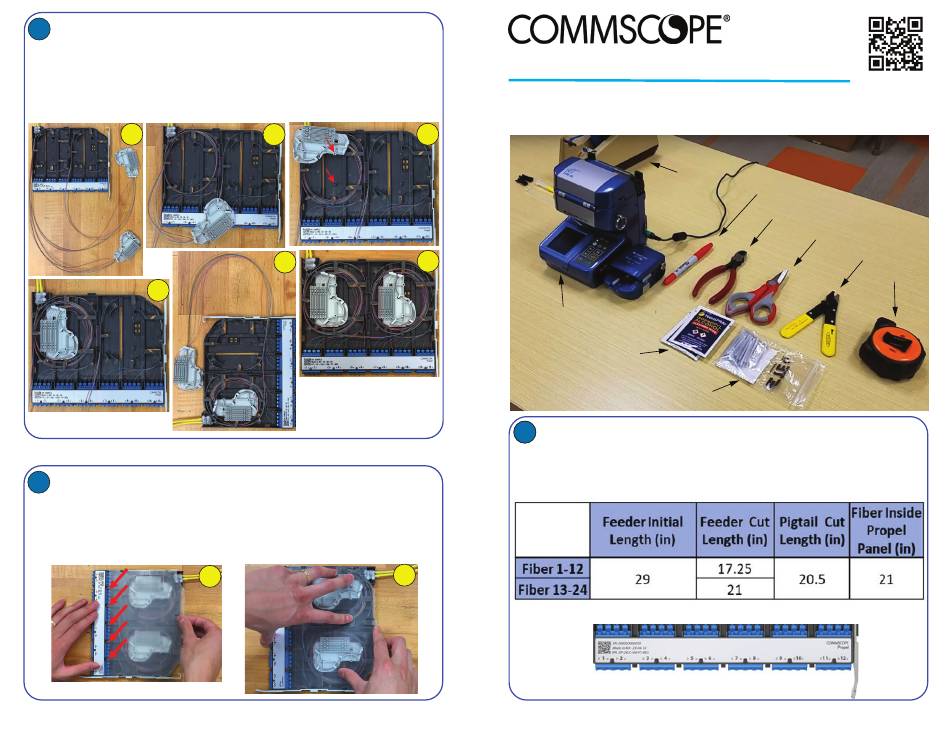

CommScope TC-96370-IP Quick Start

Route fibers into base

10
(a) Position spools to prepare for routing. (b) Route pigtail and feeder fibers
corresponding to fibers 1-12 counterclockwise starting along the outer half of
the cassette and work inwards with each consecutive loop. (c) Line up the pegs
on the cassette base with the mounting holes on the spool to finish routing.
(d) Insert spool into base and ensure all fibers are under retaining fingers.
(e) Position spool of fiber 13-24 as shown to prepare for routing. Ensure fibers
are tucked under retaining feature (f) Repeat steps a-d until routing is completed.
a
d

Apply Cover

11
(a) Line the cover with the slots near the front of the cassette base. (b) Lay
the cover flat on the base and ensure all the tabs on the side of the cover
and bases are lined up. With one hand holding the cassette base, push cover
forward with other hand to engage tabs. Double check the rear tab is
also engaged to prevent the cover from sliding off.
Page 4 of 4
b
e
a
TC-96370-IP · Rev B · August, 2023
12 Port Single Fiber Splice Cassette for
c
f
FIBER FUSION SPLICER
AND CLEAVER

Prepare cable for single fiber splice cassette installation

1
Group feeder fibers into two groups (1-12 and 13-24), then refer to Table 1 for
Feeder and Pigtail Lengths. "Feeder Strip Length" is the recommended length
of fiber to bring into the cassette. "Feeder Cut Length" and "Pigtail Cut Length"
is measured from the front of the cassette and is the recommended cut length
for the initial splice. A maximum of (1) rework is allowed per splice.
b
29003-A 660106100 Rev A
Propel Panel

Tools and Materials Required

TAPE
MARKER
SMALL SIDE CUTTER
.
ISOPROPYL
ALCOHOL
INCLUDED:
SPLICE PROTECTORS
(40 mm LONG)
and CABLE TIES
(30 - 40 mm LONG)
Table 1: Pigtail and Feeder Lengths
12 Port Cassette, shown above
© 2023, CommScope, Inc. All Rights Reserved.
Quick
Start
PROPEL
PRODUCT PAGE
QR CODE
FIBER SCISSORS
STRIPPER
TAPE
MEASURE
Page 1 of 4
