- Page 1 Packing Check List Introduction Installation Instructions Antenna Mounting Precautions Cable Routing Safety Revision 1.0...
- Page 2 Item Description Quantity Antenna only Adapter Base Seal L-Bracket Econo bracket stainless steel M6 x 90mm U-Bolts stainless steel M6 Nuts/Nylock nuts stainless steel M6 Flat Washers stainless steel Locking nut M4 Allen Cap Screws Allen key *SMA Grip Extender *Antenna dependent Revision 1.0...
- Page 3 Antenna Unit* Adapter Base and Seal Stainless Steel Bracket Assembly Locking Nut, Allen Cap Screw and Allen Key SMA Grip Extender Antenna appearance and connections may vary depending on model Revision 1.0...
- Page 4 A-BRKT-037: Marine flat mount antenna bracket (stainless steel) A-BRKT-038: Marine ratchet rail mount antenna bracket (stainless steel) A-BRKT-039: Heavy duty marine mount antenna bracket (stainless steel) Revision 1.0...
- Page 5 Masonry Drill Bit Impact Drilling Machine Screwdriver – Cross Slot/Philips Hammer Safety Goggles Revision 1.0...

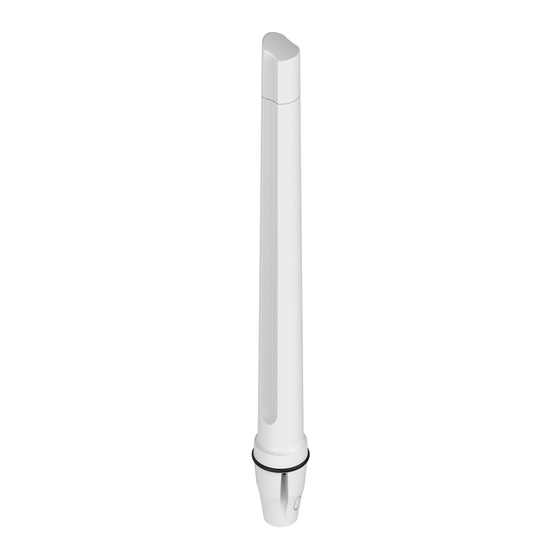

- Page 6 This User Guide provides information on the installation instructions Omni- directional marine antennas in the MORAY enclosure series. Pole mount with supplied L-Bracket Attach the L-Bracket to the antenna first using the provided screws and washers before mounting to a pole. Exploded View Marine mount with optional bracket using the provided allen key...
- Page 7 Landmarks Ave Suite 104, Mansfield, 81677 München Samrand, 0157 TX 76063 Germany South Africa Tel: +1 817 533-8130 Tel: +49 89 2080 265 38 Tel: +27 12 657 0050 sales-us@poynting.tech Mob.: +49 176 529 733 50 info@poynting.tech sales-europe@poynting.tech Revision 1.0...
- Page 8 • Open the antenna package and confirm that all listed components are available. • Consider the antenna mounting precautions below before installation. Straight cable entry Slide the RF cable through the bracket pipe, seal, and adapter base. Fasten the adapter base to the antenna using the provided allen key.
- Page 9 • Place the antenna at the highest point of the vessel and ensure that there are no obstructions surrounding the antenna. • In order to avoid communication interference, ensure that the antenna is placed at least 0.5m away from other antennas and metal objects.
- Page 10 • Never pull on the cable connectors; pull only on the cable. • Never run cables in a manner that interferes with the driver's ability to safely operate the vehicle. • Tighten the connectors and ensure that the cables don’t rattle loose. •...
- Page 11 If the antenna assembly starts to fall, get away from it and let it fall to avoid harming yourself. • When drilling remember: 1. Use safety goggles when drilling the holes. 2. Avoid using bits that are dull, bent or damaged.
- Page 12 Revision 1.0...
